Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

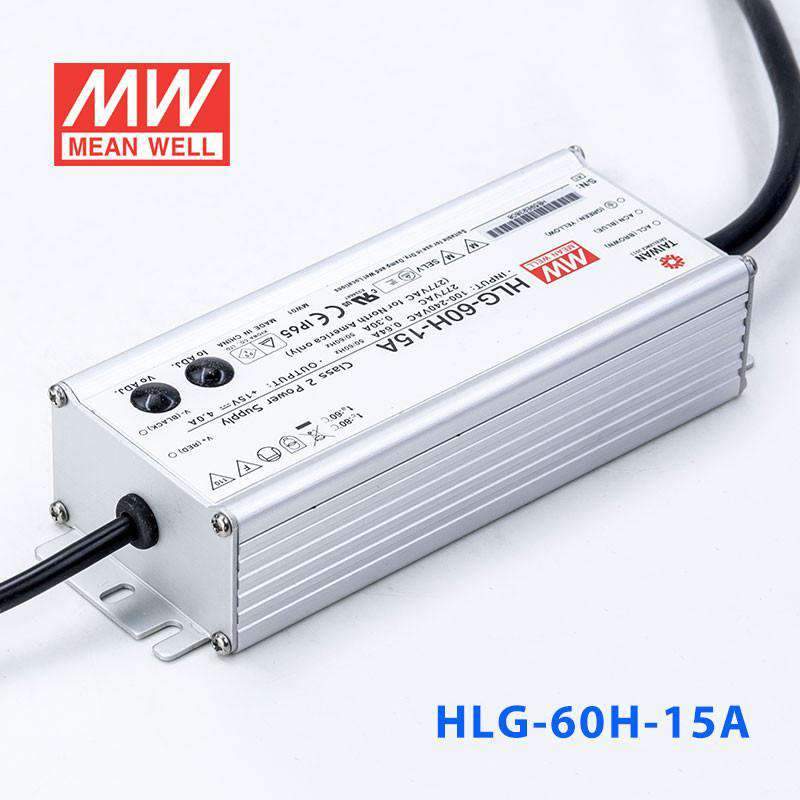

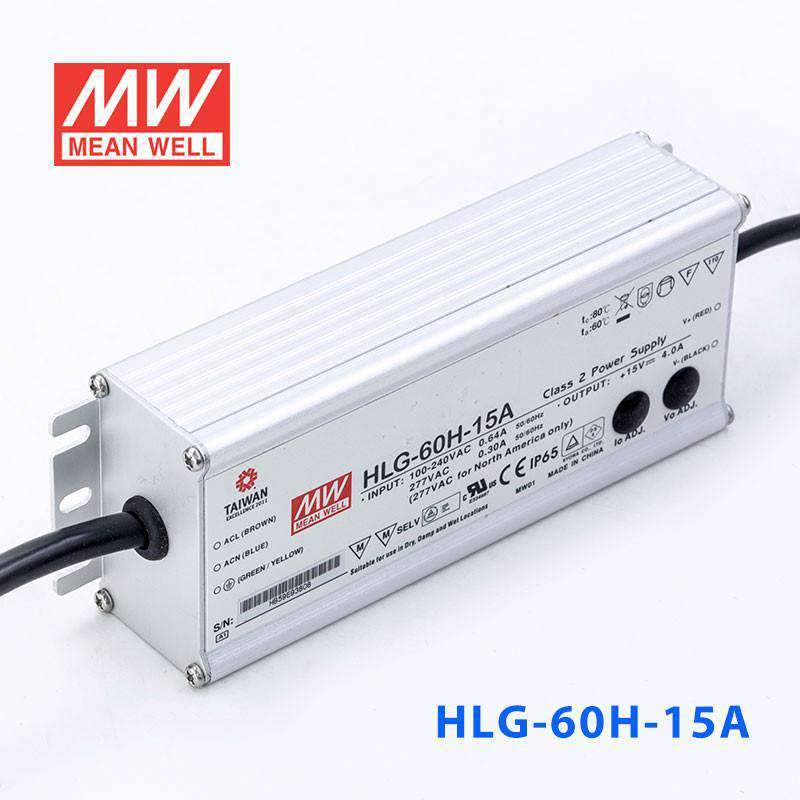

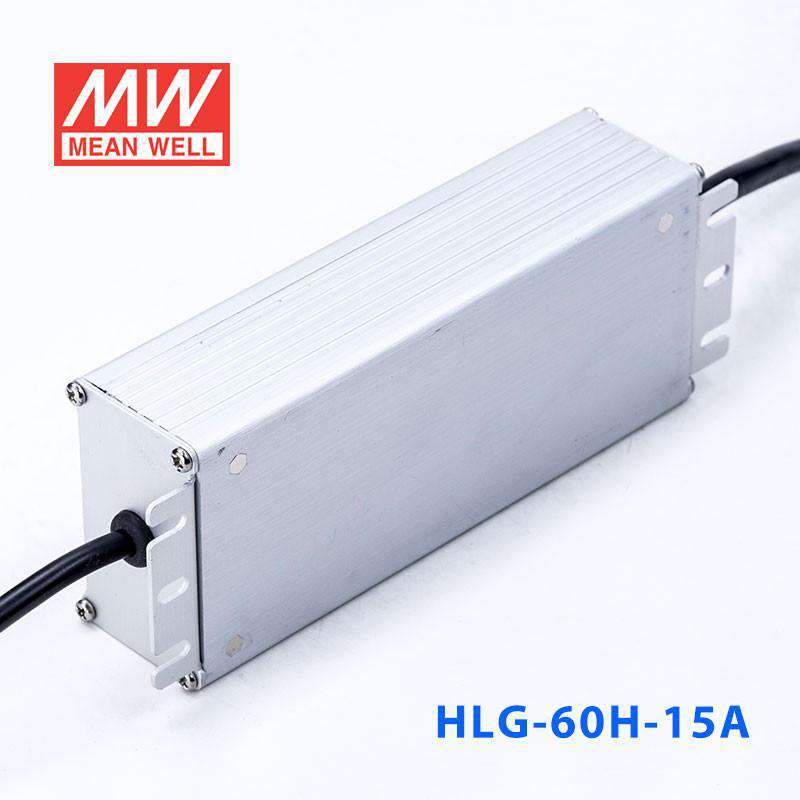

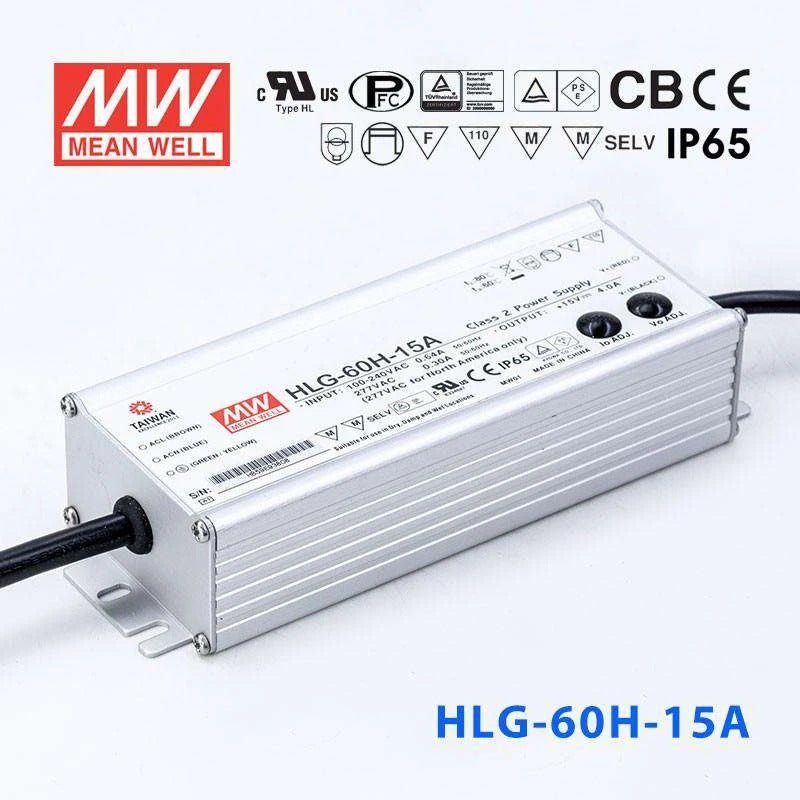

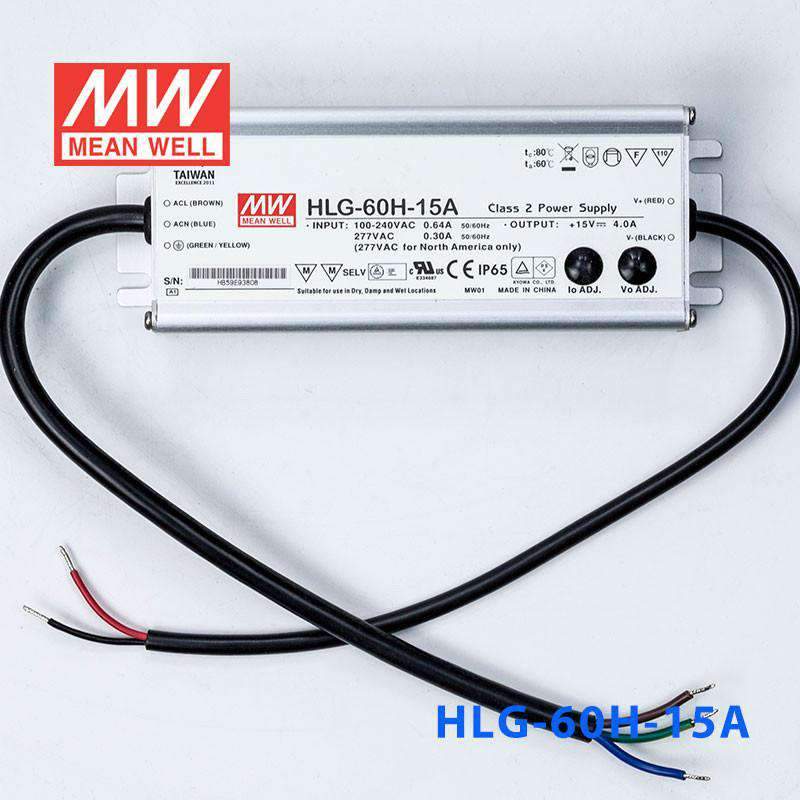

Mean Well HLG-60H-15A Power Supply 60W 15V - Adjustable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-15A to power 15V LED strips with fine voltage tuning?
Yes. The HLG-60H-15A delivers 60W at 15V and includes a built-in potentiometer for adjusting the output voltage and current. This lets you trim the voltage to match your specific 15V LED strip's optimal operating point, which can improve colour consistency and extend strip life.
Is the HLG-60H-15A suitable for 15V LED accent lighting in a retail display?
Yes. At 60W it can power modest accent lighting runs, and the adjustable output allows precise brightness matching across display zones without external dimmers. The compact 171 × 61.5 × 36.8 mm form factor fits inside standard fixture housings or display plinths.
Can the HLG-60H-15A power 15V LED light boxes for indoor signage?
Yes. The 60W output at 15V with up to 4A of current suits small to medium light boxes and backlit sign panels. The adjustable output lets you lower the drive level if the sign only needs partial power, reducing heat and extending component life inside the enclosure.
How many meters of 15V LED strip can the HLG-60H-15A support?
It depends on the strip's wattage per meter. The HLG-60H-15A provides up to 60W at 15V. If your strip uses 12W/m, you could power up to 5 meters (60W / 12W per meter = 5m). Check your strip's rated power per meter and keep the combined load at or below 60W.
Can the HLG-60H-15A be used in a damp indoor location like a bathroom soffit?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, which is sufficient for covered damp locations such as bathroom soffits, kitchen canopies, or covered porches. For fully exposed outdoor or submersion-prone locations, consider the IP67-rated HLG-60H-15 or HLG-60H-15B.
