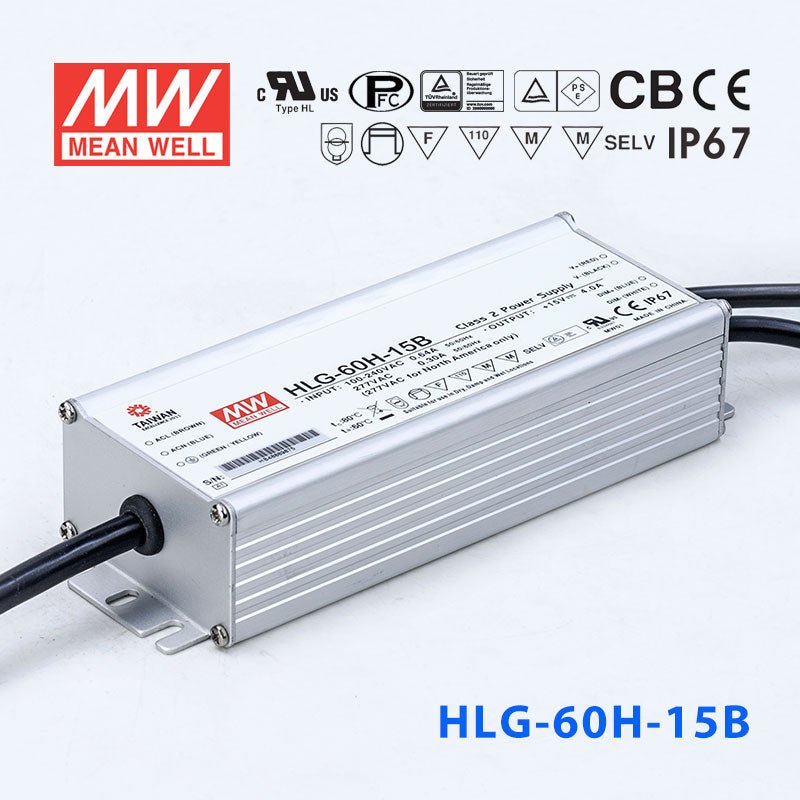

Mean Well HLG-60H-15AB Power Supply 60W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-15AB Power Supply 60W 15V - Adjustable and Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-15AB to power dimmable 15V LED strip lighting?
Yes. The HLG-60H-15AB delivers 60W at 15V and includes both an adjustable output and a dimming interface. You can trim the voltage with the built-in potentiometer and control brightness via a 1-10V or PWM dimming signal, giving full flexibility for 15V LED strip installations.
Is the HLG-60H-15AB a good choice for dimmable 15V LED shelf or display case lighting?
Yes. At 60W it handles moderate shelf lighting runs, and the combination of adjustable output and dimming input lets you set a precise baseline voltage and then dim from a wall controller or automation system. The compact 171 × 61.5 × 36.8 mm size fits inside most cabinetry or ceiling recesses.
Can the HLG-60H-15AB drive 15V LED modules in a small illuminated sign with dimming?
Yes, provided the total load stays within 60W. The adjustable output ensures the voltage matches your module string exactly, and the dimming input allows scheduled brightness changes for day/night sign operation. The constant-current mode with a 9-15V CC range keeps the output stable across varying loads.
How many meters of 15V LED strip can the HLG-60H-15AB handle?
That depends on your strip's rated power per meter. The HLG-60H-15AB supplies up to 60W at 15V. For example, if your strip draws 8W/m, you could run up to 7.5 meters (60W / 8W per meter = 7.5m). Always check your strip's rated power per meter and keep the total load at or below 60W.
Is the HLG-60H-15AB suitable for sheltered outdoor installations?
Yes. The IP65 water-resistant rating protects against dust ingress and low-pressure water jets, so covered patios, canopies, and ventilated outdoor enclosures are suitable mounting locations. For fully exposed rain or submersion-prone areas, the IP67-rated HLG-60H-15B offers higher water protection.
