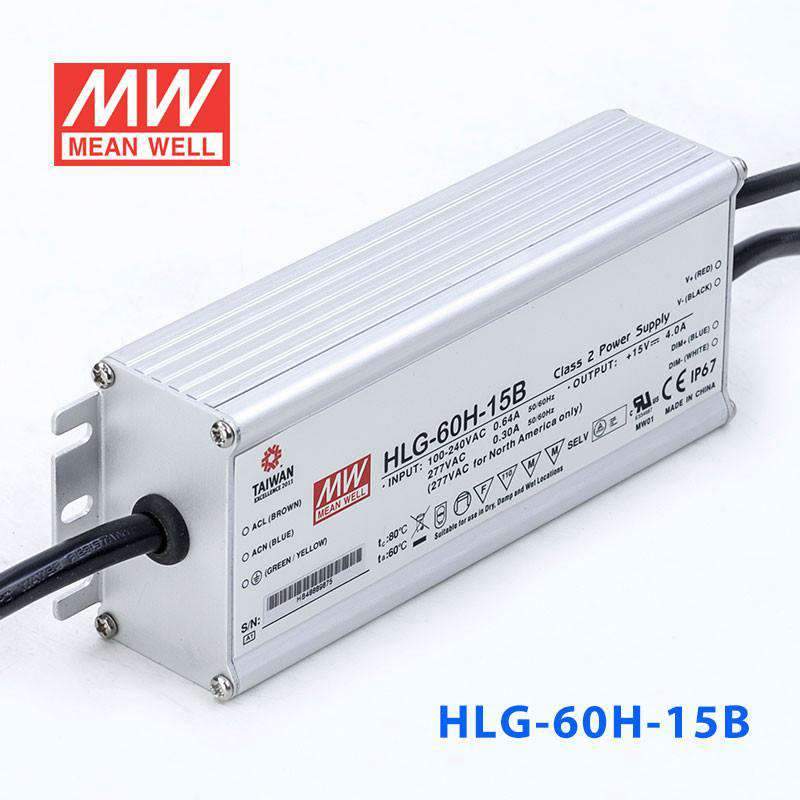

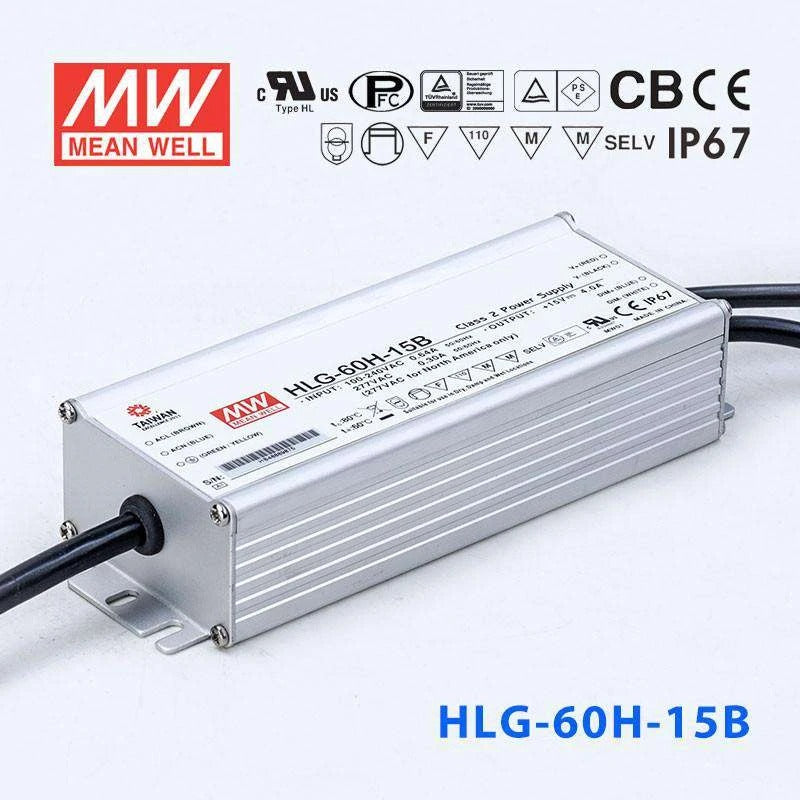

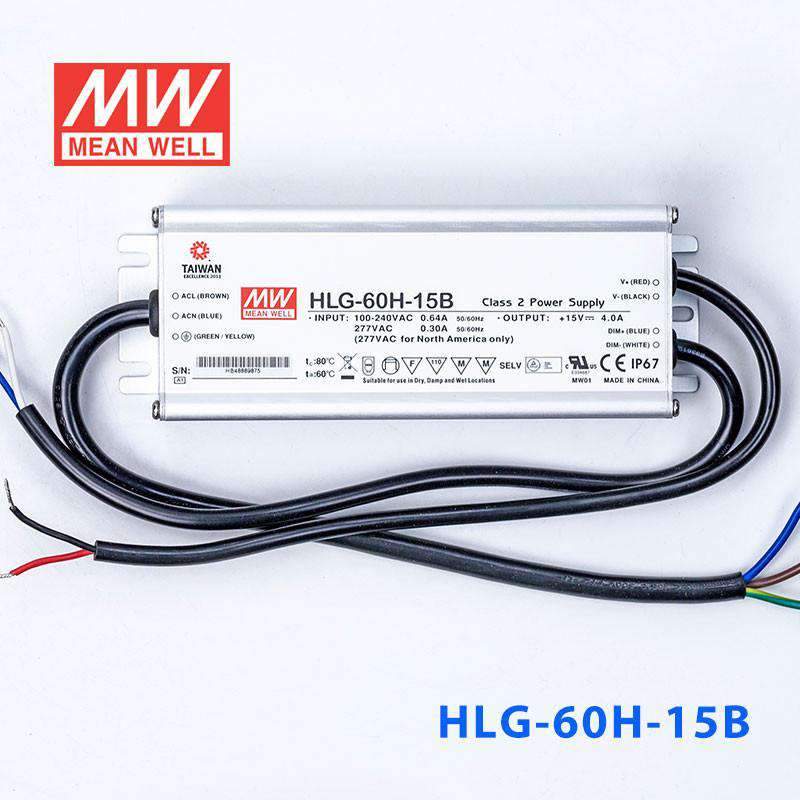

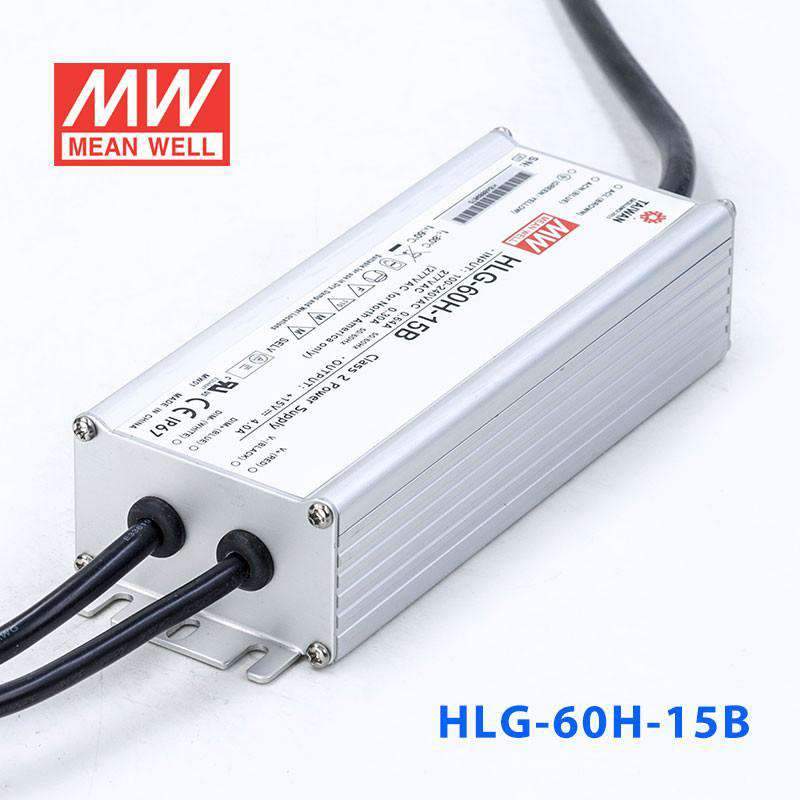

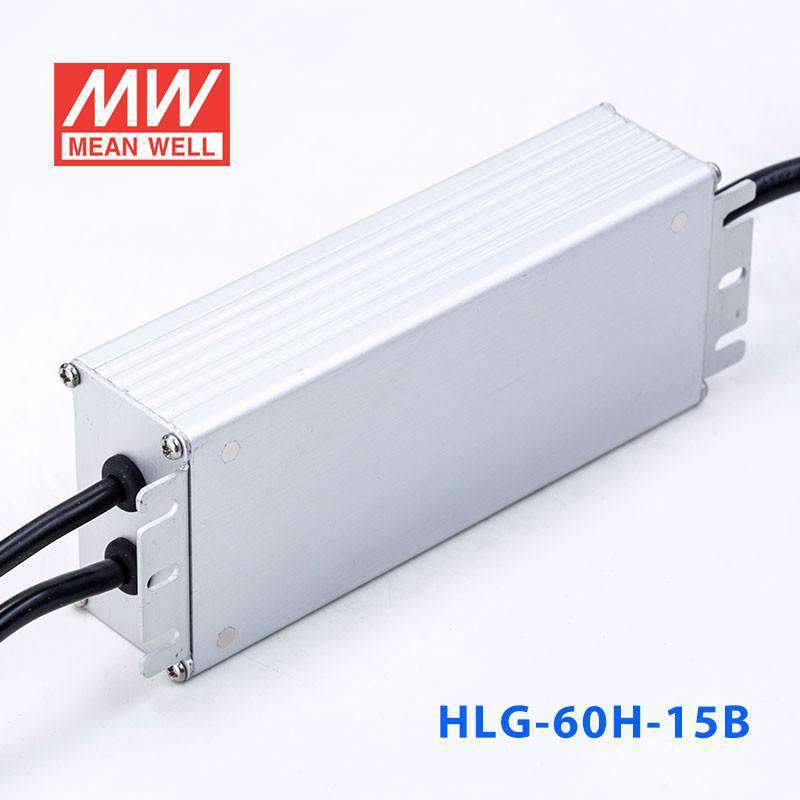

Mean Well HLG-60H-15B Power Supply 60W 15V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-15B to power dimmable 15V LED strips outdoors?
Yes. The HLG-60H-15B outputs 60W at 15V with a dimming interface for brightness control. Its IP67 waterproof rating allows fully exposed outdoor mounting, including direct rain, so it suits exterior accent lighting, garden path strips, and patio LED installations.
Is the HLG-60H-15B suitable for a small dimmable 15V outdoor LED sign?
Yes. At 60W and 15V it can power small channel letters or light-box signs running on 15V modules, and the dimming input lets you schedule brightness for day/night operation. The IP67 waterproof enclosure allows mounting in sign cabinets exposed to rain and humidity.
Can the HLG-60H-15B power 15V LED landscape lighting in a wet environment?
Yes. The 60W output at 15V handles several landscape fixtures, and the IP67 rating withstands temporary water immersion up to 1 meter depth. This makes it suitable for ground-level junction boxes, garden beds, or locations subject to irrigation spray and standing water.
How many meters of 15V LED strip can the HLG-60H-15B drive?
It depends on the strip's wattage per meter. The HLG-60H-15B provides up to 60W at 15V. If your strip uses 10W/m, you could power up to 6 meters (60W / 10W per meter = 6m). Check your strip's rated power per meter and keep the combined load at or below 60W.
Can the HLG-60H-15B be fully submerged or left in standing water?
The IP67 rating covers temporary immersion in water up to 1 meter depth for up to 30 minutes, so brief flooding or standing water is acceptable. It is not rated for continuous submersion. For permanent underwater use, a dedicated submersible-rated enclosure would be needed. The operating range of -40°C to +80°C handles most outdoor temperature extremes.
