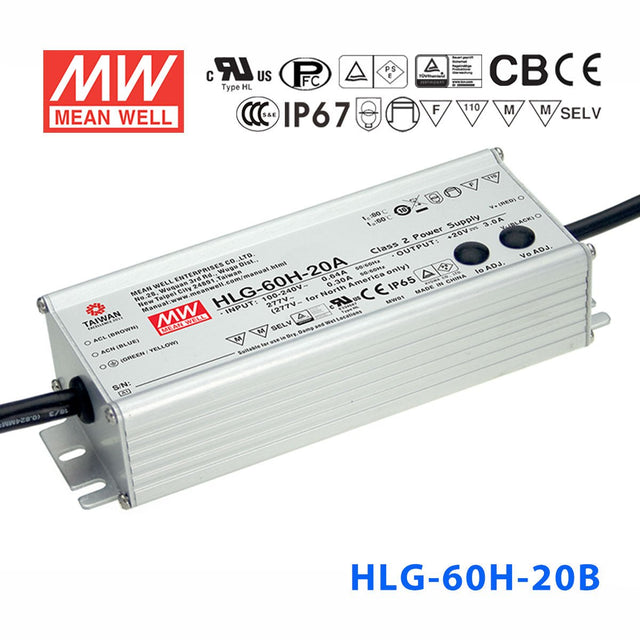

Mean Well HLG-60H-20AB Power Supply 60W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-20AB Power Supply 60W 20V - Adjustable and Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-20AB with a 1-10V dimmer to control 20V LED strip lighting?
Yes. The HLG-60H-20AB accepts 1-10V and PWM dimming signals, so you can pair with a standard 1-10V wall dimmer or automation controller to smoothly adjust 20V LED strip brightness. It also includes a built-in potentiometer for setting the maximum output level, giving you both manual and automated control.
Is the HLG-60H-20AB suitable for powering dimmable 20V LED signage?
Yes. With 60W at 20V and built-in dimming input, the HLG-60H-20AB can drive 20V LED sign modules where brightness adjustment is needed, such as storefront channel letters that dim at night. The adjustable output lets you fine-tune voltage and current to match your specific sign module requirements.
Can I use the HLG-60H-20AB for smart-home controlled LED cove lighting?
Yes. Its 1-10V/PWM dimming input works with most smart-home lighting controllers and building automation systems. At 60W and 20V with adjustable output, it is well suited for cove or accent lighting where smooth automated brightness control is important.
How many meters of 20V LED strip can the HLG-60H-20AB power?
Divide 60W by your strip's power consumption per meter. For example, a strip rated at 10W/m would allow up to 6 meters (60W / 10W per meter = 6m). Always check your strip's rated power per meter and keep the total load at or below 60W for reliable operation.
Can I install the HLG-60H-20AB in a covered outdoor patio or canopy?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust, making it suitable for sheltered outdoor locations like covered patios, canopies, or soffits. For fully exposed rain installations, consider the IP67-rated HLG-60H-20B instead.
What are the differences between the HLG-60H-20, 20A, 20AB, and 20B variants?
All four share the same 60W / 20V / 3A core specs. The base HLG-60H-20 has no output adjustment and is IP67 waterproof. The -20A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -20AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -20B provides dimming input only and retains IP67.
