Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

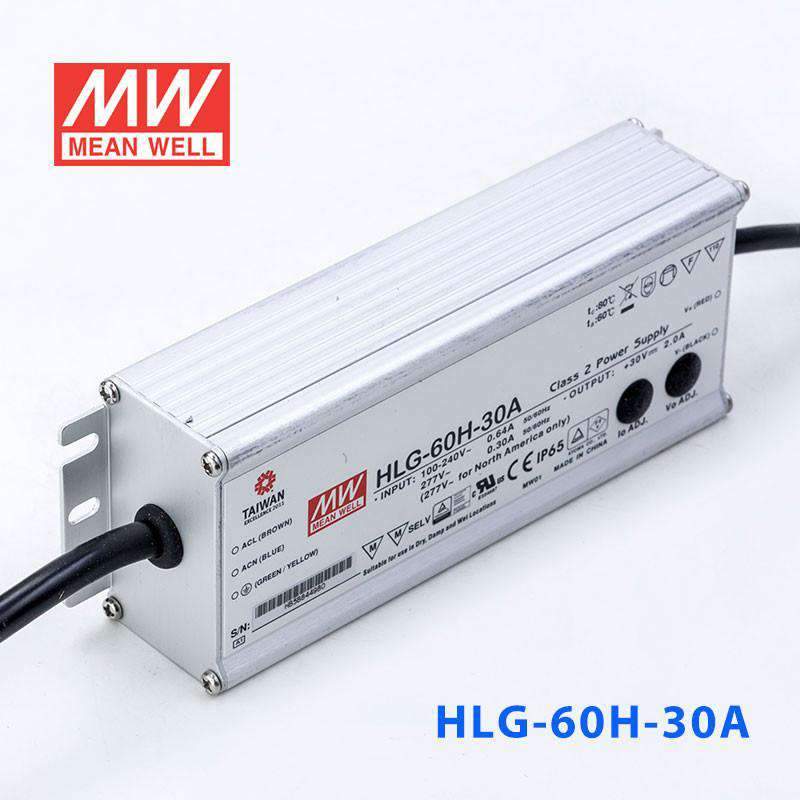

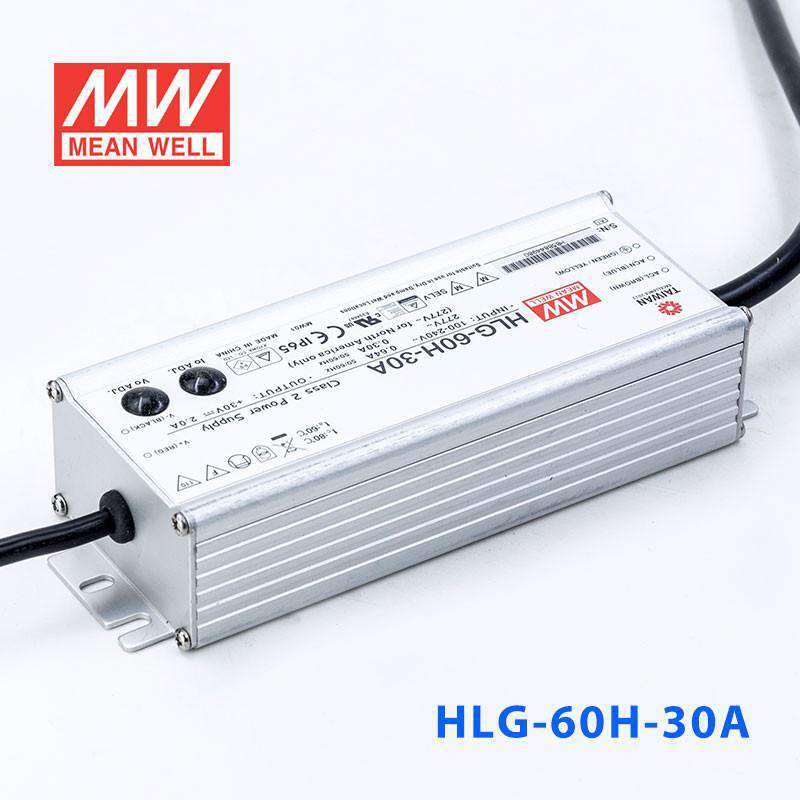

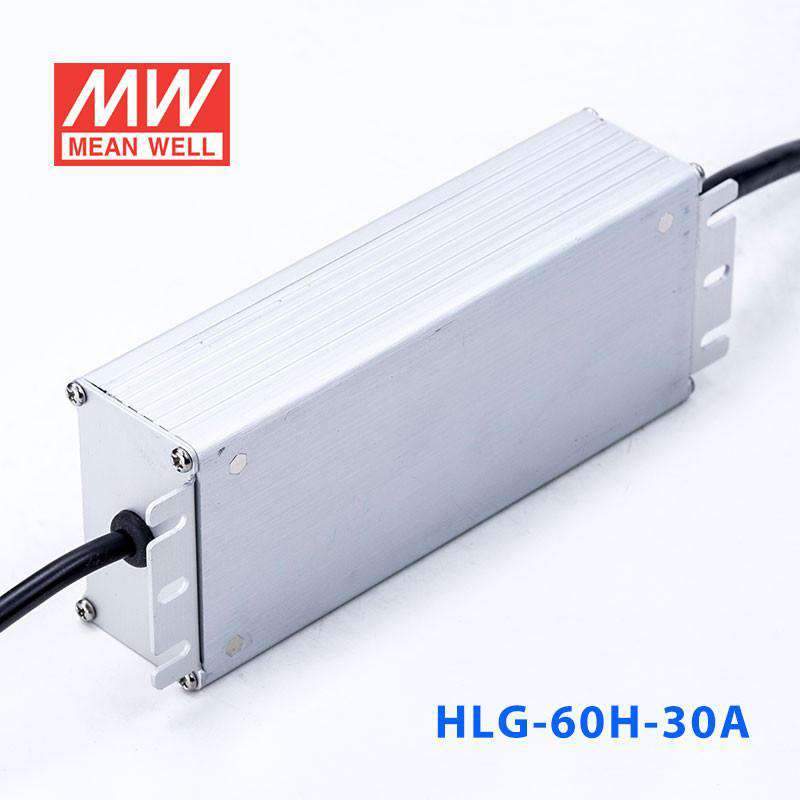

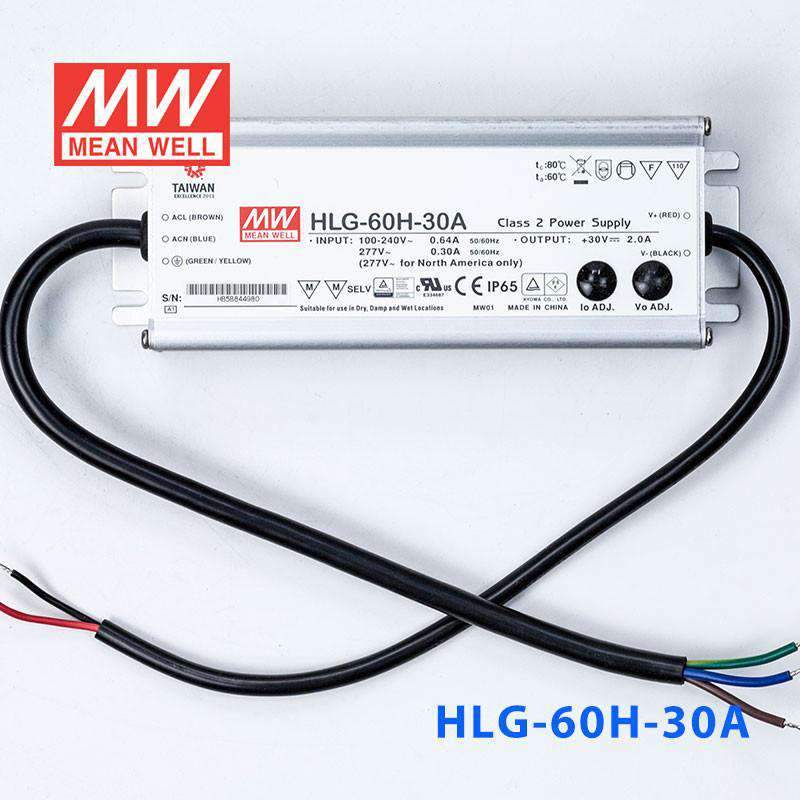

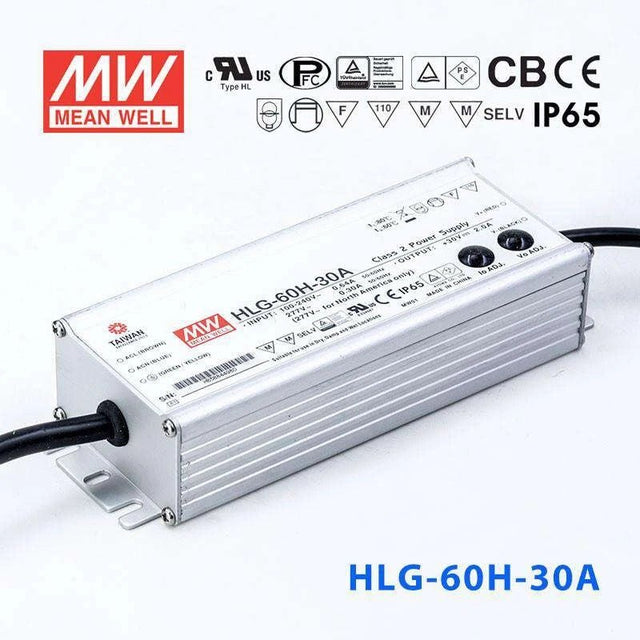

Mean Well HLG-60H-30A Power Supply 60W 30V - Adjustable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the adjustable output on the HLG-60H-30A to optimize 30V LED panel performance?
Yes. The built-in potentiometer lets you trim output voltage and current within the CC range of 18-30V. This is useful for matching the driver precisely to your 30V LED panel's optimal operating point, which can extend LED lifespan and improve efficiency.
Is the HLG-60H-30A a good choice for 30V LED industrial task lighting?
Yes. At 60W and 30V with adjustable output, the HLG-60H-30A can drive 30V LED fixtures used in workshops, warehouses, or factory floors. The adjustable output helps you set the brightness level appropriate for the task area, and its IP65 rating handles dusty or damp industrial environments.
Can the HLG-60H-30A power 30V LED modules in a small commercial lightbox?
Yes. The 60W output at 30V can drive 30V LED module arrays in menu boards, directory signs, or small advertising lightboxes. The potentiometer adjustment is particularly helpful for dialing in the exact voltage to match your module string, avoiding over-driving the LEDs.
How many meters of 30V LED strip can the HLG-60H-30A handle?
The HLG-60H-30A provides up to 60W at 30V. Divide 60 by your strip's wattage per meter to find the maximum length. For instance, a strip rated at 8W/m would allow up to 7.5 meters (60W / 8W per meter = 7.5m). Always verify your strip's rated power per meter before sizing the driver.
Is the HLG-60H-30A suitable for installation in a dusty workshop or covered loading dock?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making it appropriate for dusty workshops, covered loading docks, or semi-sheltered industrial areas. For locations with direct rain or standing water, the IP67-rated HLG-60H-30 would be more appropriate.
