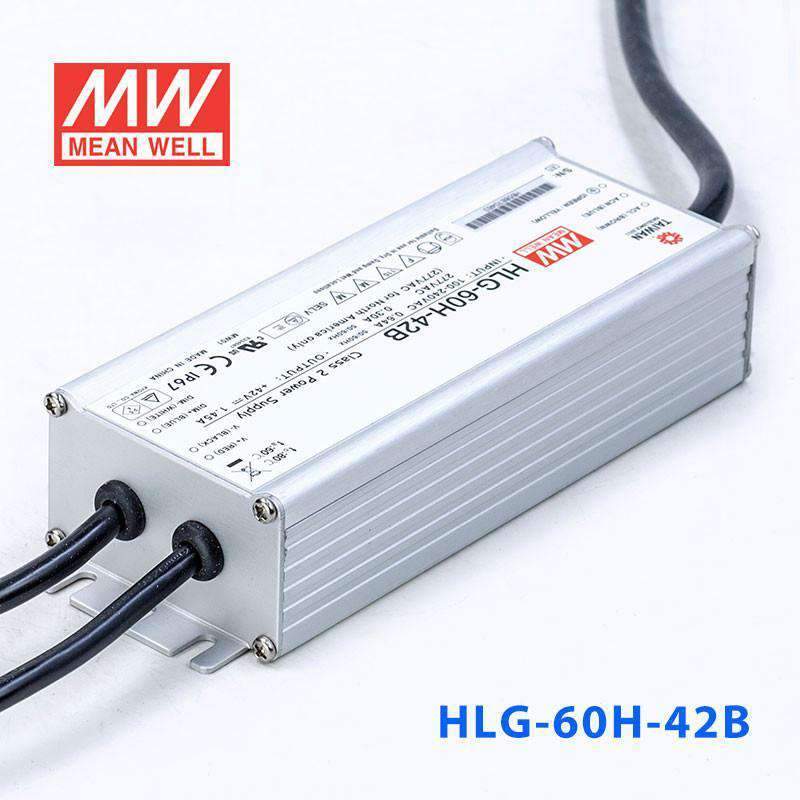

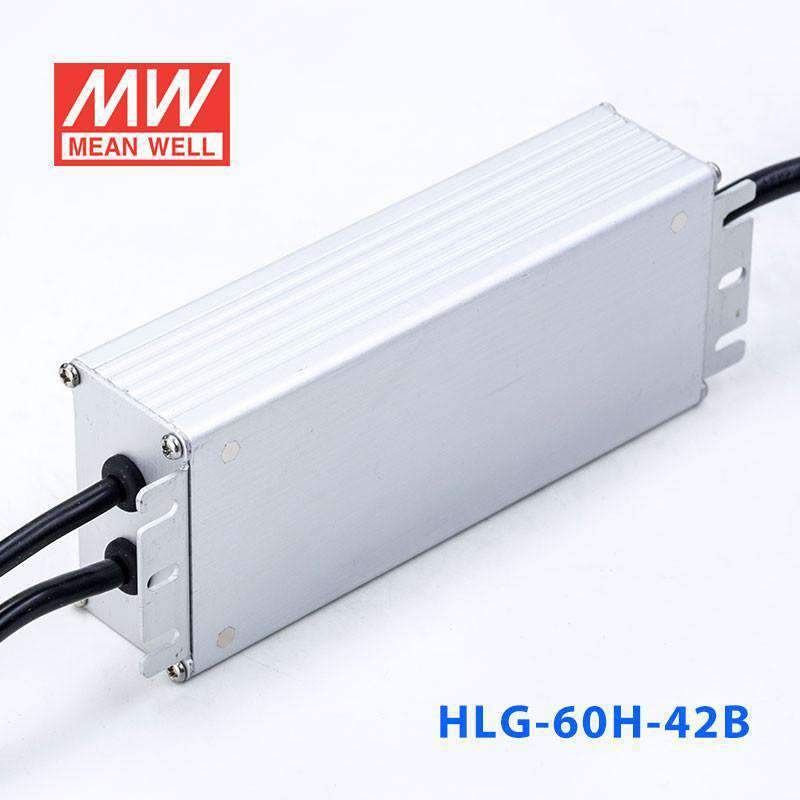

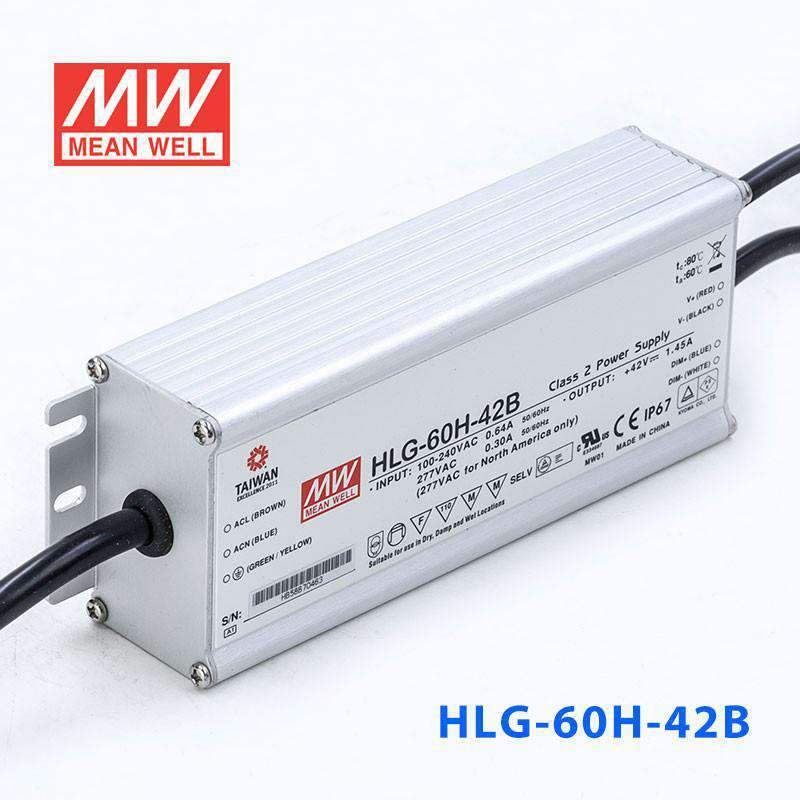

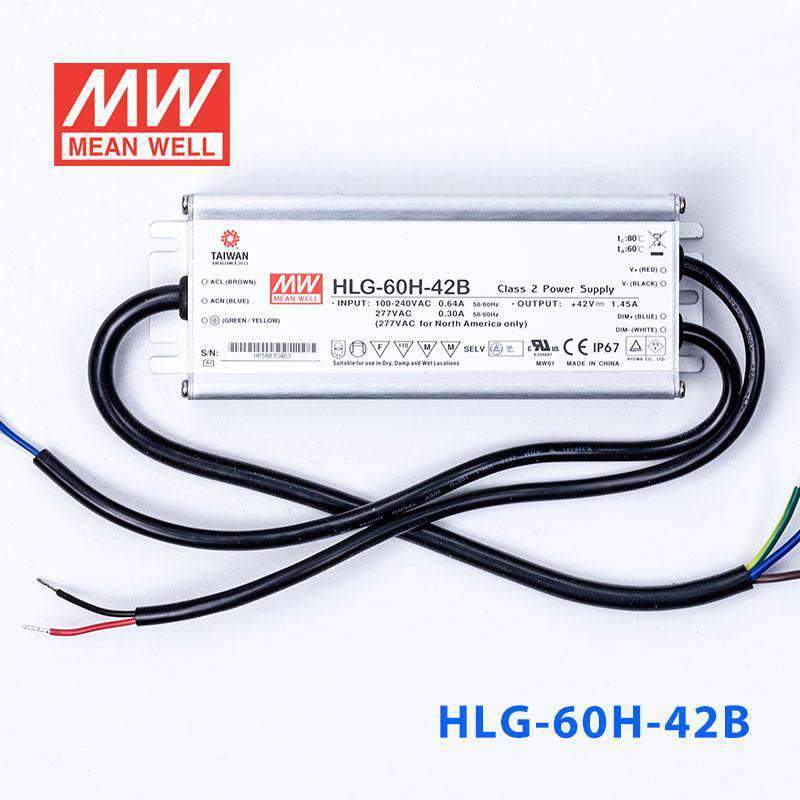

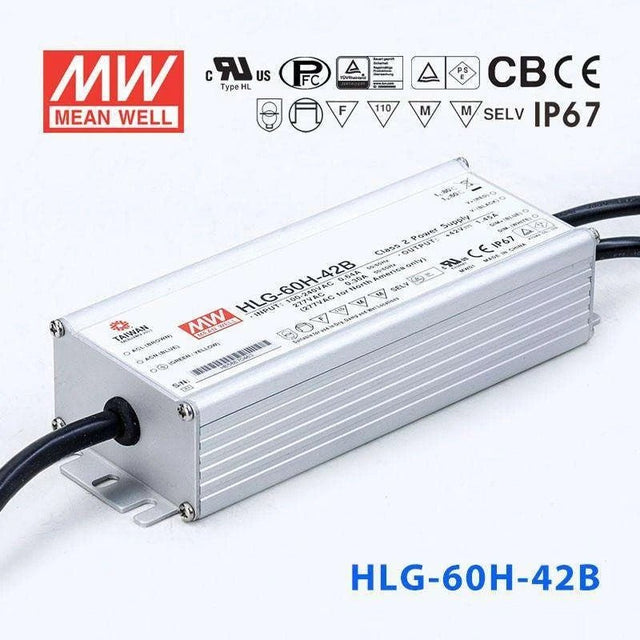

Mean Well HLG-60H-42B Power Supply 60W 42V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage42 Volt
-
Rated Current1.45 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-42B to power dimmable 42V LED fixtures outdoors?
Yes. The HLG-60H-42B outputs 42V at up to 1.45A (60W) with a 1-10V/PWM dimming input, and carries an IP67 waterproof rating. It can be mounted in locations fully exposed to rain, snow, or temporary water contact, making it ideal for outdoor architectural or landscape LED fixtures.
Is the HLG-60H-42B suitable for powering a 42V LED channel-letter sign?
Yes, as long as the sign's total power draw stays within 60W at 42V. The constant-current mode covers a 25-42V range, so it can accommodate modules that operate at slightly lower voltages. The IP67 waterproof enclosure is well suited for exterior-mounted signage.
Can the HLG-60H-42B power 42V LED linear lights in a parking garage?
Yes. With 60W output at 42V and IP67 waterproofing, the HLG-60H-42B handles the damp, dusty conditions found in parking garages. The dimming input lets you reduce light levels during low-traffic hours to save energy, and the -40°C to +80°C operating range covers seasonal temperature swings.
How many meters of 42V LED strip can the HLG-60H-42B handle?
It depends on your strip's power consumption per meter. The HLG-60H-42B provides up to 60W at 42V. For a strip rated at 12W/m, you could run 5 meters (60W / 12W per meter = 5m). For a 6W/m strip, up to 10 meters. Always check your strip's rated power per meter and stay within 60W total.
Can the HLG-60H-42B withstand being submerged in standing water?
IP67 means the enclosure can withstand temporary immersion in water up to 1 meter deep for 30 minutes. It is suitable for installations near ground level where puddles or temporary flooding may occur. The aluminium casing and -40°C to +80°C operating range further support harsh-environment durability.
