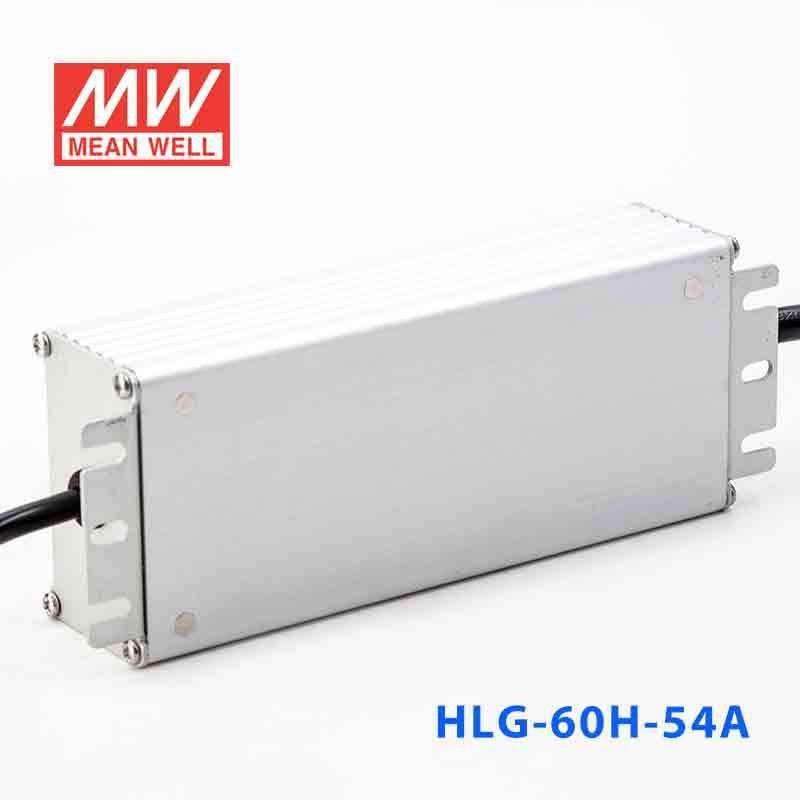

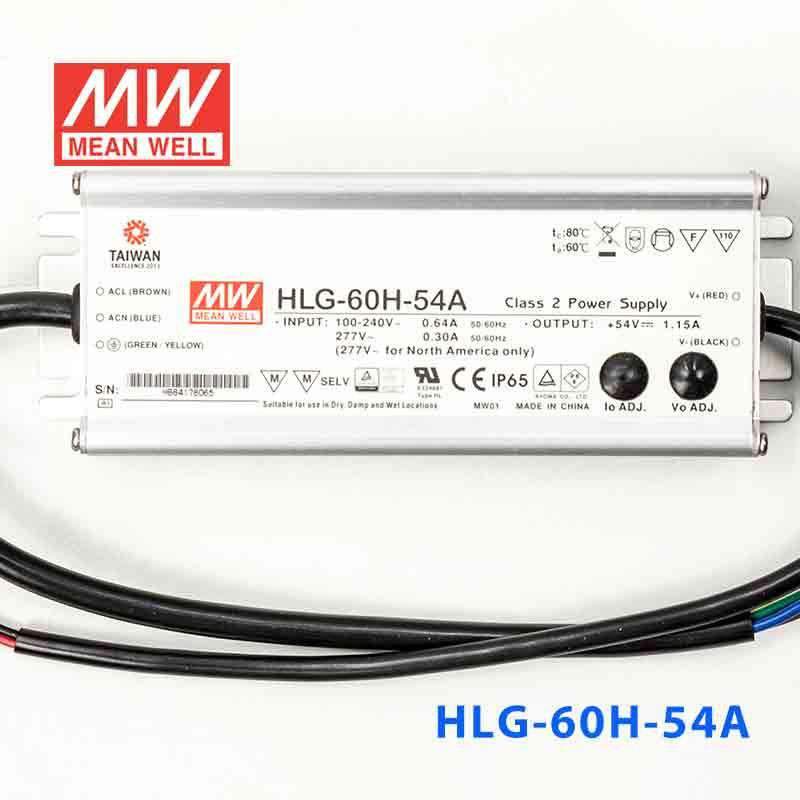

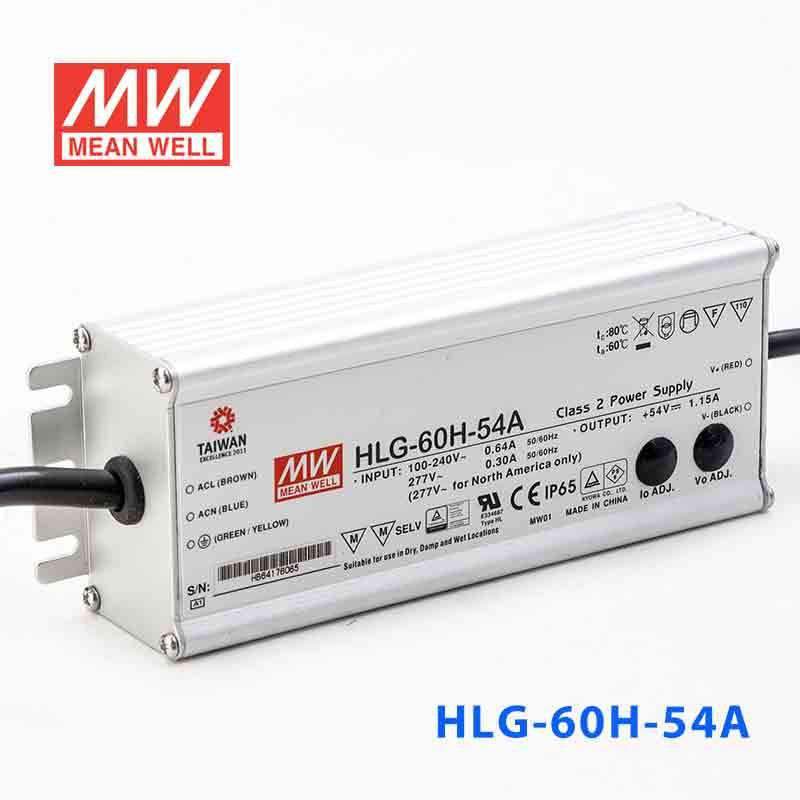

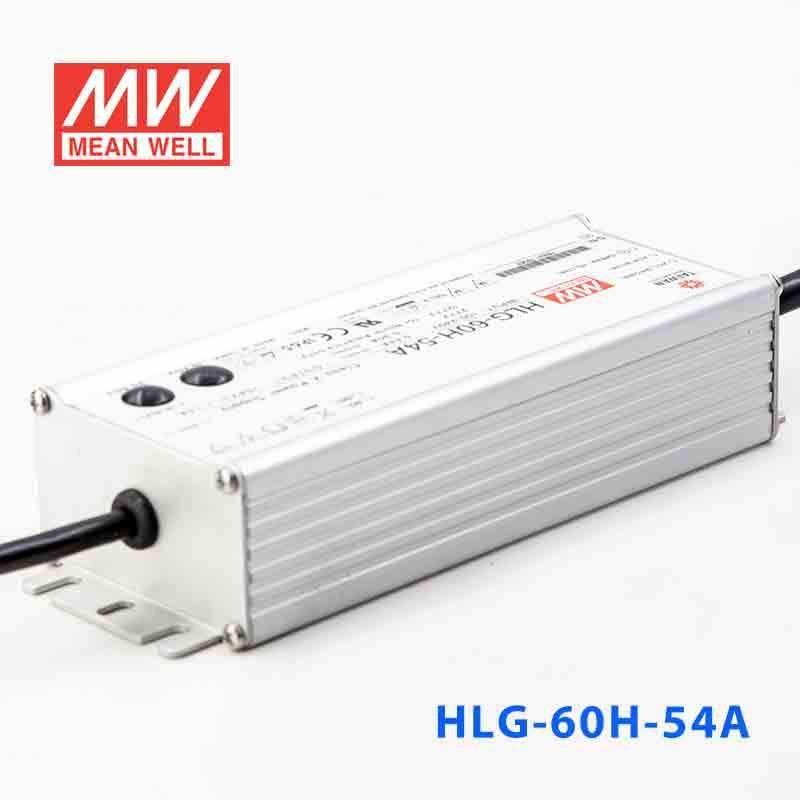

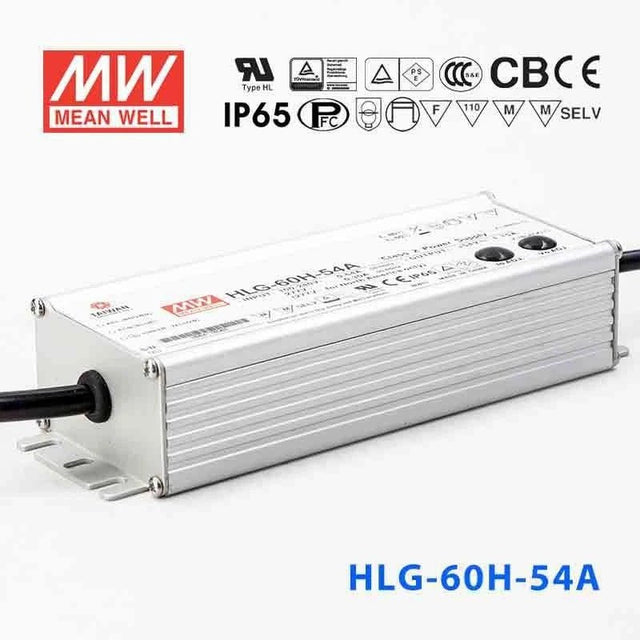

Mean Well HLG-60H-54A Power Supply 60W 54V - Adjustable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-54A to power adjustable 54V LED ceiling lights?
Yes. The HLG-60H-54A delivers 54V at up to 1.15A (60W) and includes a potentiometer for output voltage and current adjustment. This lets you dial in the optimal operating point for your 54V LED ceiling fixtures without needing an external controller.
Is the HLG-60H-54A suitable for 54V LED modules in a display cabinet?
Yes. At 60W it can drive small to medium 54V LED arrays used in museum cases, retail display cabinets, or jewelry showcases. The adjustable output allows precise tuning of brightness and current to match your specific module requirements and extend LED lifespan.
Can the HLG-60H-54A drive 54V COB LED modules for task lighting?
Yes, provided total power stays within 60W. The constant-current mode with a 32-54V range accommodates COB modules with varying forward voltages. The built-in potentiometer lets you adjust current delivery to match each COB module's optimal drive level for maximum efficiency and longevity.
How many meters of 54V LED strip can the HLG-60H-54A handle?
Divide 60W by the strip's rated power per meter. A 54V strip rated at 8W/m would allow up to 7.5 meters (60W / 8W per meter = 7.5m). A denser strip at 12W/m allows 5 meters. Always verify your strip's wattage per meter and keep the total load within 60W.
Can the HLG-60H-54A be mounted in a semi-enclosed outdoor electrical box?
Yes. The IP65 rating protects against dust and low-pressure water jets, making it suitable for semi-enclosed or covered outdoor enclosures. For installations exposed to heavy rain or temporary flooding, the IP67-rated HLG-60H-54 would provide better water protection.
How does the HLG-60H-54A compare to higher-wattage models in the HLG series at 54V?
The HLG series at 54V ranges from 40W (HLG-40H-54A at 0.75A) up to 600W (HLG-600H-54A at 11.2A). The HLG-60H-54A sits at the lower end at 60W / 1.15A, making it appropriate for small LED loads. If you need more capacity, the HLG-80H-54A (80W / 1.5A) or HLG-100H-54A (100W / 1.77A) are the next steps up while remaining in the same compact form factor family.
