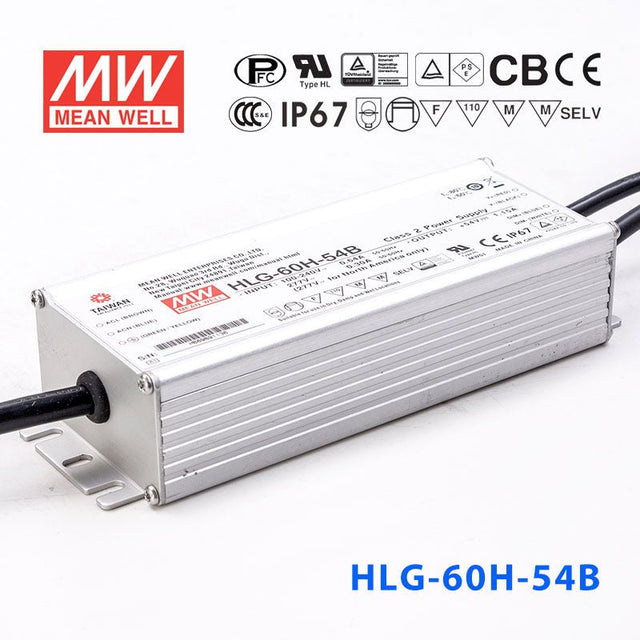

Mean Well HLG-60H-54AB Power Supply 60W 54V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-54AB Power Supply 60W 54V - Adjustable and Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-54AB to power 54V LED panel lights with dimming control?
Yes. The HLG-60H-54AB delivers 60W at 54V and includes both output adjustment and a 1-10V/PWM dimming input, so you can control brightness from an external dimmer or building management system. Its constant-current mode with a 32-54V CC range accommodates 54V LED panels that may draw varying voltage under different loads.
Is the HLG-60H-54AB a good fit for dimmable 54V LED high-bay fixtures?
Yes, provided each fixture stays within 60W total draw. The built-in dimming input lets you reduce light output during off-peak hours, and the adjustable output potentiometer allows fine-tuning voltage and current to match the fixture. The wide 90-305VAC input handles most industrial mains supplies.
Can I drive a small 54V LED signage module with the HLG-60H-54AB?
Yes. At 60W and 54V output, the HLG-60H-54AB can power compact 54V channel letters or light-box modules. The adjustable output is useful for trimming voltage to match the exact module string voltage, and dimming capability lets you lower brightness for nighttime operation.
Is the HLG-60H-54AB suitable for a covered outdoor patio lighting installation?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust, which is sufficient for covered patios, canopies, and soffits. For fully exposed rain or standing-water environments, the IP67-rated HLG-60H-54B would be more appropriate.
What are the differences between the HLG-60H-54, 54A, 54AB, and 54B models?
All four share the same 60W / 54V / 1.15A core specs and constant-current operation. The base HLG-60H-54 has no output adjustment or dimming and is IP67 waterproof. The -54A adds a built-in potentiometer for output adjustment (IP65). The -54AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -54B adds dimming input only and retains IP67.
