Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

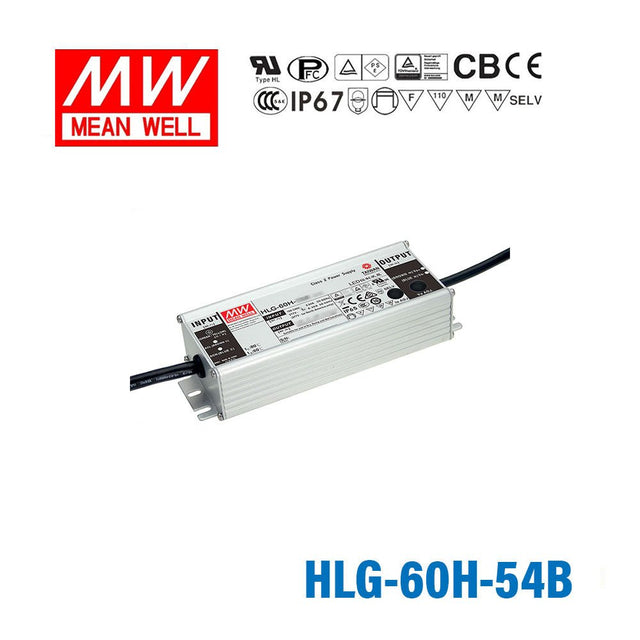

Mean Well HLG-60H-54B Power Supply 60W 54V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-54B to power a dimmable 54V LED grow light?
Yes. The HLG-60H-54B outputs 60W at 54V with a dimming input that accepts 1-10V or PWM signals, so you can adjust light intensity for different growth stages. Its constant-current operation with a 32-54V CC range suits single 54V LED grow-light modules within the 60W limit.
Is the HLG-60H-54B suitable for outdoor 54V LED landscape lighting?
Yes. With IP67 waterproof protection, the HLG-60H-54B can be installed in direct rain, buried in irrigation zones, or placed in outdoor junction boxes without additional weatherproofing. Its -40°C to +80°C operating range also handles seasonal temperature extremes.
Can I run 54V LED architectural wash lights from the HLG-60H-54B?
Yes, as long as the total load stays within 60W. The dimming input lets you adjust brightness for scene-setting in facade or accent lighting applications. At 54V and 1.15A maximum, you would need to verify your wash lights draw no more than 60W combined.
Can the HLG-60H-54B handle being submerged or installed in a wet underground vault?
Its IP67 rating means it is protected against temporary immersion in water up to 1 meter for 30 minutes. It can handle wet underground vaults, flooded junction boxes, or direct rain exposure. For permanent submersion, an IP68-rated supply would be needed.
How does the HLG-60H-54B compare to the higher-wattage HLG-80H-54 and HLG-100H-54 in the series?
The HLG-60H-54B delivers 60W at 54V (1.15A). The HLG-80H-54 steps up to 80W at 54V (1.5A), and the HLG-100H-54 provides 100W at 54V (1.77A). All share IP67 waterproof protection in their B variants. Choose based on your total LED load — the 60W model is the most compact option when your fixture or module stays within that power budget.
