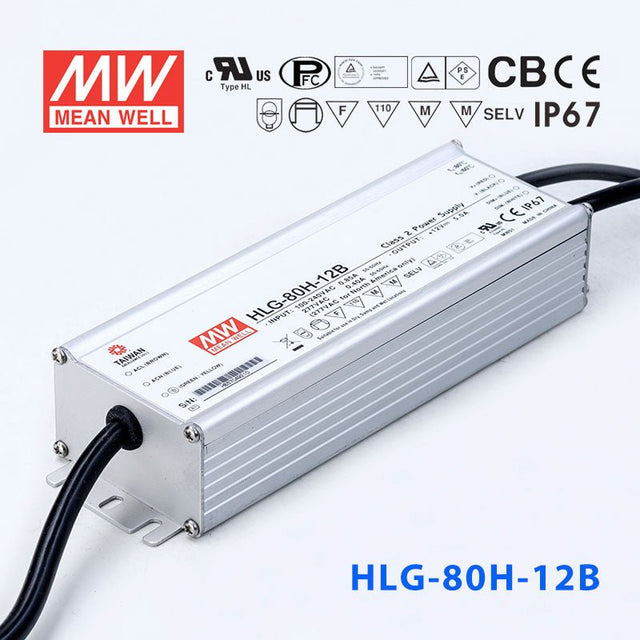

Mean Well HLG-80H-12AB Power Supply 60W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-12AB Power Supply 60W 12V - Adjustable and Dimmable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-12AB for a dimmable 12V LED under-counter lighting project?
Yes. The HLG-80H-12AB delivers 60W at 12V and includes both a 1-10V/PWM dimming input and an output adjustment potentiometer. You can connect it to a wall-mounted 1-10V dimmer for smooth brightness control over kitchen or bar under-counter LED strips.
Is the HLG-80H-12AB a good fit for dimmable 12V LED strip in a commercial display?
Yes. At 60W and 12V, it can power 12V LED strip or module arrays in display cases, shelving, or merchandise showcases. The dimming input lets you adjust brightness for different display modes, and the adjustable output ensures the driver voltage matches the LED load precisely.
Can I use the HLG-80H-12AB with a building automation system for scheduled dimming?
Yes. The 1-10V/PWM dimming input is compatible with most building management and automation systems that output a 1-10V or PWM control signal. This allows scheduled dimming profiles for energy savings during off-hours or daylight harvesting scenarios.
How many meters of 12V LED strip can the HLG-80H-12AB drive?
Divide 60W by your strip's rated wattage per meter. For example, at 12W/m you can run 5 meters (60W / 12W per meter = 5m). At 7.2W/m, you could run about 8.3 meters. Always check your specific strip's rated power per meter and keep total load at or below 60W.
Can the HLG-80H-12AB be used in a covered outdoor awning installation?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered awnings, soffits, and similar sheltered outdoor locations. For installations exposed to direct rain or potential flooding, an IP67-rated model such as the HLG-80H-12B would be a better fit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-80H Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-80H-12B Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $42.80 | View |
| Mean Well HLG-80H-48 Power Supply 80W 48V | 80W | 48V | 1.7A | IP67 | $46.44 | View |
| Mean Well HLG-80H-42B Power Supply 80W 42V - Dimmable | 80W | 42V | 1.95A | IP67 | $44.11 | View |
