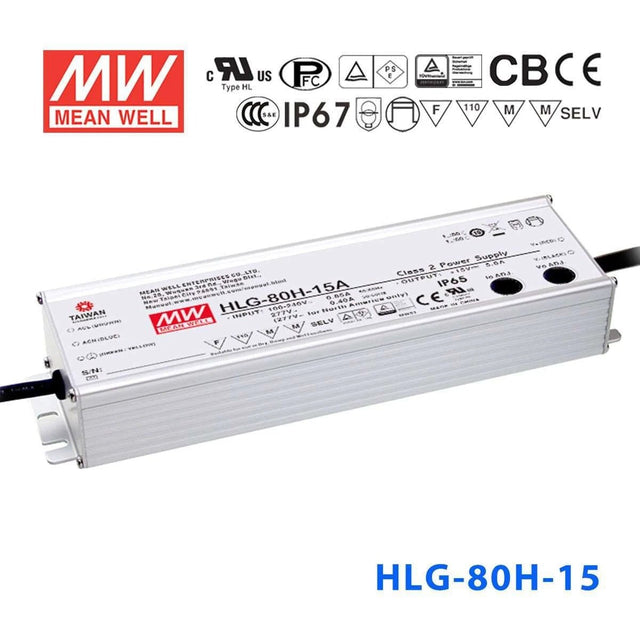

Mean Well HLG-80H-15 Power Supply 75W 15V
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-15 to power 15V LED strip or module lighting outdoors?
Yes. The HLG-80H-15 delivers 75W at 15V and carries an IP67 waterproof rating, so it can be installed in direct rain or wet locations. It suits outdoor 15V LED strip runs, architectural accent lighting, or sign modules that operate at 15V.
Is the HLG-80H-15 a good choice for powering 15V LED sign modules in an outdoor cabinet?
Yes. With 75W at 15V (5A), it can drive 15V channel-letter or cabinet-sign LED modules. The IP67 rating and universal 90-305VAC input make it well-suited for outdoor signage where the driver may be exposed to weather and varying mains voltages.
Can I power 15V LED light engines for commercial downlighting with the HLG-80H-15?
Yes, provided the combined load of the light engines stays within 75W. The constant-current mode with a 9-15V CC range ensures stable output even if the LED forward voltage varies slightly. Since this is the base model, there is no dimming input — an external controller would be needed if dimming is required.
How many meters of 15V LED strip can the HLG-80H-15 handle?
Divide 75W by the strip's power consumption per meter. For example, a 15V strip rated at 10W/m would allow 7.5 meters (75W / 10W per meter = 7.5m). A higher-output strip at 15W/m would allow 5 meters. Always verify your strip's rated power per meter and keep total load at or below 75W.
Can the HLG-80H-15 be installed outdoors without an additional enclosure?
Yes. The IP67 waterproof rating and aluminium casing allow direct outdoor mounting without a secondary enclosure. It is protected against dust, rain, and temporary submersion up to 1 meter. The -40°C to +80°C operating range handles most climates year-round.
What are the differences between the HLG-80H-15, 15A, 15AB, and 15B variants?
All share the same 75W / 15V / 5A core specs with constant-current operation. The base HLG-80H-15 has no output adjustment or dimming and is IP67 waterproof. The -15A adds a potentiometer for output adjustment (IP65). The -15AB adds both adjustment and 1-10V/PWM dimming (IP65). The -15B adds dimming input only and retains IP67.
