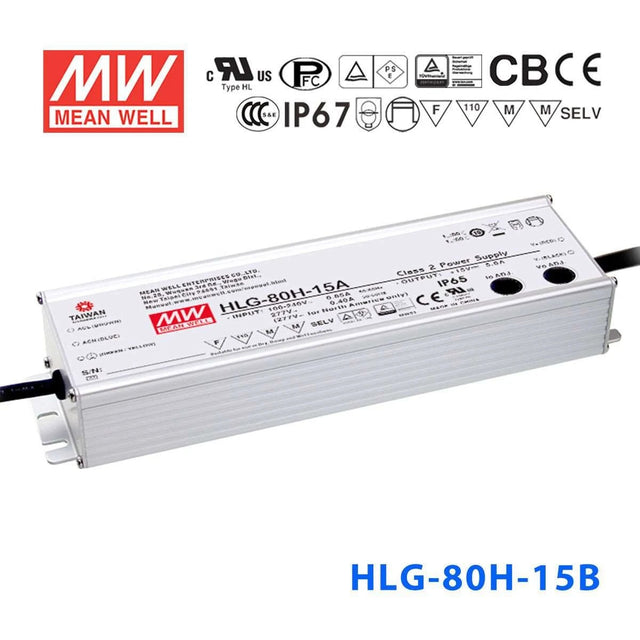

Mean Well HLG-80H-15B Power Supply 75W 15V - Dimmable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-15B for outdoor 15V LED strip lighting exposed to rain?
Yes. The HLG-80H-15B delivers 15V at up to 5A (75W) and has an IP67 waterproof rating, meaning it can withstand temporary submersion up to 1 meter. It is well suited for fully exposed outdoor LED strip installations where direct rain contact is expected.
Is the HLG-80H-15B suitable for dimming 15V LED signage via an external controller?
Yes. The B suffix indicates this model has a 1-10V/PWM dimming input. You can pair with a compatible dimmer or building management system to vary the light output of 15V LED signs, making it useful for daylight-responsive or scheduled brightness control.
Can the HLG-80H-15B power 15V LED modules in a wet-location light box?
Yes. At 75W output and IP67 waterproof protection, the HLG-80H-15B can be mounted inside or beside a wet-location light box driving 15V LED modules. Its -40°C to +80°C operating range and aluminium casing handle the temperature swings typical of outdoor enclosures.
How many meters of 15V LED strip can the HLG-80H-15B drive?
It depends on the strip's rated wattage per meter. The HLG-80H-15B provides up to 75W at 15V. If your strip uses 15W/m, you could run up to 5 meters (75W / 15W per meter = 5m). Check your strip's rated power per meter and keep the total load at or below 75W.
Can I mount the HLG-80H-15B directly outdoors without an additional enclosure?
Yes. Its IP67 rating means it is protected against dust ingress and temporary water immersion, so no additional weatherproof enclosure is required. The aluminium housing also resists corrosion, and the unit operates from -40°C to +80°C.
