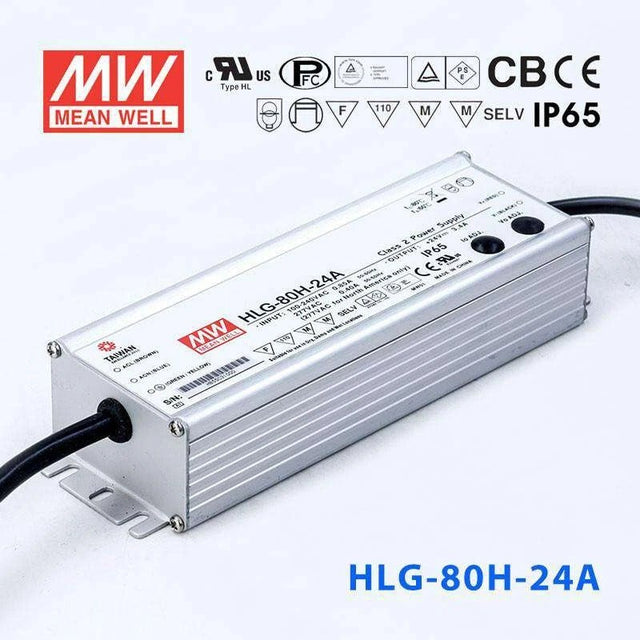

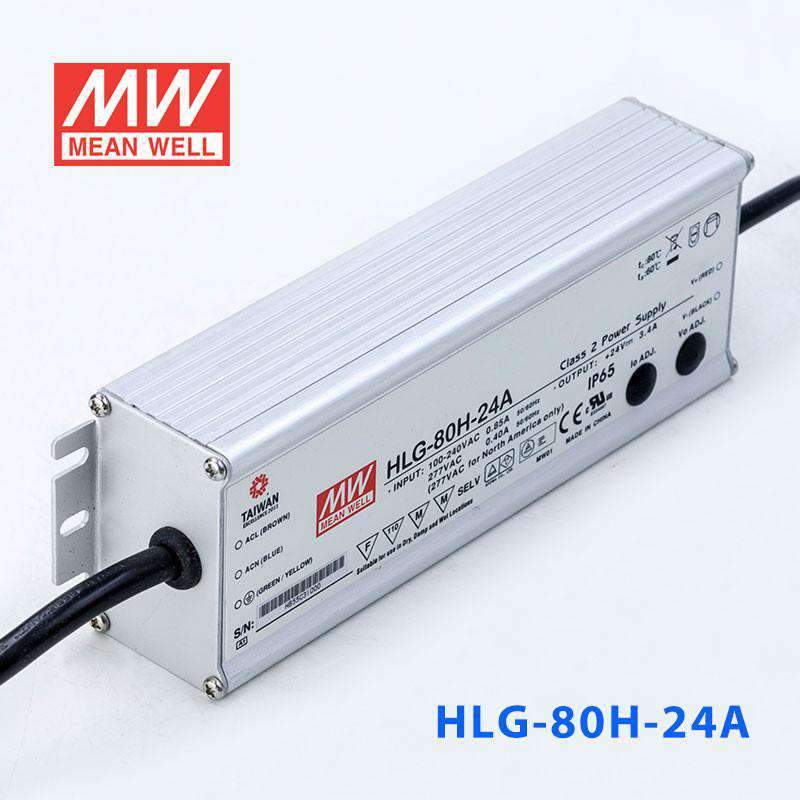

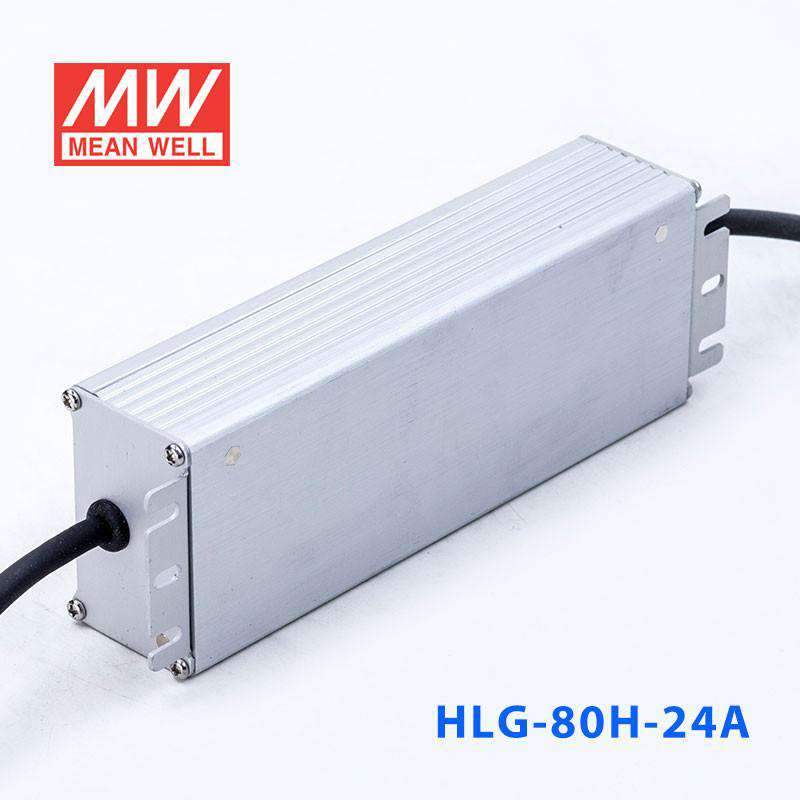

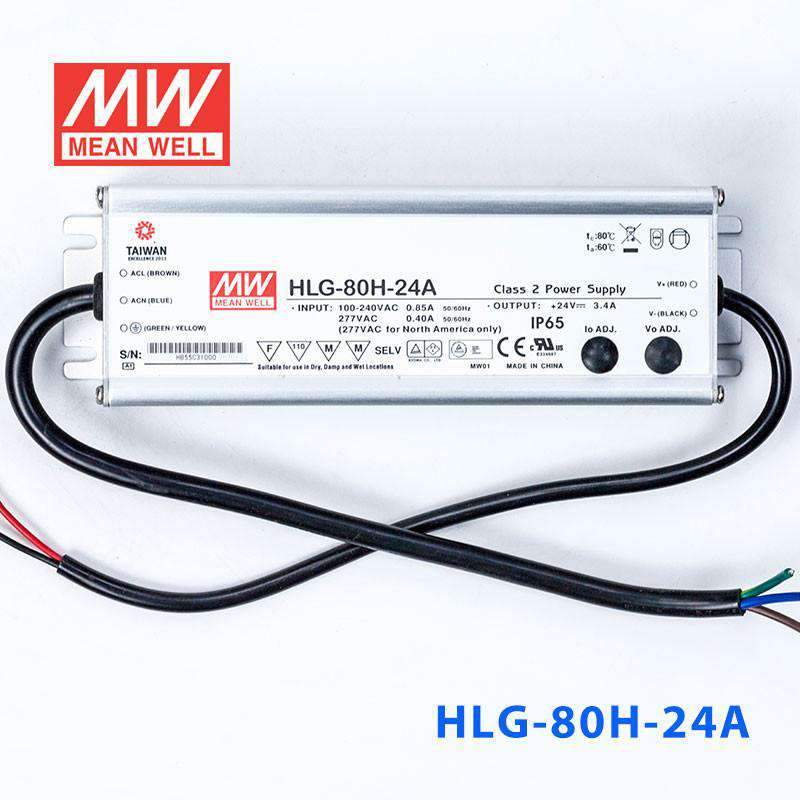

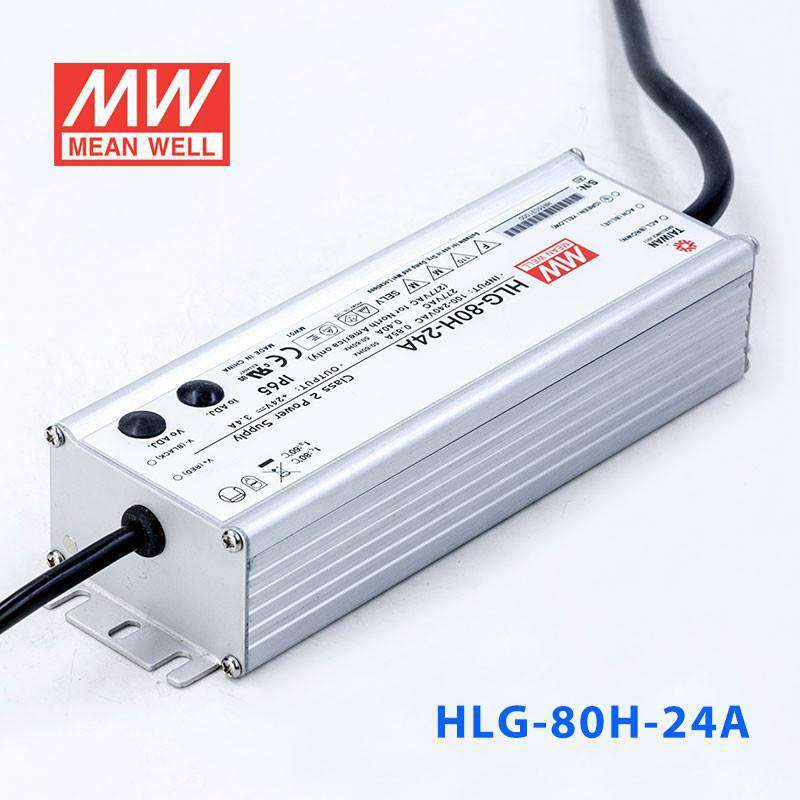

Mean Well HLG-80H-24A Power Supply 80W 24V - Adjustable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage24 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-24A for 24V LED strip lighting in a sheltered outdoor area?
Yes. The HLG-80H-24A delivers 24V at up to 3.4A (80W) with an IP65 water-resistant rating, suitable for covered patios, carports, and awnings where splashing water and dust are present. For fully rain-exposed locations, consider the IP67-rated HLG-80H-24 or HLG-80H-24B.
How does the adjustable output on the HLG-80H-24A benefit a 24V LED installation?
The built-in potentiometer lets you trim output voltage and current to match your specific 24V LED load. This is useful when fine-tuning brightness or when your LEDs run optimally at a slightly lower voltage within the 14-24V CC range, reducing heat and extending LED lifespan.
Is the HLG-80H-24A a good driver for 24V LED commercial signage?
Yes. At 80W and 24V, it can power 24V channel letters or light-box modules. The adjustable potentiometer lets you dial in the exact voltage for your module string, and the wide 90-305VAC input handles most commercial mains voltages globally.
How many meters of 24V LED strip can the HLG-80H-24A drive?
It depends on the strip's rated wattage per meter. The HLG-80H-24A provides up to 80W at 24V. For a strip rated at 10W/m, you could run up to 8 meters (80W / 10W per meter = 8m). Check your strip's rated power per meter and keep total load at or below 80W.
Is the HLG-80H-24A appropriate for damp indoor locations like a commercial kitchen soffit?
Yes. Its IP65 rating protects against low-pressure water jets and dust ingress, which is adequate for damp indoor environments like kitchen soffits, laundry areas, or indoor pool surrounds. For locations with standing water or submersion risk, upgrade to the IP67-rated HLG-80H-24.
What are the differences between the HLG-80H-24, 24A, 24AB, and 24B models?
All four share the same 80W / 24V / 3.4A core specs and 195.6 x 61.5 x 38.8 mm dimensions. The base HLG-80H-24 has no output adjustment and is IP67 waterproof. The -24A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -24AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -24B adds dimming input only and retains IP67.
