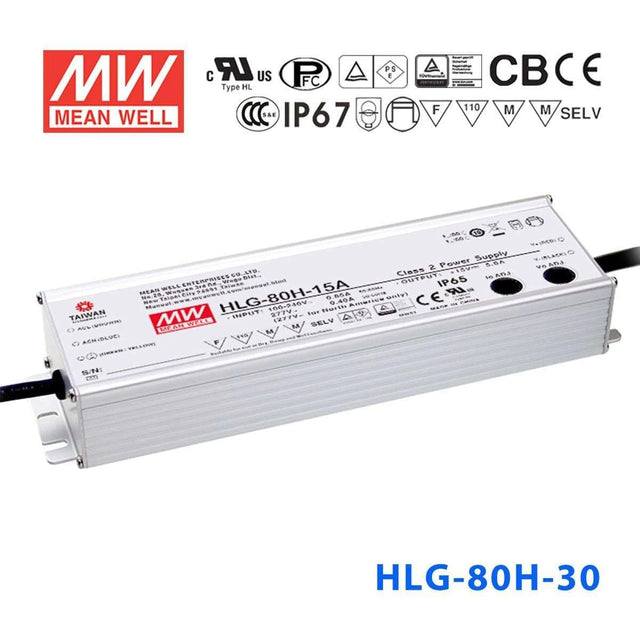

Mean Well HLG-80H-30 Power Supply 80W 30V
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage30 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-30 to power 30V LED modules for outdoor signage?
Yes. The HLG-80H-30 delivers 30V at up to 2.7A (80W) with an IP67 waterproof rating, making it suitable for outdoor LED sign modules that require a 30V supply. Its wide 90-305VAC input handles international mains voltages, which is useful for signage in commercial buildings with varying supply standards.
Is the HLG-80H-30 a good match for 30V constant-current LED fixtures?
Yes. It operates in constant-current mode with a CC voltage range of 18-30V, so it can regulate current to LED fixtures whose forward voltage falls within that range. The 80W maximum ensures it can drive moderate-sized 30V LED arrays or panels without overloading.
Can I use the HLG-80H-30 for outdoor 30V LED strip accent lighting?
Yes. The IP67 waterproof rating protects it in fully exposed rain and wet environments. At 80W and 30V, it will drive 30V LED strips as long as their combined load stays within 80W. Note that this is the base model with fixed output — if you need brightness adjustment, consider the HLG-80H-30A or 30AB variant.
How many meters of 30V LED strip can the HLG-80H-30 support?
That depends on your strip's rated power per meter. The HLG-80H-30 provides up to 80W at 30V. For a strip rated at 8W/m, you could run up to 10 meters (80W / 8W per meter = 10m). Check your strip's rated power per meter and keep total draw at or below 80W.
Can the HLG-80H-30 handle full outdoor rain exposure without an enclosure?
Yes. Its IP67 rating means it is dust-tight and protected against temporary submersion in water up to 1 meter. You can mount it outdoors without an additional enclosure, even in locations subject to direct rain, snow, or hose-down cleaning.
