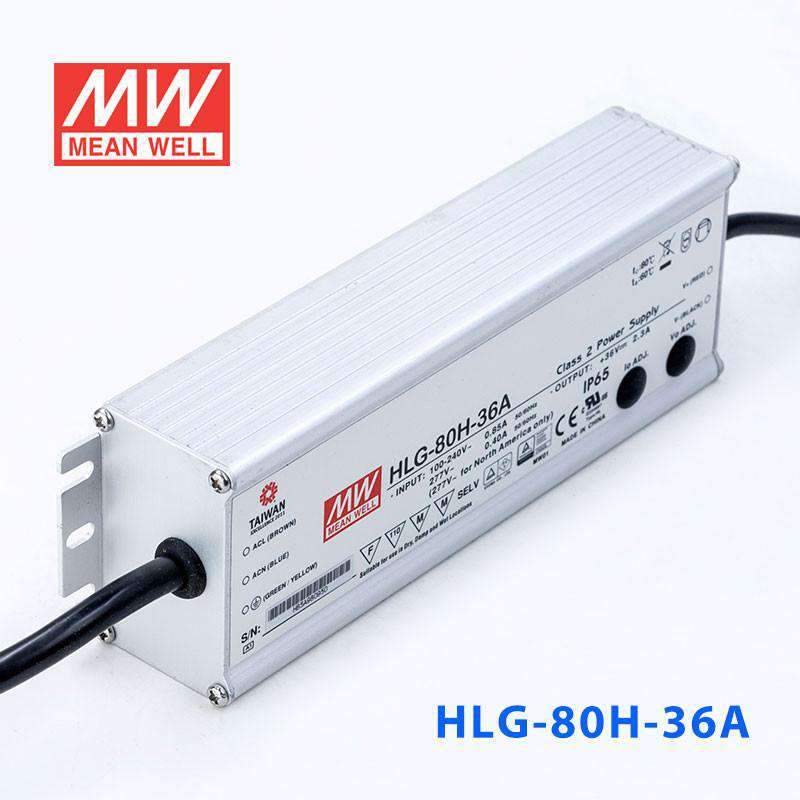

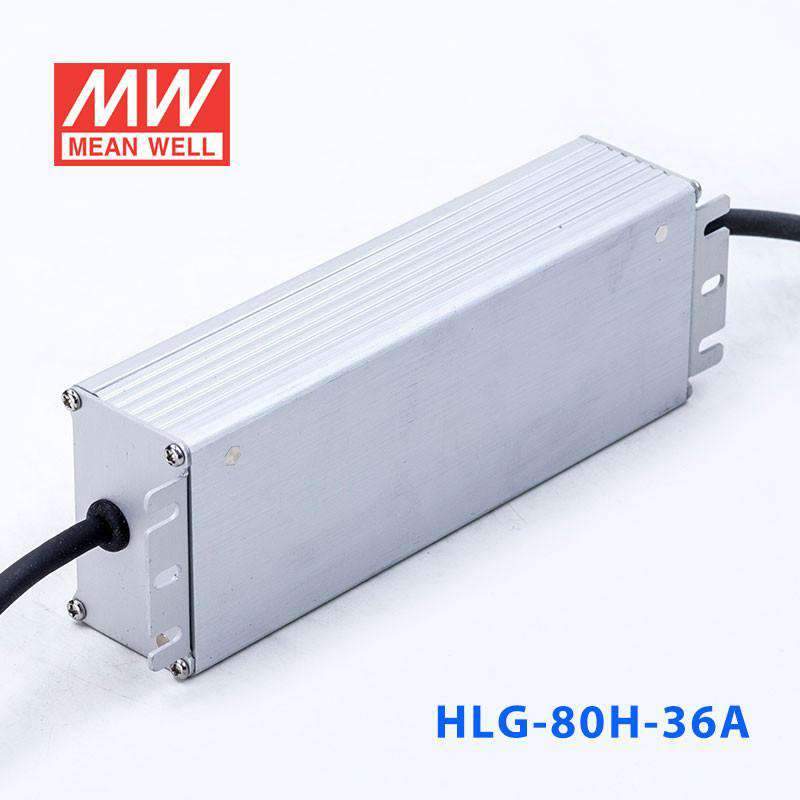

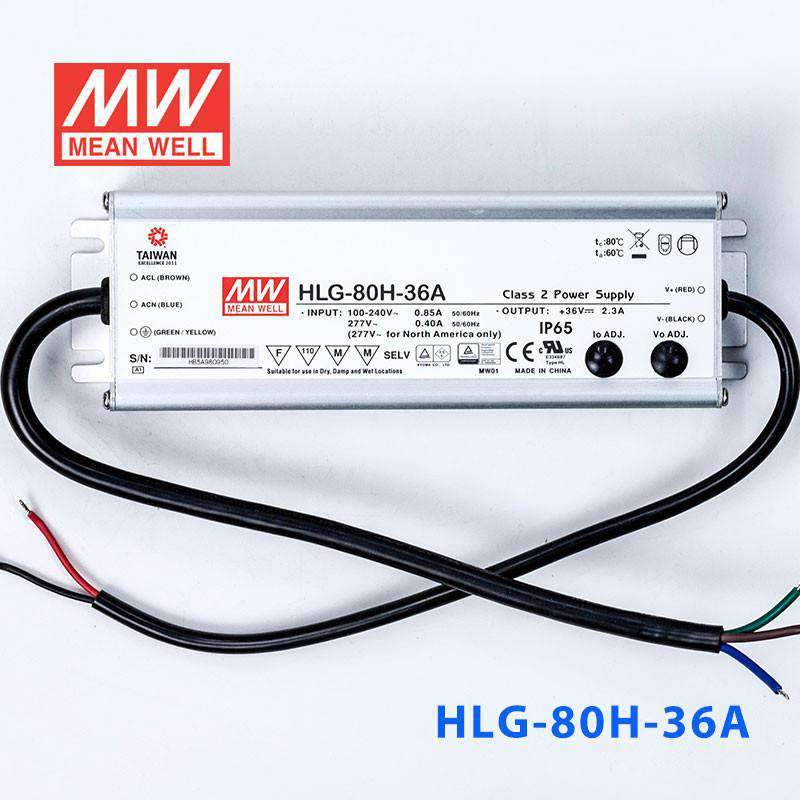

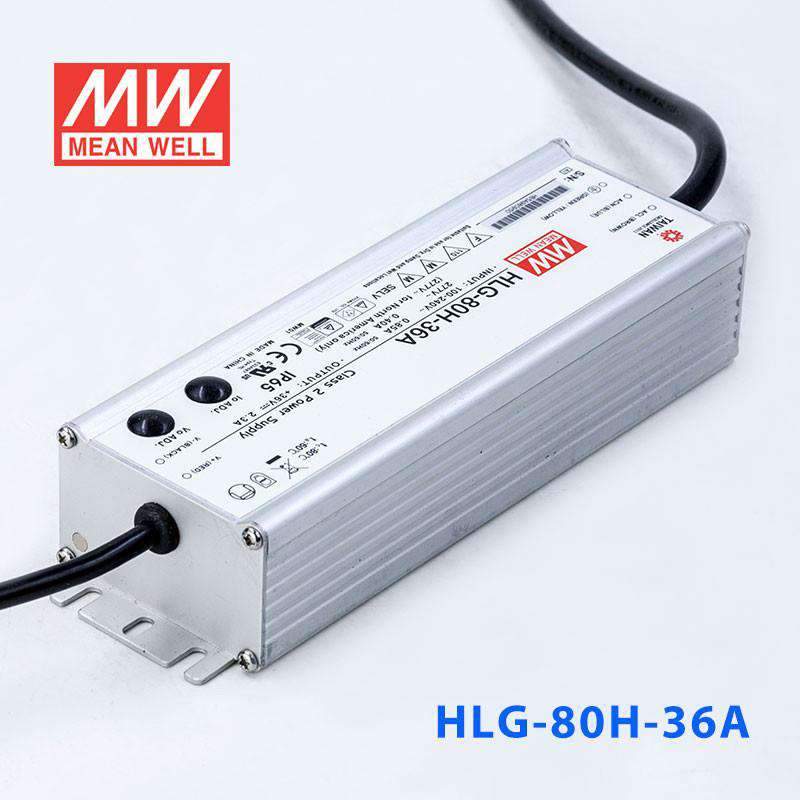

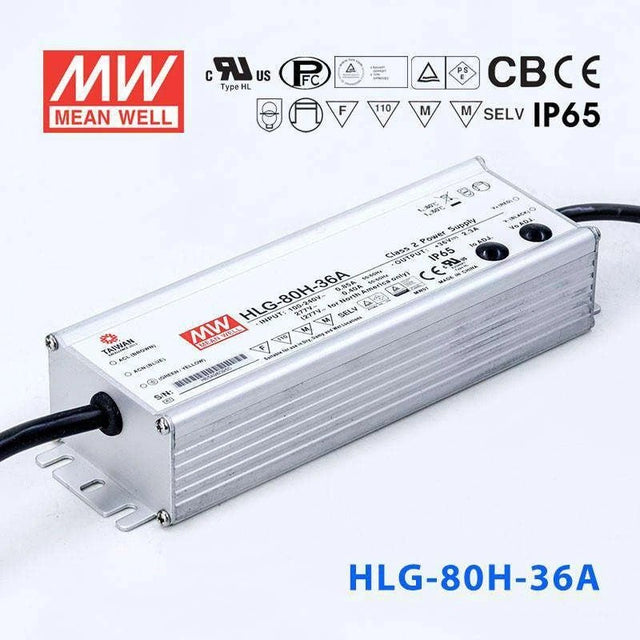

Mean Well HLG-80H-36A Power Supply 80W 36V - Adjustable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage36 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-36A to power 36V LED panel lights with fine-tuned brightness?
Yes. The HLG-80H-36A delivers 36V at up to 2.3A (80W) and includes a built-in potentiometer for adjusting the output voltage and current. This lets you trim brightness on 36V LED panels without an external dimmer, which is useful when matching driver output to a specific panel forward voltage.
Is the HLG-80H-36A a good choice for adjustable 36V LED sign module lighting?
Yes. At 80W and 36V, it can power 36V LED sign modules for channel letters or light boxes. The adjustable potentiometer is helpful for dialing in the precise output level needed by your module string. Its 90-305VAC universal input handles varying commercial mains voltages worldwide.
Can the HLG-80H-36A work with 36V LED strips in a covered outdoor installation?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered patios, canopies, and recessed outdoor soffits. For fully rain-exposed locations without any shelter, an IP67 model like the HLG-80H-36 would be more appropriate.
How many meters of 36V LED strip can the HLG-80H-36A handle?
It depends on your strip's rated wattage per meter. The HLG-80H-36A provides up to 80W at 36V. For a strip rated at 10W/m, you can run up to 8 meters (80W / 10W per meter = 8m). Always verify your strip's rated power per meter and keep total consumption at or below 80W.
Is the IP65 rating on the HLG-80H-36A adequate for a damp indoor environment like a commercial kitchen?
Yes. IP65 provides complete dust protection and resistance to low-pressure water jets from any angle, which covers steam, splashing, and washdown in commercial kitchens or food-prep areas. It cannot be submerged, so avoid mounting it where standing water could accumulate around the unit.
