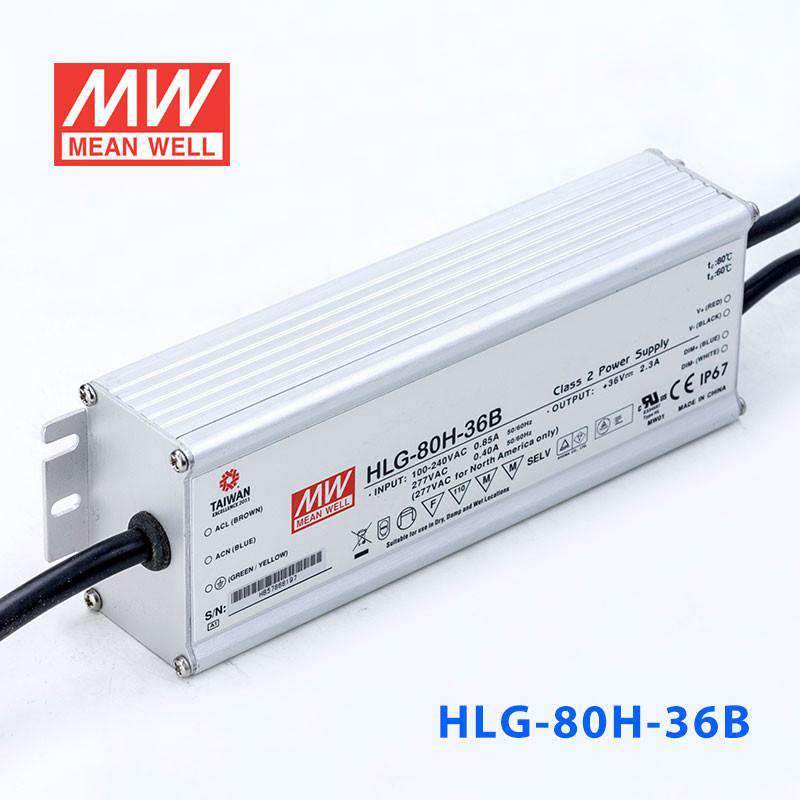

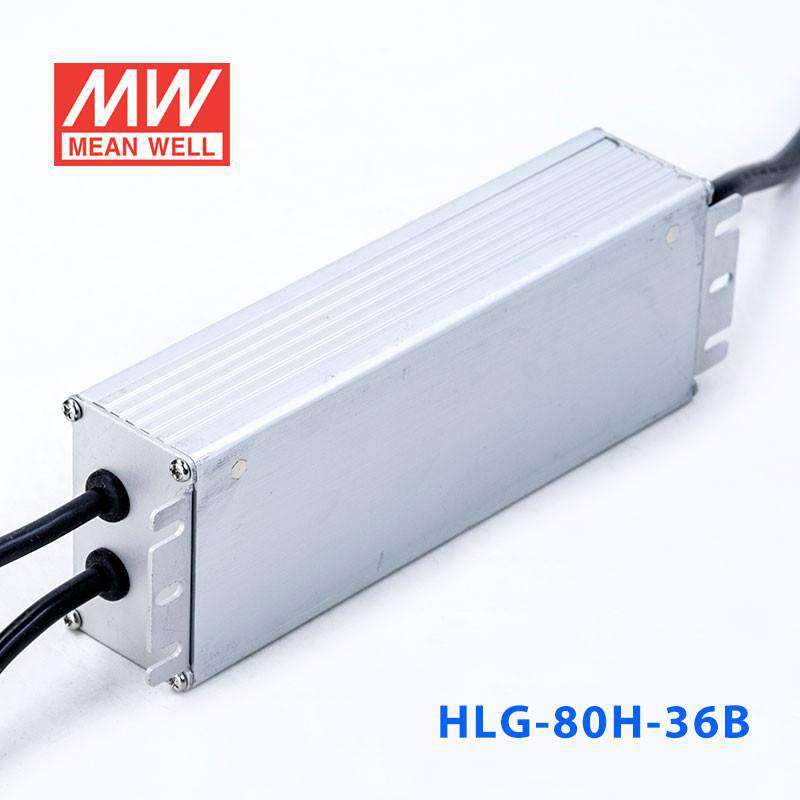

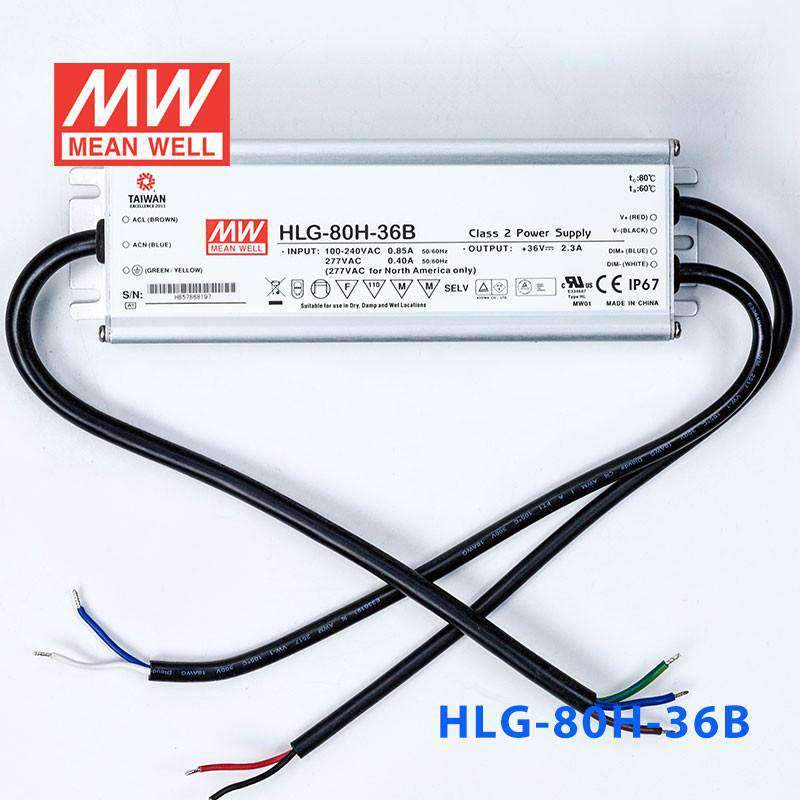

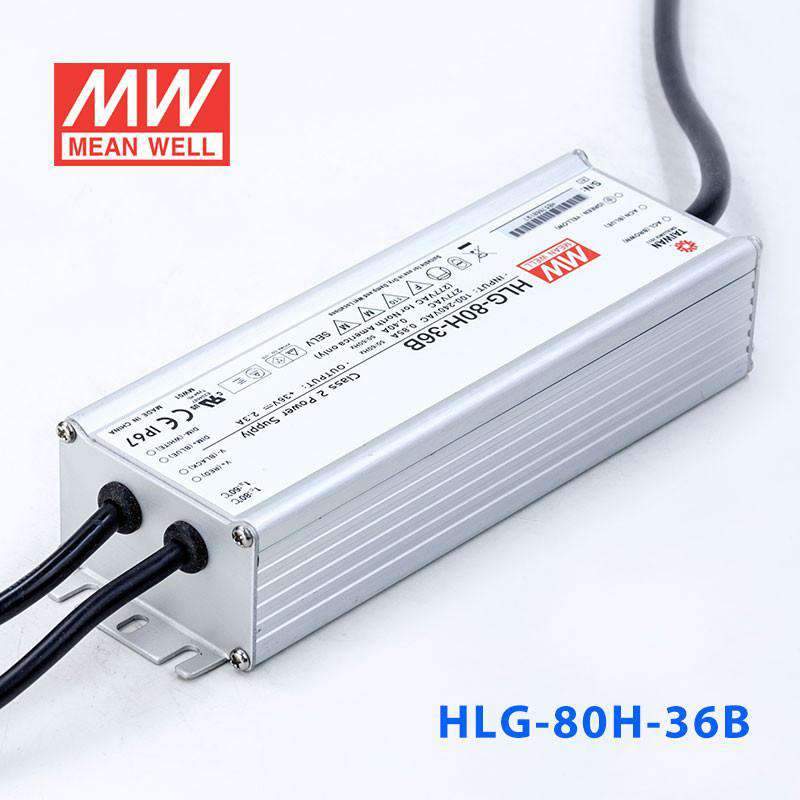

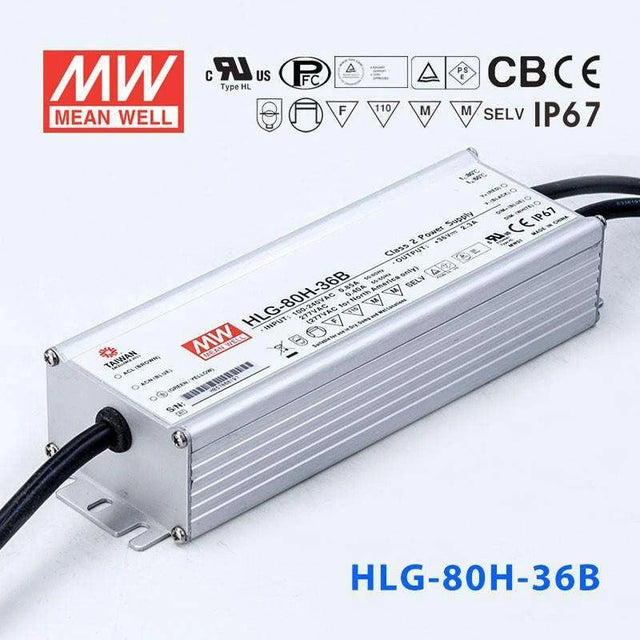

Mean Well HLG-80H-36B Power Supply 80W 36V - Dimmable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage36 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-36B to power 36V LED strips in a fully exposed outdoor installation?
Yes. The HLG-80H-36B delivers 36V at up to 2.3A (80W) and carries an IP67 waterproof rating, so it can be mounted outdoors exposed to rain, snow, and temporary water immersion up to 1 meter. Its aluminium casing and -40°C to +80°C operating range handle harsh weather.
Is the HLG-80H-36B suitable for dimmable 36V outdoor LED signage?
Yes. The B suffix indicates a 1-10V/PWM dimming input, allowing you to control brightness on 36V sign modules from an external dimmer. At 80W with IP67 waterproof protection, it is well suited for outdoor channel letters and light-box signs.
Can the HLG-80H-36B drive 36V LED landscape lighting fixtures?
Yes. With 80W at 36V output and IP67 waterproof construction, the HLG-80H-36B is a strong fit for landscape path lights, garden uplights, or architectural wash fixtures that run on 36V. The dimming input also lets you reduce brightness for evening ambiance.
How many meters of 36V LED strip can the HLG-80H-36B handle?
Divide 80W by your strip's power consumption per meter. For instance, a 36V strip rated at 10W/m would allow up to 8 meters (80W / 10W per meter = 8m). Always check your strip's rated power per meter and keep total draw at or below 80W.
Can the HLG-80H-36B withstand submersion during flooding or heavy rain pooling?
Its IP67 rating protects against temporary submersion in water up to 1 meter deep for up to 30 minutes. This means it can handle occasional puddle flooding or heavy rain pooling, though it is not designed for permanent underwater operation.
