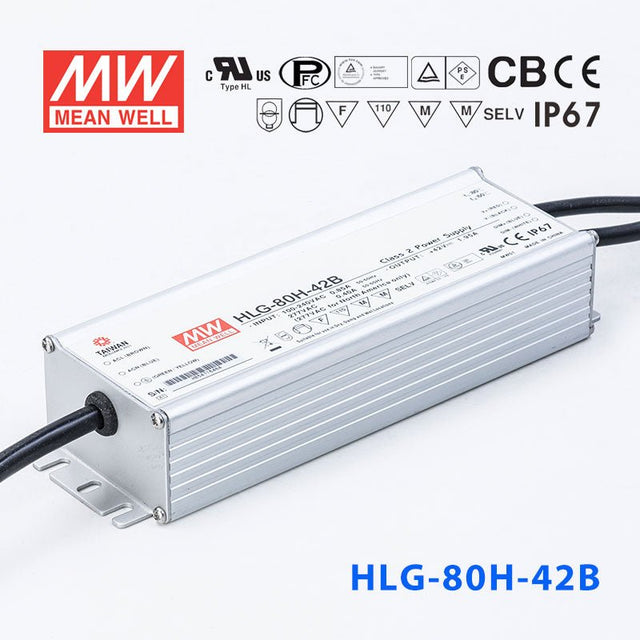

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLG-80H-42AB Power Supply 80W 42V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-42AB Power Supply 80W 42V - Adjustable and Dimmable
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage42 Volt
-
Rated Current1.95 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-42AB to power dimmable 42V LED strip lighting?
Yes. The HLG-80H-42AB outputs 42V at up to 1.95A (80W) and includes both a potentiometer for output adjustment and a 1-10V/PWM dimming input. This makes it ideal for 42V LED strips where you need smooth brightness control from an external dimmer or automation system.
Is the HLG-80H-42AB suitable for smart-home controlled 42V LED lighting?
Yes. The 1-10V/PWM dimming input can be driven by most smart-home lighting controllers and building automation systems. Combined with the adjustable output potentiometer, you get both preset tuning and dynamic brightness control for 42V LED fixtures.
Can the HLG-80H-42AB drive 42V LED architectural accent lighting?
Yes. At 80W and 42V with dimming capability, the HLG-80H-42AB is well suited for architectural cove lighting, wall washers, and accent fixtures. The adjustable CC range of 25-42V lets you match the driver precisely to your LED module's forward voltage requirements.
How many meters of 42V LED strip can the HLG-80H-42AB power?
Divide 80W by your strip's rated power per meter. For instance, a 42V strip consuming 10W/m allows up to 8 meters (80W / 10W per meter = 8m). Always check your strip's rated power per meter and keep total load at or below 80W.
What are the differences between the HLG-80H-42, 42A, 42AB, and 42B models?
All four share 80W / 42V / 1.95A core specs with a CC voltage range of 25-42V. The base HLG-80H-42 has no adjustment or dimming and is IP67 waterproof. The -42A adds output adjustment via potentiometer (IP65). The -42AB adds both adjustment and 1-10V/PWM dimming (IP65). The -42B adds dimming input only and retains IP67.
Can I install the HLG-80H-42AB in a covered outdoor patio or carport?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, which suits covered outdoor areas where splashing rain and dust are present. For fully exposed installations, the IP67-rated HLG-80H-42 or HLG-80H-42B would be more appropriate.
