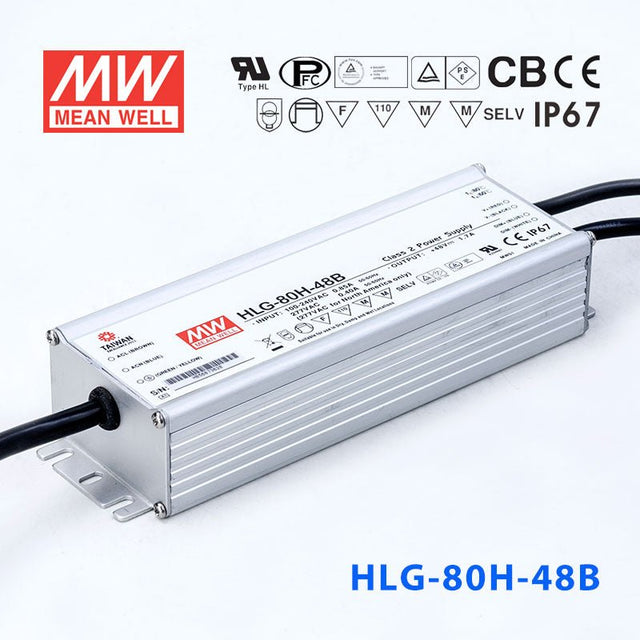

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HLG-80H-48AB Power Supply 80W 48V - Adjustable and Dimmable

Name: Mean Well HLG-80H-48AB Power Supply 80W 48V - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-80H-48AB
Price: 43.74 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiency

SKU:

HLG-80H-48AB

$43.74 USD ~~$161.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY &
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

80 Watt
Output Voltage

48 Volt
Rated Current

1.7 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

7.7 in
Width

2.42 in
Height

1.53 in
Weight

1.85 lb

Frequently Asked Questions

Can I use the HLG-80H-48AB to power 48V LED strip lighting in a covered outdoor setting?

Yes. The HLG-80H-48AB delivers 80W at 48V and carries an IP65 water-resistant rating, so it is suitable for covered patios, canopies, and soffits where splashing water and dust are present. For fully exposed rain locations, consider the IP67-rated HLG-80H-48B instead.

Is the HLG-80H-48AB a good fit for dimmable 48V LED signage?

Yes. It provides 80W at 48V with built-in 1-10V/PWM dimming input, so you can adjust sign brightness remotely or via a building management system. The adjustable output also lets you fine-tune voltage and current with the built-in potentiometer to match your sign module string precisely.

Can I dim 48V LED panel lights with the HLG-80H-48AB?

Yes. The AB suffix means this driver accepts external dimming signals (1-10V or PWM), making it well suited for 48V LED panels in offices or retail spaces where brightness control is needed. The constant-current CC range of 28-48V accommodates panels that operate below the nominal 48V during dimming.

How many meters of 48V LED strip can the HLG-80H-48AB power?

Divide 80W by your strip's rated power per meter. For example, a 48V strip drawing 8W/m would allow up to 10 meters (80W / 8W per meter = 10m). Always check your strip's rated power per meter and keep total load at or below 80W.

Can the HLG-80H-48AB handle dust and moisture in a semi-outdoor installation?

Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, which covers covered walkways, building facades under eaves, and damp industrial spaces. It is not rated for submersion or direct sustained rain exposure — use the IP67-rated HLG-80H-48B for those conditions.

What are the differences between the HLG-80H-48, 48A, 48AB, and 48B variants?

All four share the same 80W / 48V / 1.7A core specs. The base HLG-80H-48 has fixed output and IP67 waterproof rating. The -48A adds output voltage/current adjustment via potentiometer (IP65). The -48AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -48B offers dimming input only and retains IP67 waterproof rating.
