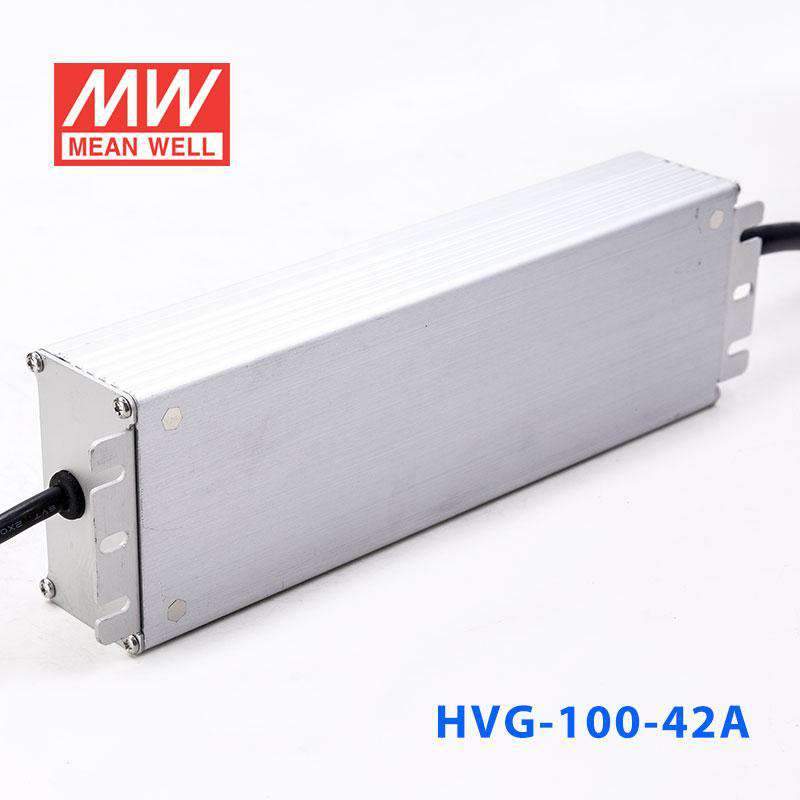

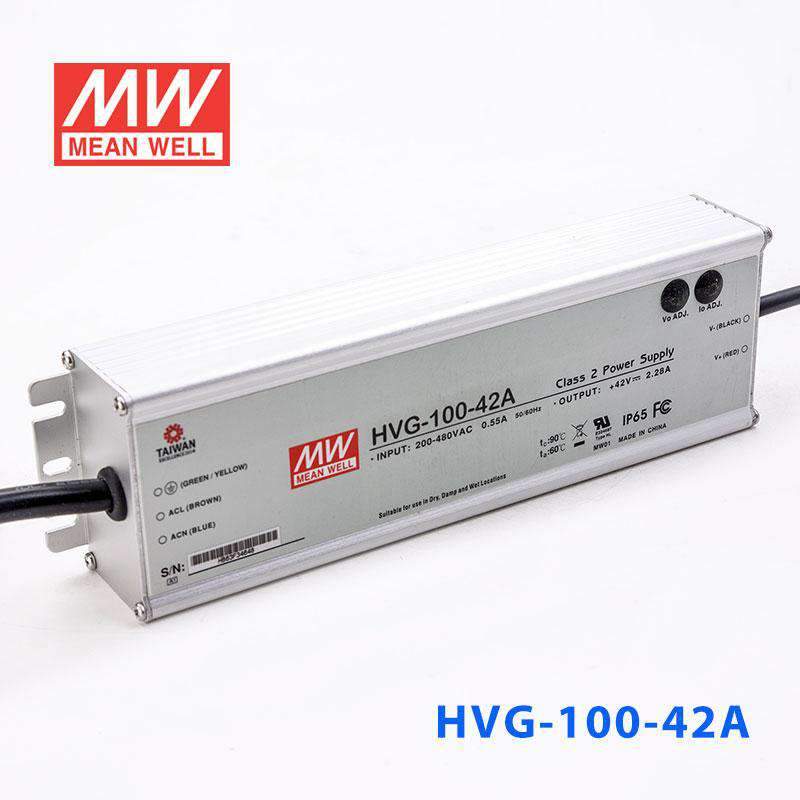

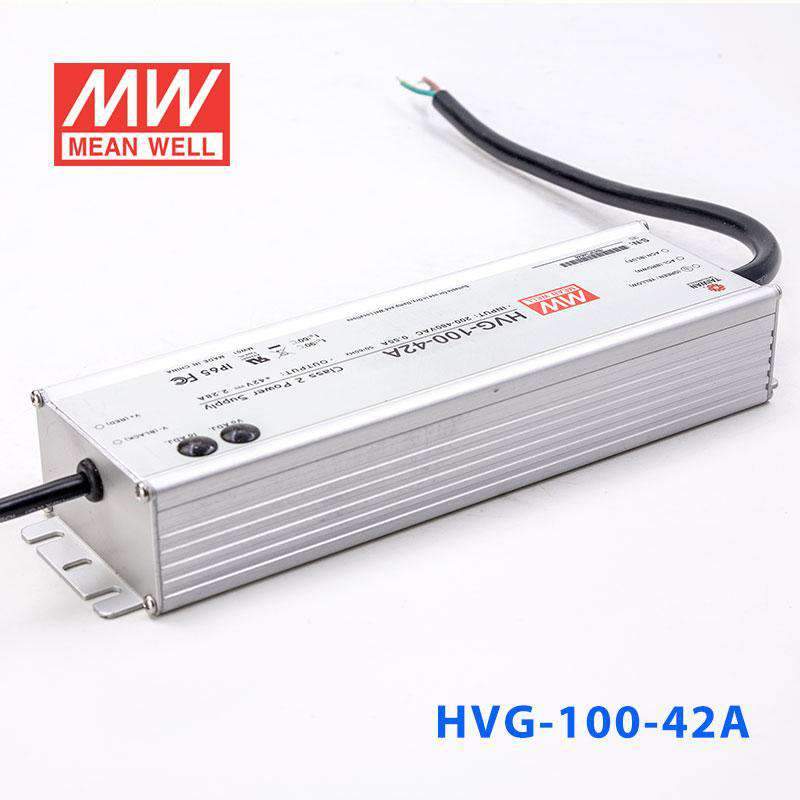

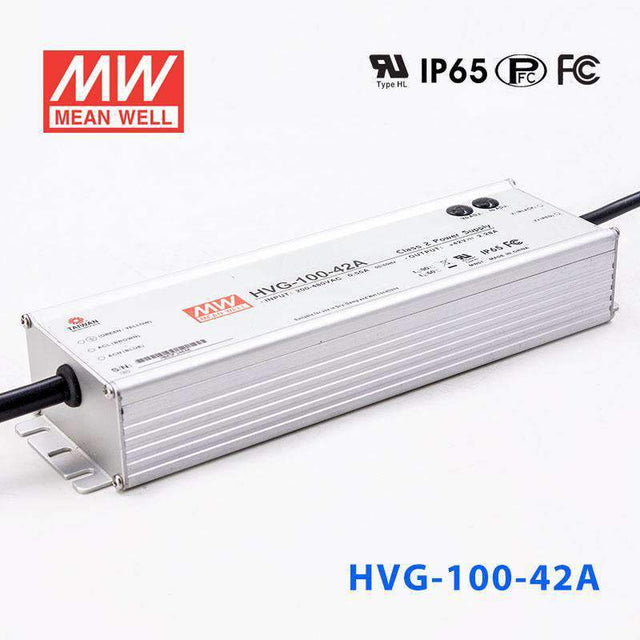

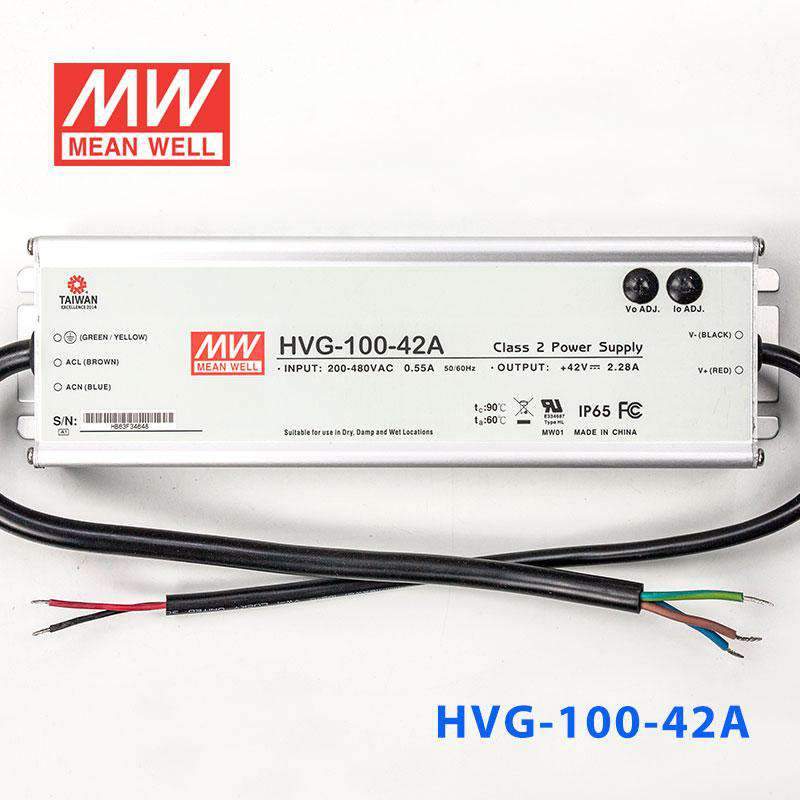

Mean Well HVG-100-42A Power Supply 100W 42V - Adjustable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating95.76 Watt
-
Output Voltage42 Volt
-
Rated Current2.28 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-42A for 42V LED signage or channel lighting?
Yes, it can fit 42V LED signage loads that operate within its 21-42V constant-current range. The maximum output is 95.76W at 42V and 2.28A, so the connected lighting load needs to remain within those limits.
Is the HVG-100-42A suitable for 42V linear or architectural lighting?
It is suitable for 42V constant-current linear or architectural lighting products that match the 21-42V CC range. With 95.76W output capacity and a -40°C to +90°C operating range, it is built for demanding lighting applications when the fixture specs align.
Can this driver be used for a 42V LED strip lighting system?
It can be used for a 42V LED strip system if the strip is compatible with a 42V constant-current driver and the total load stays within 95.76W. The current limit is 2.28A, so that number also has to match the strip or lighting assembly.
How much 42V LED strip can the HVG-100-42A support?
The maximum strip load is 95.76W total. To estimate possible length, divide 95.76W by your strip's rated power per meter; check your strip rated power per meter and confirm that the strip is designed for 42V constant-current operation.
Can the HVG-100-42A be used outdoors?
This model is IP65 water-resistant, so it is suitable for outdoor and damp lighting locations where enclosure-level weather resistance is needed. It is also rated for -40°C to +90°C operation, which supports use across a wide range of conditions.
