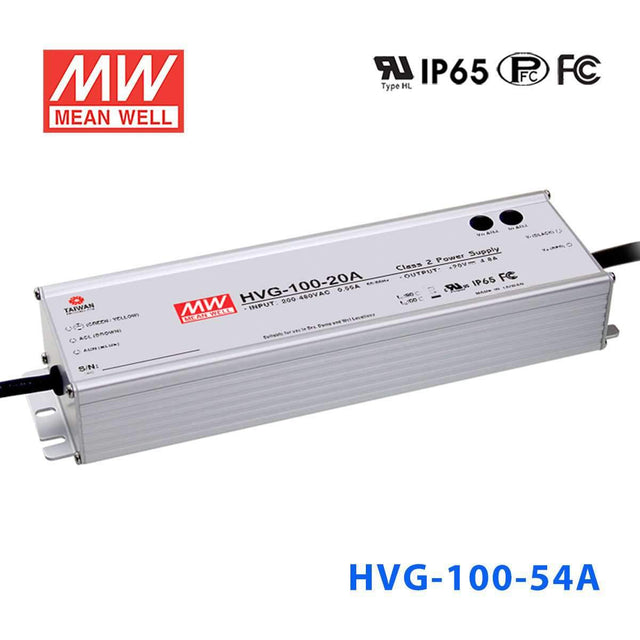

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVG-100-54A Power Supply 100W 54V - Adjustable

Name: Mean Well HVG-100-54A Power Supply 100W 54V - Adjustable
Brand: Mean Well
SKU: HVG-100-54A
Price: 75.83 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-100-54A

$75.83 USD ~~$279.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

95.58 Watt
Output Voltage

54 Volt
Rated Current

1.77 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

9.29 in
Width

2.68 in
Height

1.53 in
Weight

2.6 lb

Frequently Asked Questions

Can I use the HVG-100-54A for a 54V LED lighting load?

Yes, if the LED load is designed for constant current operation within the 27-54V CC range. This model provides up to 95.58W at 54V with 1.77A output current.

Is the HVG-100-54A suitable for high-voltage linear or area lighting modules?

It can be suitable for higher-voltage LED modules that require constant current and operate from 27-54V. Buyers should confirm the module's current requirement matches the driver's 1.77A output.

Can this driver be used for signage or display lighting that runs at 54V?

Yes, when the sign or display load is a constant current 54V-class LED load within the 27-54V range. The total load must stay inside the driver's 95.58W maximum output.

Is the HVG-100-54A appropriate for outdoor covered locations?

This model has an IP65 water-resistant rating, so it is designed for environments where protection from dust and water exposure is needed. It is not the IP67 waterproof version of the series, so the installation environment should reflect that difference.

How much 54V LED strip load can this driver support?

The driver's maximum output power is 95.58W. To estimate strip length, calculate 95.58W ÷ strip watts per meter = maximum meters, then check your strip rated power per meter and confirm it is compatible with a 54V constant current driver.

How does the HVG-100-54A compare with other HVG-100 voltage options?

The HVG-100 range is available in 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 30V 96W 3.2A, 36V 95.4W 2.65A, 42V 95.76W 2.28A, 48V 96W 2A, and 54V 95.58W 1.77A versions. The 54A model is the highest-voltage option in that 100W group and correspondingly has the lowest output current among those HVG-100 variants.
