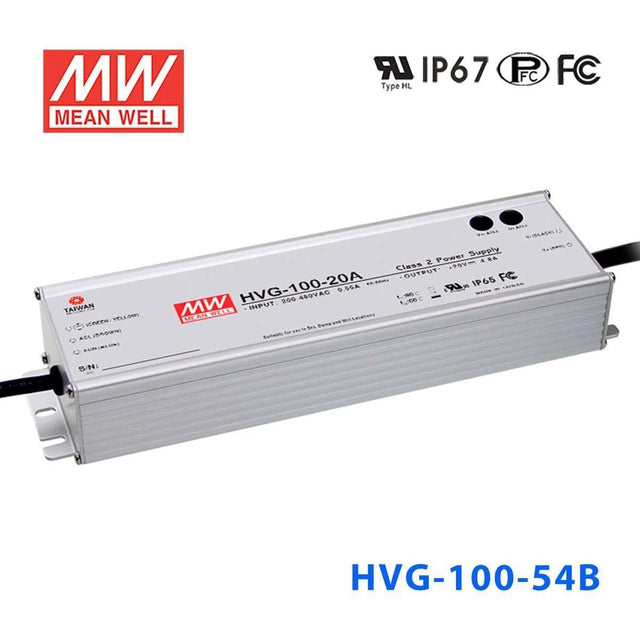

Mean Well HVG-100-54AB Power Supply 100W 54V - Adjustable and Dimmable

Name: Mean Well HVG-100-54AB Power Supply 100W 54V - Adjustable and Dimmable
Brand: Mean Well
SKU: HVG-100-54AB
Price: 77.79 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-100-54AB

$77.79 USD ~~$291.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

95.58 Watt
Output Voltage

54 Volt
Rated Current

1.77 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

9.29 in
Width

2.68 in
Height

1.53 in
Weight

2.6 lb

Frequently Asked Questions

Can I use the HVG-100-54AB for outdoor architectural lighting?

Yes, if your LED load is a 54V constant-current system that operates within the 27-54V CC range and draws no more than 1.77A. With 95.58W output and an IP65 water-resistant housing, it fits exterior architectural lighting where a sealed driver is needed.

Is this driver suitable for a 54V illuminated sign or channel-letter project?

It can be used for signage lighting when the sign uses a 54V constant-current LED load within 27-54V and up to 1.77A. The 95.58W output gives it capacity for moderate sign lighting runs, and the IP65 enclosure supports damp or outdoor sign environments.

Can I use this for dimmable 54V linear LED lighting?

Yes, this model is intended for 54V dimmable LED lighting systems that stay inside the 27-54V constant-current range. Its maximum output is 95.58W at 1.77A, so the fixture or strip system needs to match those limits.

How much 54V LED strip can this power?

Use the strip-length formula: 95.58W divided by your strip's rated watts per meter equals the theoretical maximum length. The output is 54V and 1.77A, so the strip also needs to be a 54V load that fits within those limits. Check your strip rated power per meter before sizing the run.

Can the HVG-100-54AB be used in wet or outdoor locations?

Its IP65 water-resistant rating makes it suitable for outdoor and wet-area lighting where a sealed driver is needed. It is built for harsh conditions with a -40°C to +90°C operating temperature range, but the application should still match the product's water-resistant rating rather than an immersion-rated requirement.

How does the HVG-100-54AB compare with the other 54V HVG-100 models?

Within the 54V HVG-100 group, the HVG-100-54A, HVG-100-54AB, and HVG-100-54B are all rated at 95.58W, 54V, and 1.77A. The HVG-100-54D is the lower-power option at 75W. That means this model matches the main 54V, 95.58W platform rather than the 75W D version.
