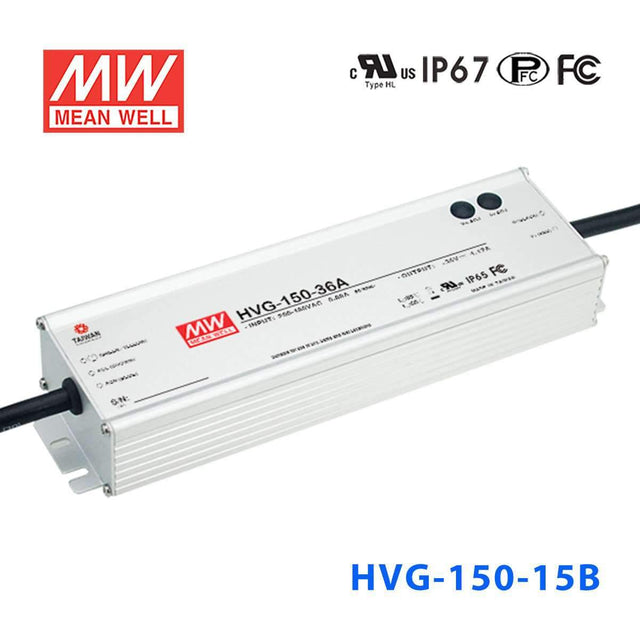

Mean Well HVG-150-15B Power Supply 150W 15V - Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-15B for outdoor 15V LED strip lighting?
Yes, this model combines a 15V output with an IP67 waterproof rating, which makes it suited to outdoor strip lighting projects with heavier exposure to water. The total 15V load still needs to stay within 150W, which is 10A at 15V.
Is this a good power supply for 15V sign lighting in exposed weather?
It can be a fit for 15V sign lighting where the load stays within 150W and 10A. Compared with the IP65 water-resistant versions, this one is the IP67 waterproof option in the 150W 15V group.
Can the HVG-150-15B be used for 15V landscape-adjacent lighting?
Yes, for 15V lighting loads near outdoor exposure where a waterproof housing is preferred. Its operating temperature range is -40°C to +80°C, so it is rated for both cold and hot environments.
Can this model run 15V decorative lighting in wet commercial spaces?
It can be used for 15V decorative lighting systems up to 150W where wet-location protection matters. Because the output is 15V at 10A, it should be matched only to 15V lighting products within that capacity.
How much 15V LED strip can the HVG-150-15B power?
The driver supports up to 150W total, equal to 10A at 15V. To estimate maximum strip length, calculate 150W ÷ your strip watts per meter, and check your strip rated power per meter before final sizing.
Is the HVG-150-15B suitable for wet or outdoor locations?
Yes, this version is rated IP67 waterproof, so it is the more water-protected 15V 150W option among the listed siblings. That makes it better suited to outdoor and wet-location use than the IP65 water-resistant variants when the project calls for a higher enclosure rating.
