Can I use the HVG-150-24A for a 24V LED strip lighting project?

Yes, if the strip is designed for 24V operation and the total load does not exceed 150W. This driver outputs 24V at up to 6.25A and has a 13-24V constant current range, so the strip or fixture needs to be compatible with that output profile.

Is the HVG-150-24A suitable for 24V LED signage or lightbox lighting?

It can be used for 24V LED signage or lightbox systems that stay within the 150W rating. The 24V output and 6.25A maximum current make it suitable for medium-power signage loads that match the driver's constant current operation.

Can this driver power 24V linear lighting or cabinet lighting runs?

Yes, for 24V linear lighting loads that do not exceed 150W total. The driver provides up to 6.25A at 24V, so it is better suited to longer or higher-power 24V runs than lower-wattage models in the same family.

Is the HVG-150-24A OK for damp or semi-exposed locations?

It is rated IP65, so it is water-resistant rather than fully waterproof. That makes it suitable for indoor use and for locations where dust and water spray are concerns, but it is not the same enclosure level as the IP67 versions in the series.

How do I estimate the maximum 24V LED strip length this driver can support?

Calculate it as 150W divided by the strip's rated watts per meter. The formula is maximum length = 150W / strip W per meter, and you should check your strip rated power per meter and confirm it is designed for 24V operation.

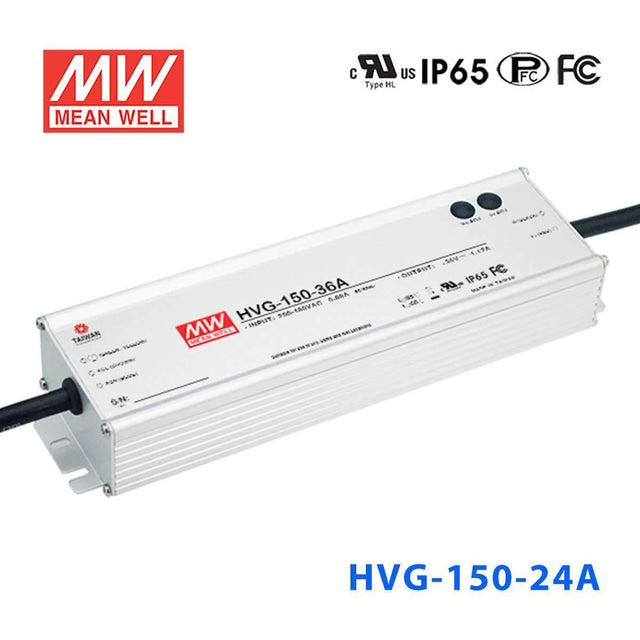

Mean Well HVG-150-24A Power Supply 150W 24V - Adjustable

Name: Mean Well HVG-150-24A Power Supply 150W 24V - Adjustable
Brand: Mean Well
SKU: HVG-150-24A
Price: 75.25 USD
Availability: InStock

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.65 in
Width

2.68 in
Height

1.53 in
Weight

2.73 lb
