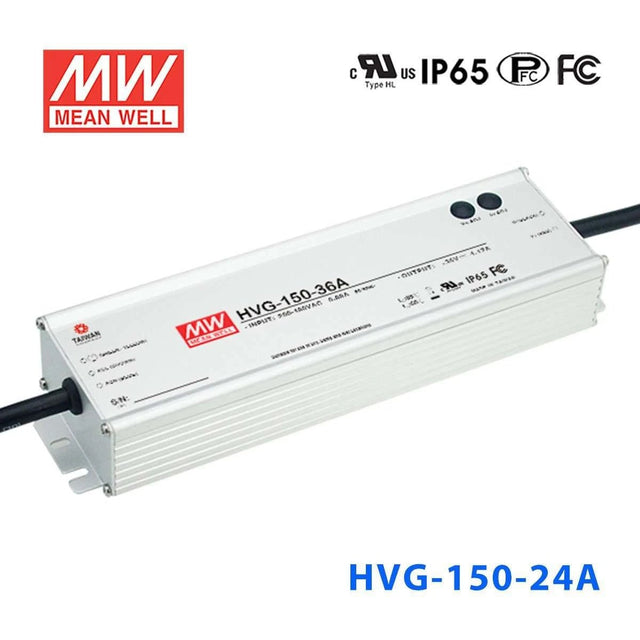

Mean Well HVG-150-24AB Power Supply 150W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-150-24AB Power Supply 150W 24V - Adjustable and Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-24AB for dimmable 24V LED strip lighting?
Yes, if the strip is a 24V load that stays within the 150W maximum. This model is a 24V, 6.25A driver with a 13-24V constant current range, so the strip or fixture needs to be compatible with that output behavior.
Is this a good fit for 24V retail display or shelf lighting?
It can be used for 24V display lighting loads that require up to 150W. With 24V output and 6.25A available, it fits larger 24V lighting sections than the 96W 24V siblings in the same series.
Can the HVG-150-24AB be used for 24V illuminated signage?
Yes, for 24V signage assemblies that are compatible with the driver's constant current operation and stay within 150W. Its wide 180-528VAC input also helps in projects where the available AC supply varies within that range.
Can I use this driver in outdoor or washdown areas?
This model is rated IP65, which means it is water-resistant rather than fully waterproof. It is suitable where dust and water spray are expected, but for heavier wet exposure the IP67 versions in the same family provide a higher enclosure rating.
What is the difference between the HVG-150-24A, HVG-150-24AB, HVG-150-24B, and HVG-150-24D?
The HVG-150-24A, HVG-150-24AB, and HVG-150-24B are all listed at 150W, 24V, and 6.25A. The HVG-150-24D sibling is listed at 120W, so the key factual difference in the sibling set is the lower power rating on the D version.
