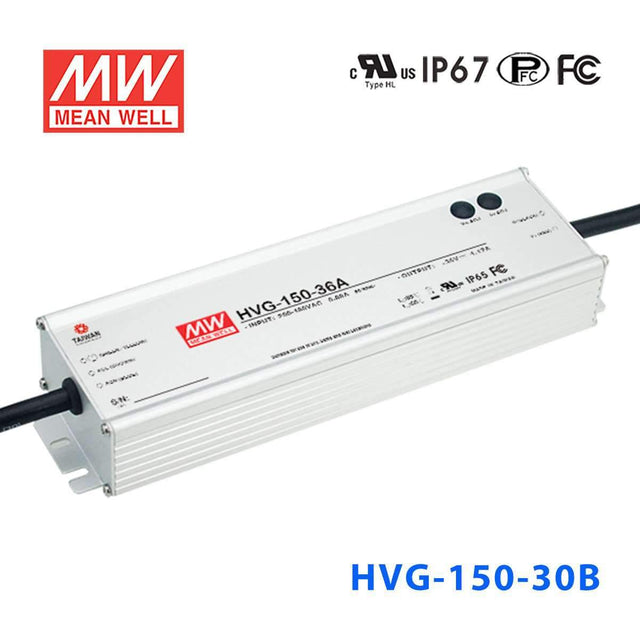

Mean Well HVG-150-30B Power Supply 150W 30V - Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage30 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-30B for outdoor 30V LED strip lighting?
Yes, if the LED strip is rated for 30V and the total load stays within 150W and 5A. This version has an IP67 waterproof rating, which gives it stronger environmental protection than water-resistant models for exposed lighting locations.
Is the HVG-150-30B suitable for wet-location signage lighting?
It can be used for 30V signage or lighting loads that stay within the 16-30V constant current range and 150W maximum. Because the enclosure is IP67 waterproof, it is better suited to wet outdoor environments than an IP65 version.
Can this driver power a 30V linear lighting fixture in harsh weather?
Yes, for a 30V fixture that operates within 16-30V constant current and does not exceed 5A or 150W. The combination of IP67 protection and an operating temperature range of -40°C to +85°C suits demanding outdoor conditions.
Is this a good fit for dimmable 30V area or facade lighting?
Yes, this is the dimmable 150W 30V version and it provides up to 5A output. It is intended for 30V LED lighting loads that need dimming support and stronger waterproof protection.
How much 30V LED strip can the HVG-150-30B support?
Calculate maximum strip length by dividing 150W by the strip's rated watts per meter. That gives the length limit in meters, and you should also verify the strip is a 30V load that fits the 16-30V constant current range.
Can the HVG-150-30B be used in fully exposed outdoor conditions?
This model is rated IP67 waterproof, so it is designed for stronger protection against water and dust than IP65 models. That makes it a better choice for exposed outdoor environments where the driver may face heavy weather.
