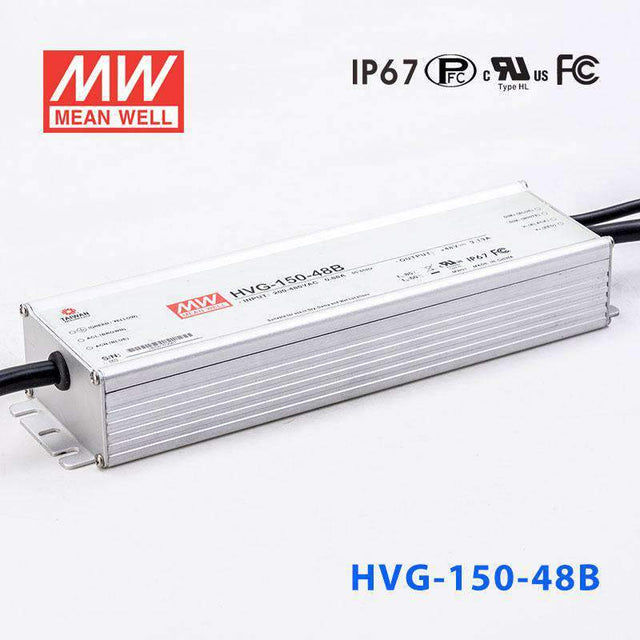

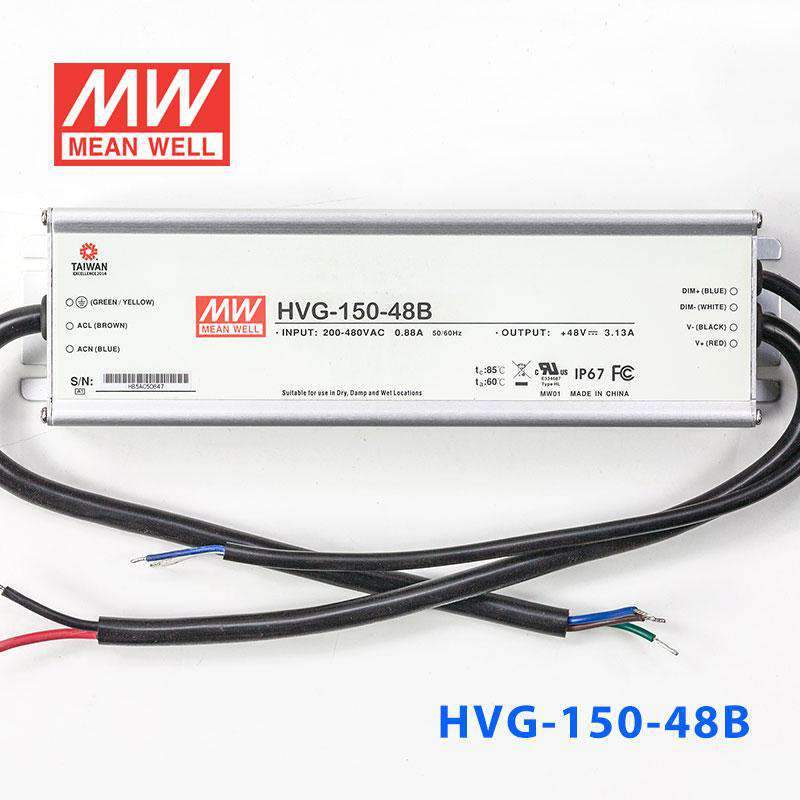

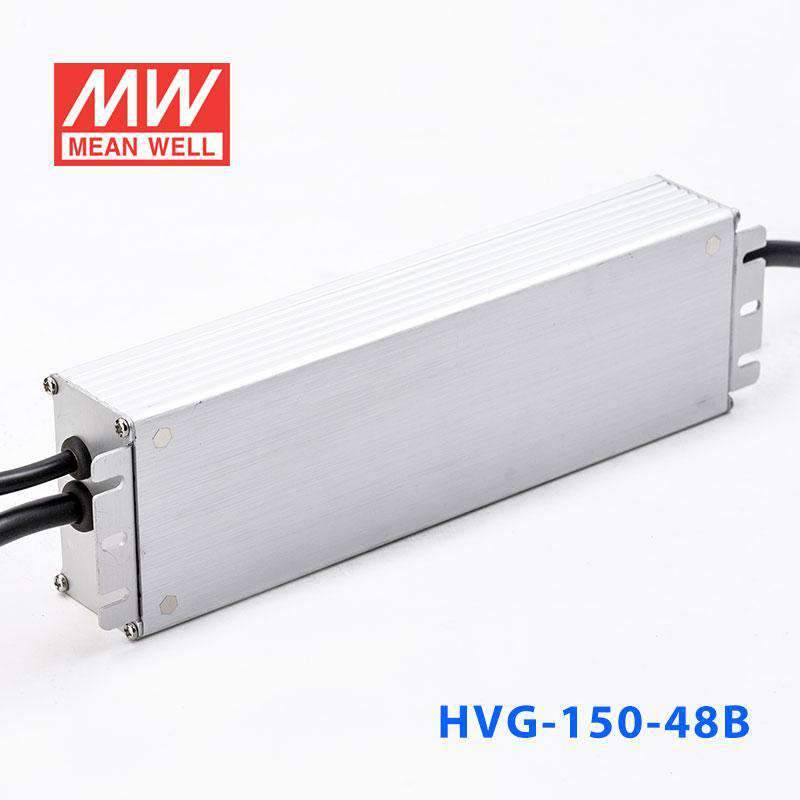

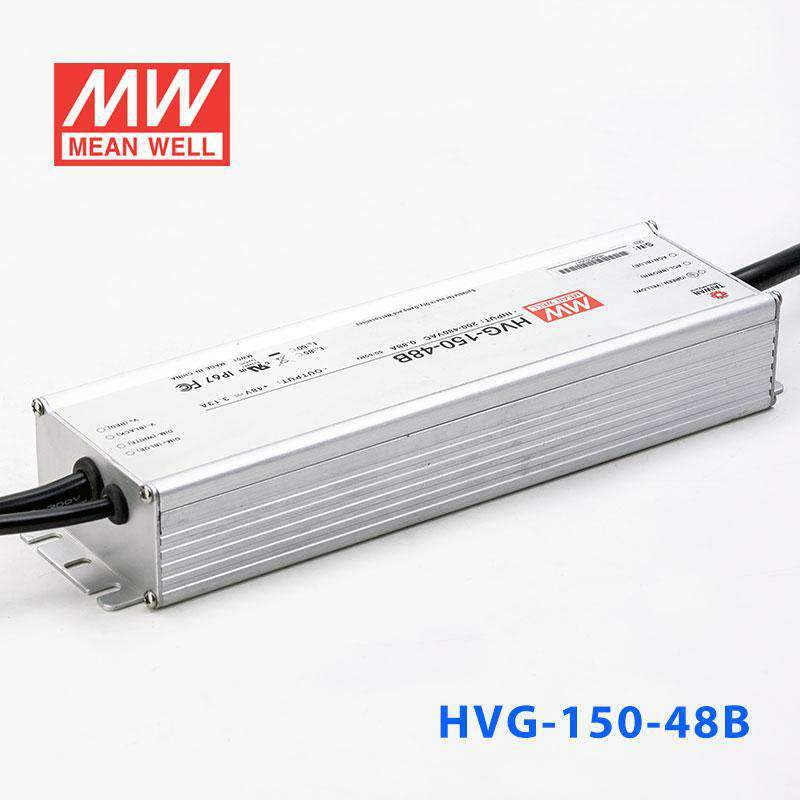

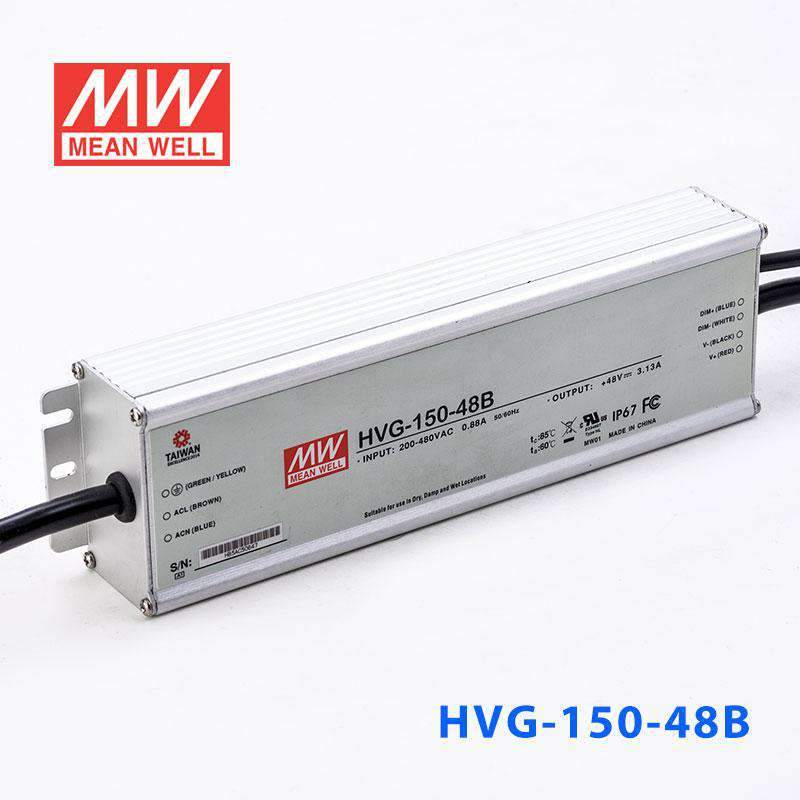

Mean Well HVG-150-48B Power Supply 150W 48V - Dimmable
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150.24 Watt
-
Output Voltage48 Volt
-
Rated Current3.13 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVG-150-48B for a 48V LED strip lighting run?
Yes, if the strip or lighting load is designed for 48V operation and stays within the driver's 150.24W maximum output. This model delivers up to 3.13A at 48V, so it is suited to longer 48V lighting runs than lower-power 48V options. Check your strip rated power per meter before sizing the run.
Is this driver suitable for 48V LED signage or illuminated letters outdoors?
It can be used for 48V LED signage or lighting assemblies that need up to 150.24W at 48V. The IP67 waterproof rating supports exposed outdoor locations where the driver may face rain or washdown conditions. Confirm the total load does not exceed 3.13A output current.
Can the HVG-150-48B power exterior architectural or facade lighting?
It is a fit for 48V exterior lighting applications that need up to 150.24W and benefit from an IP67 waterproof housing. The operating temperature range of -40°C to +85°C also supports demanding ambient conditions. Make sure the connected 48V load falls within the 26-48V constant-current range.
How much 48V LED strip can this driver support?
The maximum output power is 150.24W, so strip length is calculated as 150.24W divided by your strip watts per meter. For example, a 48V strip rated at 19.2W/m would calculate to about 7.83m because 150.24 / 19.2 = 7.83. Check your strip rated power per meter and keep the total load within 150.24W and 3.13A.
Is the HVG-150-48B safe for wet or fully exposed outdoor locations?
This model is rated IP67, which means it is intended for waterproof use in wet outdoor environments. It is better suited to direct weather exposure than an IP65 water-resistant unit. The aluminium casing and -40°C to +85°C operating range also support harsh environments.
What is the difference between the HVG-150-48A, HVG-150-48AB, HVG-150-48B, and HVG-150-48D?
The HVG-150-48A, HVG-150-48AB, and HVG-150-48B all share the same 150.24W, 48V, and 3.13A electrical rating. The HVG-150-48D is the lower-power sibling at 120W. Within this 48V group, the main difference is model variant rather than output voltage, while D is the reduced-wattage option.
