Can the HVG-320-30B be used for waterproof outdoor LED lighting projects?

Yes, this model has an IP67 waterproof rating, which is higher than IP65 water-resistant versions in the same family. It is also rated for -40°C to +85°C operation, so it is suited to exposed outdoor lighting environments when the LED load matches the driver output.

Is the HVG-320-30B suitable for 30V constant-current signage lighting?

Yes, if the signage lighting uses a constant-current LED load within the 15-30V range. The driver is rated for 30V output, up to 10.7A, and 321W maximum power.

Can I use this driver for high-power 30V LED modules in wet locations?

It can be a fit for wet-location LED modules that require a constant-current driver in the 15-30V range. The IP67 enclosure helps with water exposure, and the unit can supply as much as 321W at 10.7A.

How do I estimate LED strip length for the HVG-320-30B?

Use 321W divided by your strip's rated watts per meter to estimate the maximum length. That calculation only applies to LED strip systems designed for a 30V constant-current driver, and you should check your strip rated power per meter before sizing.

Is the HVG-320-30B better for wet environments than the HVG-320-30A or HVG-320-30AB?

For enclosure rating, yes: the HVG-320-30B is listed as IP67 waterproof, while the HVG-320-30A and HVG-320-30AB are IP65 water-resistant. The three 30V versions otherwise share the same series electrical specs of 321W, 30V, and 10.7A.

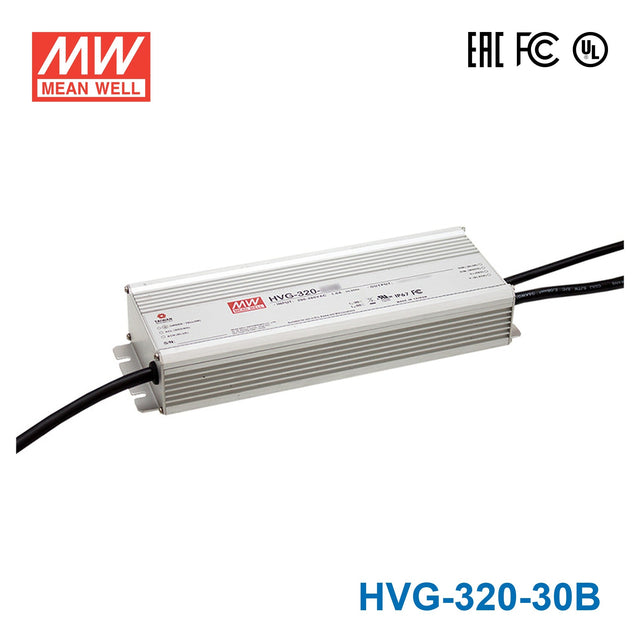

Mean Well HVG-320-30B Power Supply | 320W 30V - Dimmable | Constant Voltage + Constant Current LED Driver

Name: Mean Well HVG-320-30B Power Supply 320W 30V - Dimmable
Brand: Mean Well
SKU: HVG-320-30B
Price: 128.74 USD
Availability: InStock

The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

321 Watt
Output Voltage

30 Volt
Rated Current

10.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVG-320-54B Power Supply 320W 54V - Dimmable	324W	54V	6A	IP67	$127.02	View
Mean Well HVG-320-54AB Power Supply 320W 54V - Adjustable and Dimmable	324W	54V	6A	IP65	$129.69	View
Mean Well HVG-320-54A Power Supply 320W 54V - Adjustable	324W	54V	6A	IP65	$123.23	View
