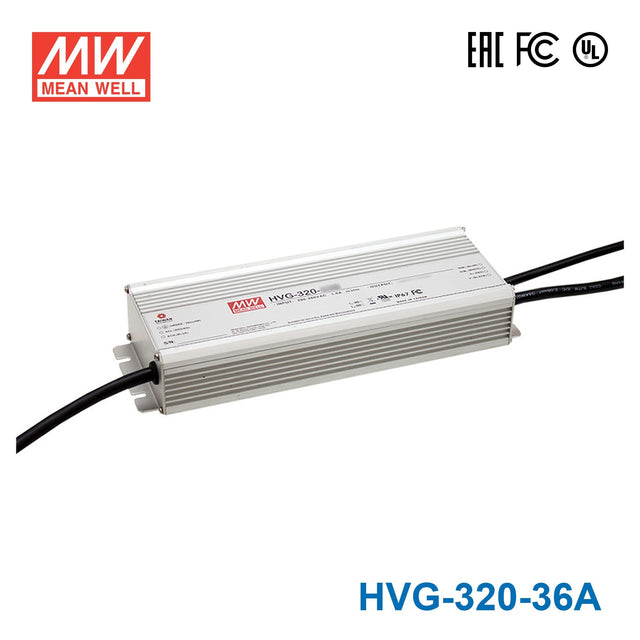

Mean Well HVG-320-36A Power Supply 320W 36V - Adjustable
The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating320.4 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
::specification::
Frequently Asked Questions
Can I use the HVG-320-36A for a 36V constant-current LED fixture?
Yes, this model is designed for constant-current LED loads within an 18-36V range and has a 36V rated output. It can deliver up to 8.9A and 320.4W, so the fixture needs to fit both the voltage range and current level.
Is the HVG-320-36A suitable for outdoor architectural lighting?
It can be used in outdoor architectural lighting where an IP65 water-resistant driver is acceptable. The operating temperature range of -40°C to +85°C supports use in demanding indoor or outdoor conditions.
Can this driver run larger 36V LED modules for signage or illumination?
Yes, if the LED modules are constant-current types that operate within 18-36V. With 320.4W output power and 8.9A output current, it is suited to larger 36V lighting loads compared with lower-power 36V HVG models.
How much LED strip can the HVG-320-36A support?
The sizing formula is 320.4W divided by your strip's rated watts per meter. That gives the theoretical maximum length, but only use it for LED strip systems designed for a 36V constant-current driver, and check your strip rated power per meter before sizing.
How does the HVG-320-36A compare with other 36V HVG options?
The listed 36V siblings include HVG-100-36A at 95.4W and 2.65A, HVG-150-36A at 150.12W and 4.17A, HVG-240-36A at 241.2W and 6.7A, and HVG-320-36A at 320.4W and 8.9A. They share the same 36V output class, with higher wattage models providing higher output current.
