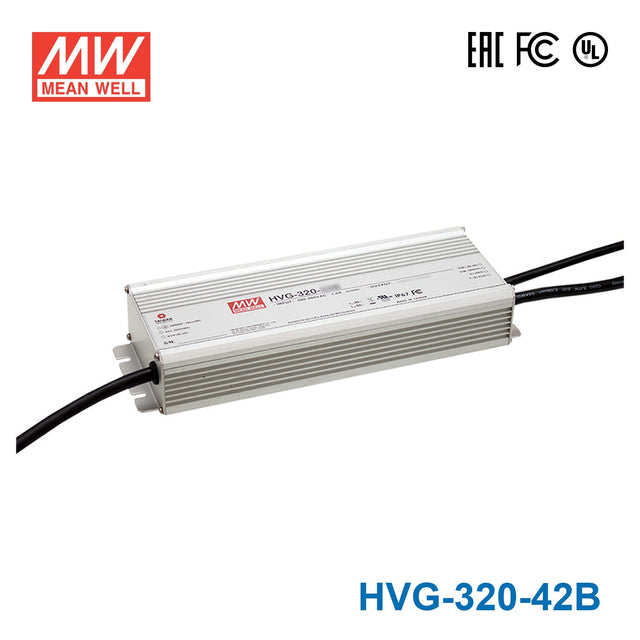

Mean Well HVG-320-42B Power Supply 320W 42V - Dimmable
The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating319.2 Watt
-
Output Voltage42 Volt
-
Rated Current7.6 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
::specification::
Frequently Asked Questions
Can I use the HVG-320-42B for fully exposed outdoor 42V LED lighting?
Yes, it is suited to exposed outdoor 42V LED lighting when the load matches a constant-current driver and stays within 319.2W and 7.6A. The IP67 waterproof rating is stronger for wet locations than an IP65 housing.
Is the HVG-320-42B a good choice for landscape or exterior accent lighting?
It can be used for landscape or exterior accent lighting built around a 42V constant-current load within the 21-42V CC range. Its IP67 waterproof enclosure and -40°C to +85°C operating range support demanding outdoor conditions.
Can this model run 42V constant-current signage lighting in rainy environments?
Yes, if the signage lighting system is a 42V constant-current load and the total demand does not exceed 319.2W or 7.6A. The IP67 waterproof rating makes it suitable for wetter outdoor locations than a water-resistant enclosure.
How much 42V LED strip can the HVG-320-42B handle?
Use the sizing formula 319.2W ÷ your strip's rated watts per meter = maximum estimated length. Check your strip rated power per meter and confirm the strip is designed for 42V constant-current use before finalizing the load.
Is the HVG-320-42B better for wet locations than IP65 versions?
For wet environments, the key difference is that this model is rated IP67 waterproof. It also operates from -40°C to +85°C, so it is built for harsher environmental exposure than an IP65 water-resistant version.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HVG-320 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HVG-320-54B Power Supply 320W 54V - Dimmable | 324W | 54V | 6A | IP67 | $127.02 | View |
| Mean Well HVG-320-54AB Power Supply 320W 54V - Adjustable and Dimmable | 324W | 54V | 6A | IP65 | $129.69 | View |
| Mean Well HVG-320-54A Power Supply 320W 54V - Adjustable | 324W | 54V | 6A | IP65 | $123.23 | View |
