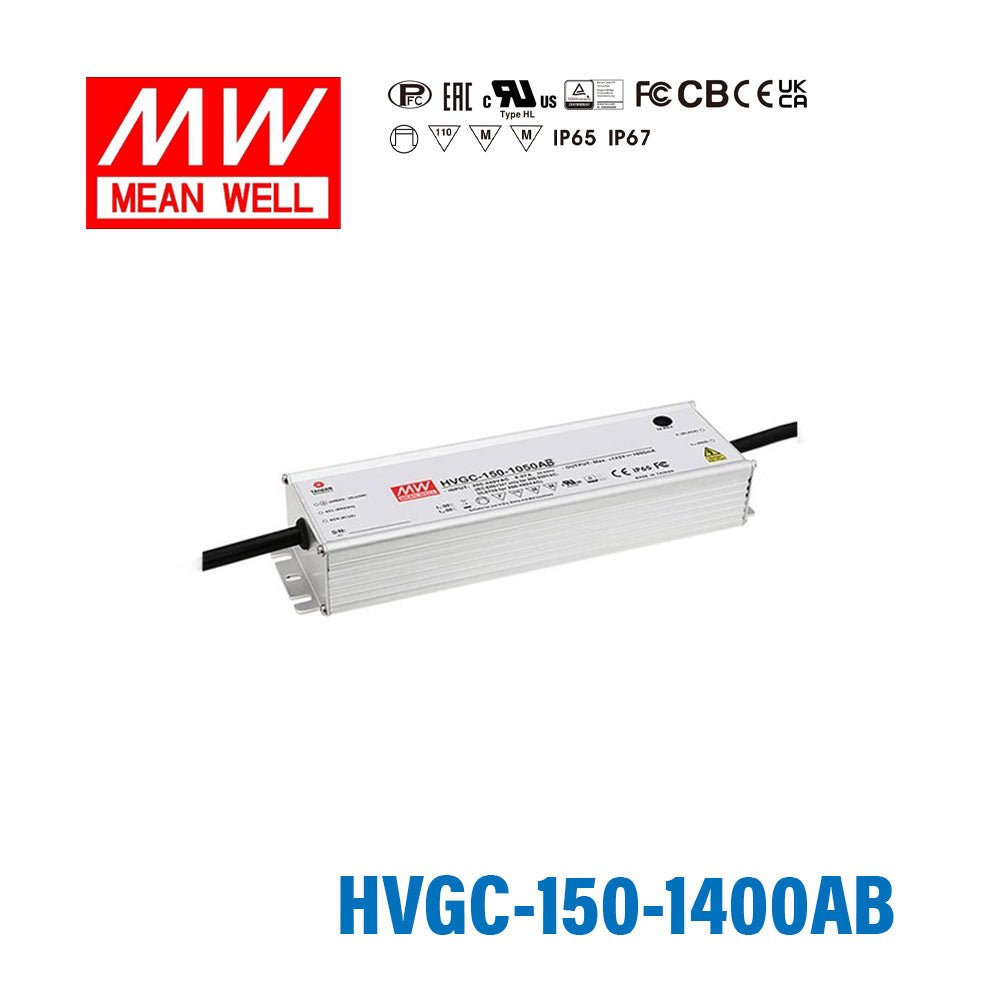

Mean Well HVGC-150-1400AB Power Supply 150W 1400mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-150-1400AB Power Supply 150W 1400mA - Adjustable and...
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating149.8 Watt
-
Output Voltage107 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-1400AB for dimmable LED downlights that run at 1400mA?
Yes, this model is intended for constant-current LED loads at 1400mA and is an option for dimmable downlight systems built around that drive current. The load must operate within the 12-107V CC range and within the 149.8W rating.
Is this a fit for small LED arrays where current adjustment is needed?
It can be a fit for constant-current LED arrays that need 1400mA operation and use a driver from the adjustable HVGC line. The array voltage needs to stay within 12-107V, and the total load needs to remain within 149.8W.
Can this driver be used for signage modules with a shorter constant-current string?
Yes, it is better matched to 1400mA signage loads that fall inside the 12-107V window. It is not meant for constant-voltage signage products, because the output mode is constant current.
How do I know whether my LEDs are compatible with the HVGC-150-1400AB?
Your LEDs need to be specified for 1400mA constant-current operation, and the full string has to stay within the 12-107V CC range. The number of LEDs depends on each LED forward voltage, so that part should be verified from the LED spec sheet.
What are the electrical options around this model in the 150W HVGC family?
The 150W HVGC family includes 350mA with 42-428V at 149.8W, 500mA with 30-300V at 150W, 700mA with 21-215V at 150.5W, 1050mA with 15-143V at 150.15W, and 1400mA with 12-107V at 149.8W. The HVGC-150-1400AB is the 1400mA adjustable and dimmable version within that group.
