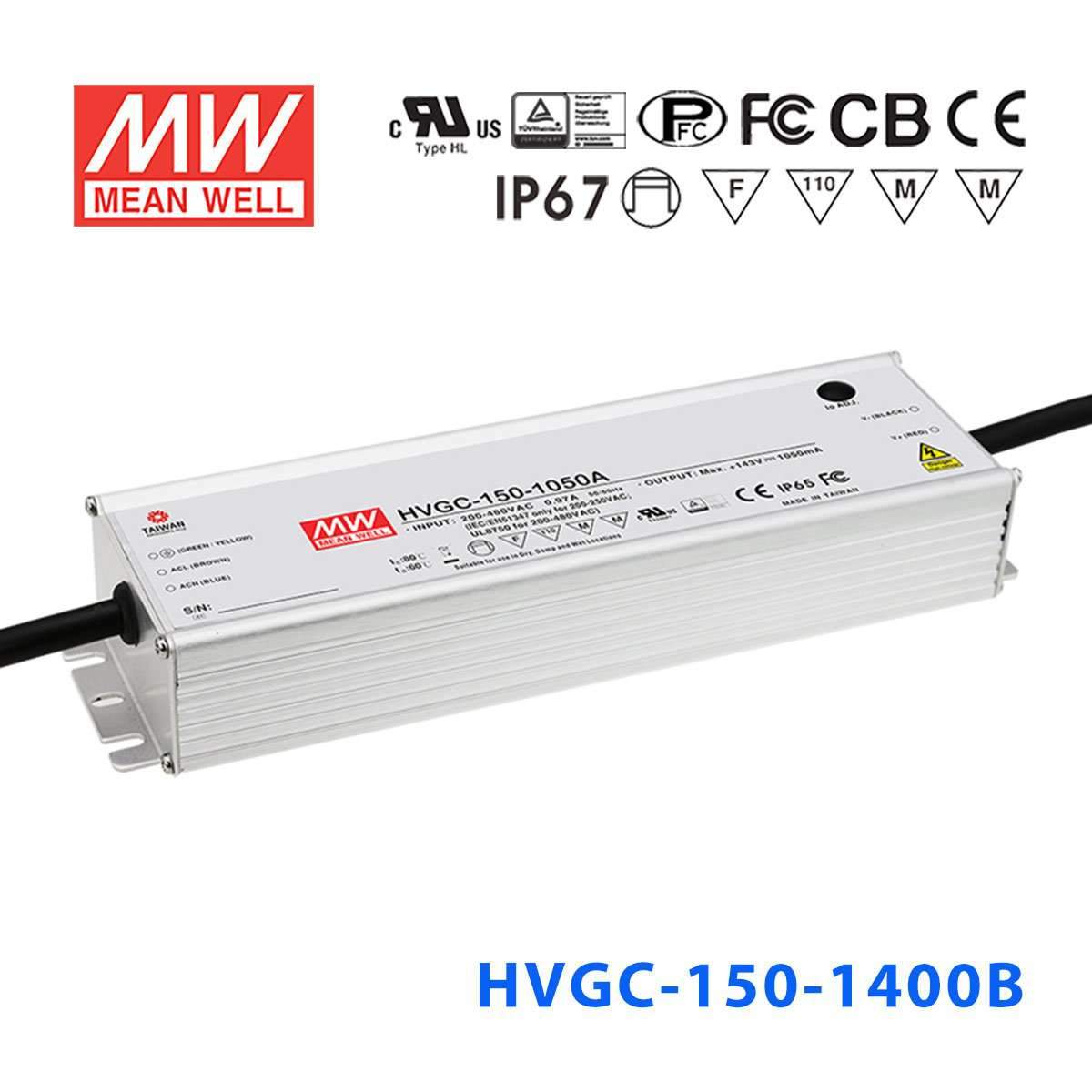

Mean Well HVGC-150-1400B Power Supply 150W 1400mA - Dimmable
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating149.8 Watt
-
Output Voltage107 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-1400B for outdoor 1400mA LED downlights?
Yes, if the downlights are designed for constant-current operation at 1400mA. The connected load must stay within the 12-107V CC range and within the 149.8W power rating.
Is this driver suitable for waterproof sign lighting applications?
It can be used for constant-current signage modules where a sealed enclosure rating is important, because this model is rated IP67 waterproof. The LED load still needs to match 1400mA output and fit inside the 12-107V operating range.
Can this model handle small LED arrays in harsh temperature conditions?
Yes, the operating temperature range is -40°C to +80°C, which supports use in very cold and very hot environments. The driver also uses an aluminium casing and carries an IP67 rating for demanding locations.
Will the HVGC-150-1400B work with my LED string if I only know the forward voltage per LED?
This driver is compatible with constant-current LED loads rated for 1400mA, with a total string voltage inside 12-107V. The number of LEDs depends on each LED forward voltage, so the string should be sized from that value rather than from a preset LED count.
How does this model compare with the other 150W HVGC current ranges?
The 150W HVGC line is offered in 350mA with 42-428V at 149.8W, 500mA with 30-300V at 150W, 700mA with 21-215V at 150.5W, 1050mA with 15-143V at 150.15W, and 1400mA with 12-107V at 149.8W. This version is the 1400mA, IP67 dimmable model.
