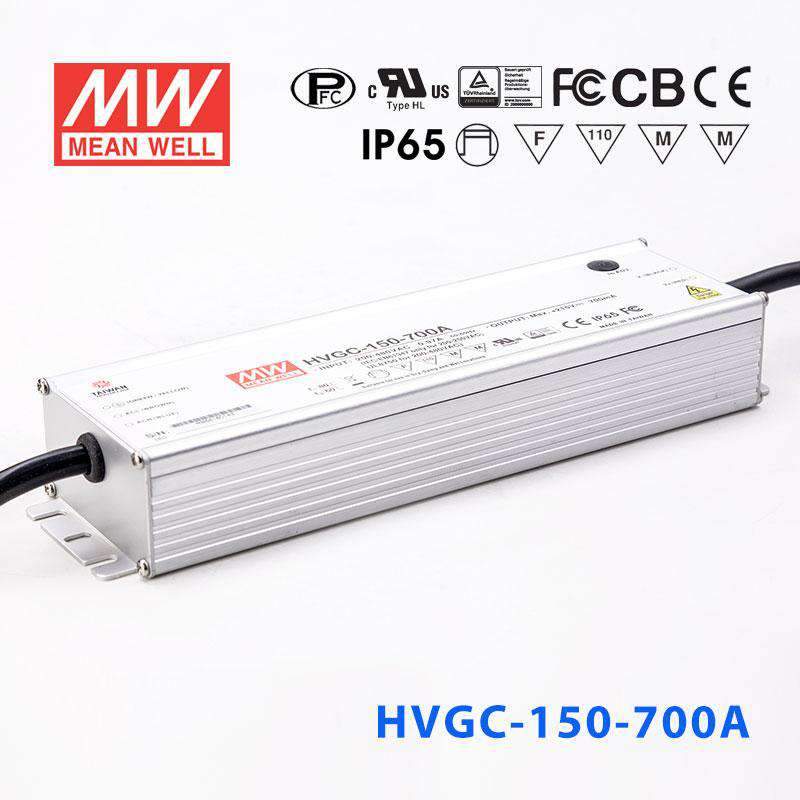

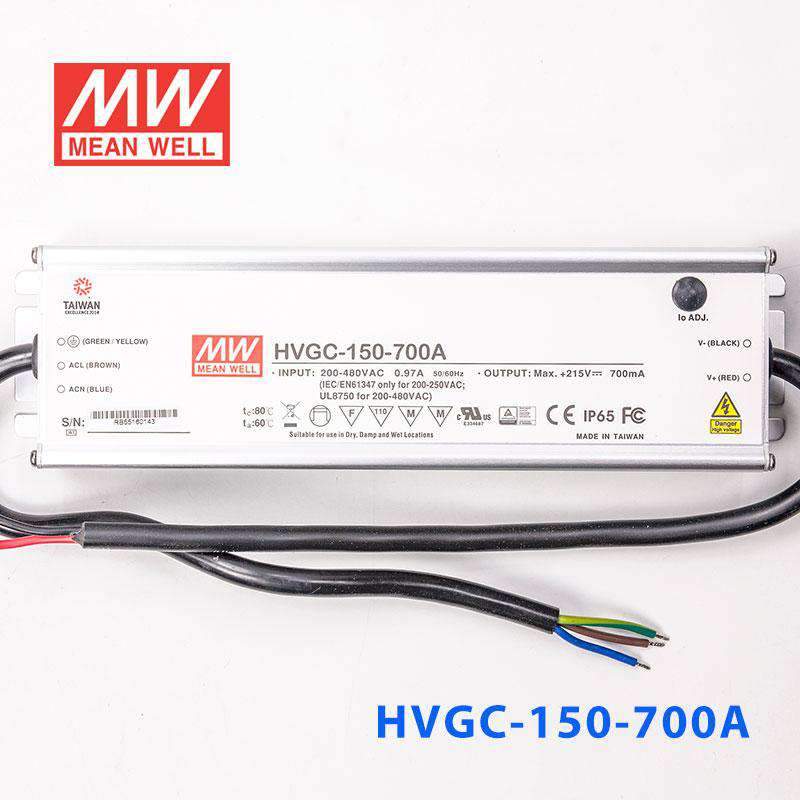

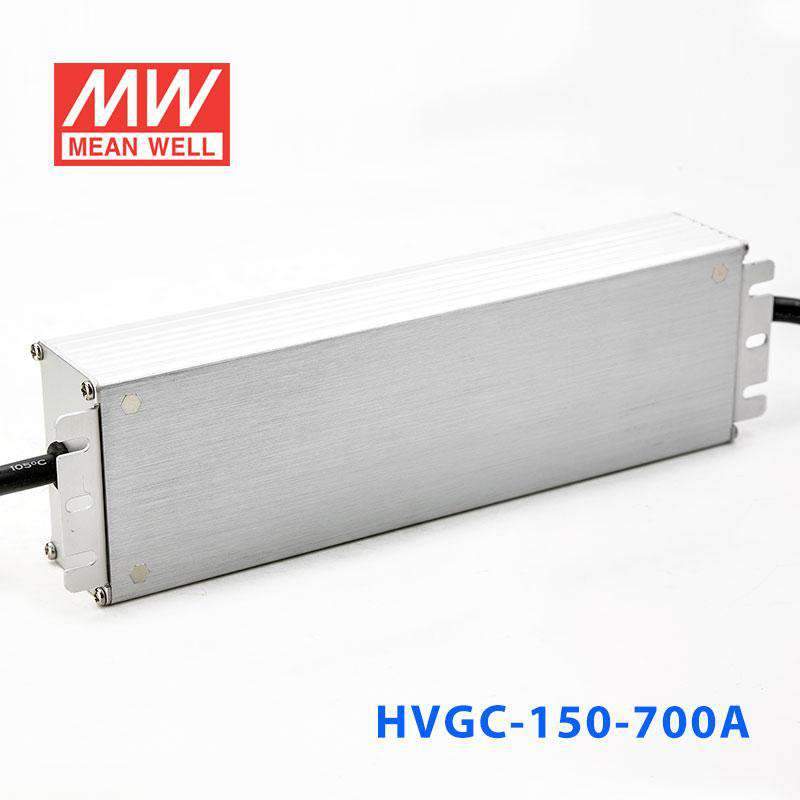

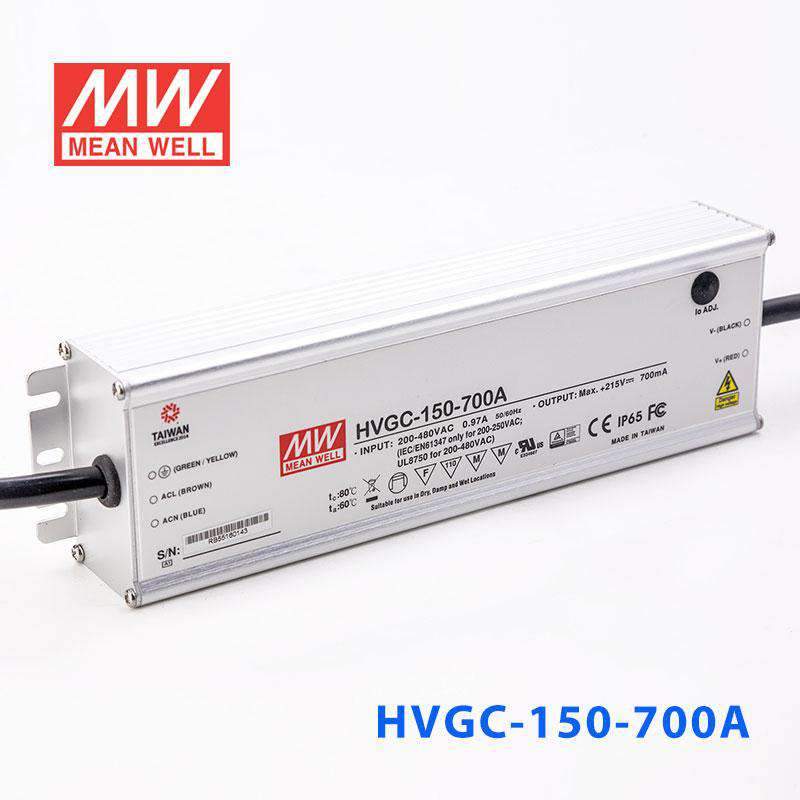

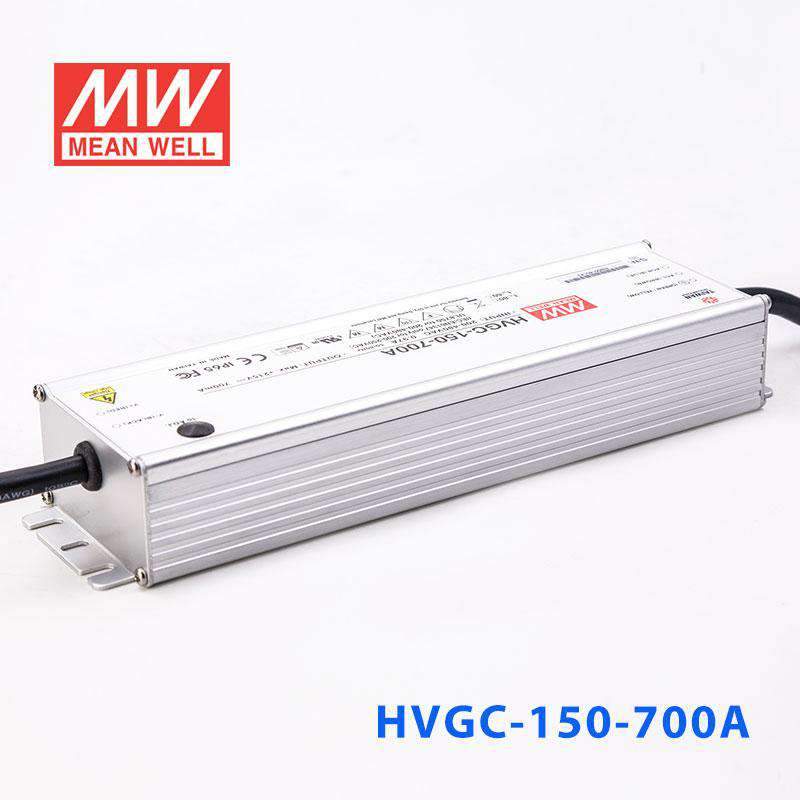

Mean Well HVGC-150-700A Power Supply 150W 700mA - Adjustable
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150.5 Watt
-
Output Voltage215 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-150-700A for constant current LED downlights?
Yes, if the fixture is designed for a 700mA constant current driver and the total LED forward voltage falls within 21-215V. This is not a constant voltage power supply, so it should be matched to constant current LED downlights only.
Is the HVGC-150-700A a good match for LED signage modules?
It can be used for signage modules that are built as a constant current load at 700mA. The full LED string must stay within the 21-215V constant current range, and the total power must remain within 150.5W.
Can this driver power small LED arrays in commercial lighting?
Yes, it is suitable for small LED arrays that need 700mA constant current and fit inside the 21-215V output window. With a 150.5W rating, it is intended for higher-power constant current LED assemblies rather than low-voltage constant voltage strips.
What should I check before pairing the HVGC-150-700A with an LED module?
Check that the LED module or array requires 700mA constant current and that its total forward voltage is between 21V and 215V. The final number of LEDs depends on each LED's forward voltage, so compatibility is based on total series voltage, not a fixed LED count.
Can the HVGC-150-700A be used in damp or industrial environments?
It is rated IP65 water-resistant, so it is suited to locations where protection from dust and water spray is needed rather than full immersion exposure. Its operating range of -40°C to +80°C also supports demanding indoor or sheltered outdoor conditions.
