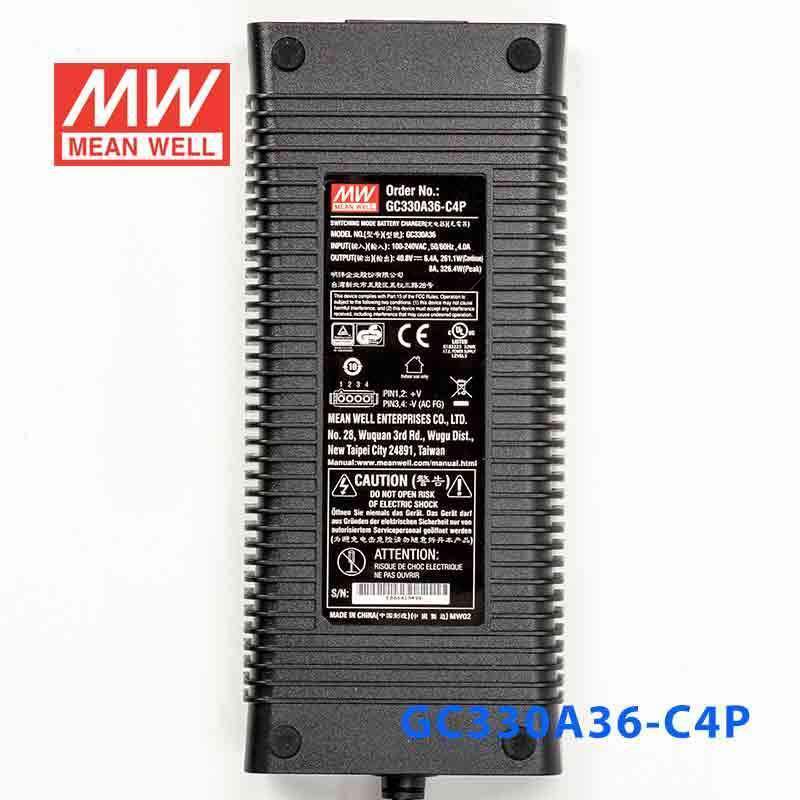

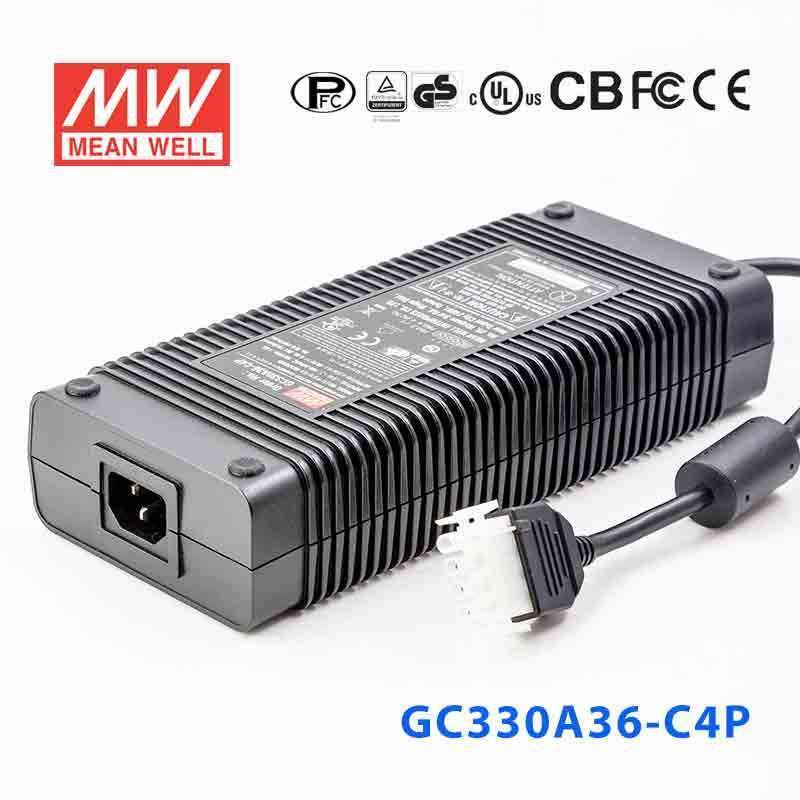

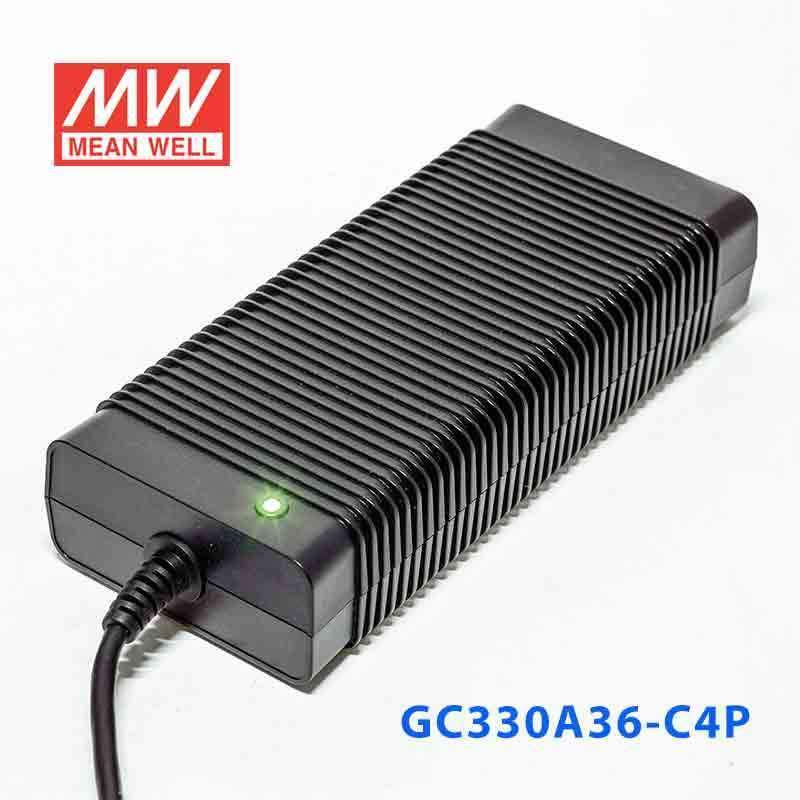

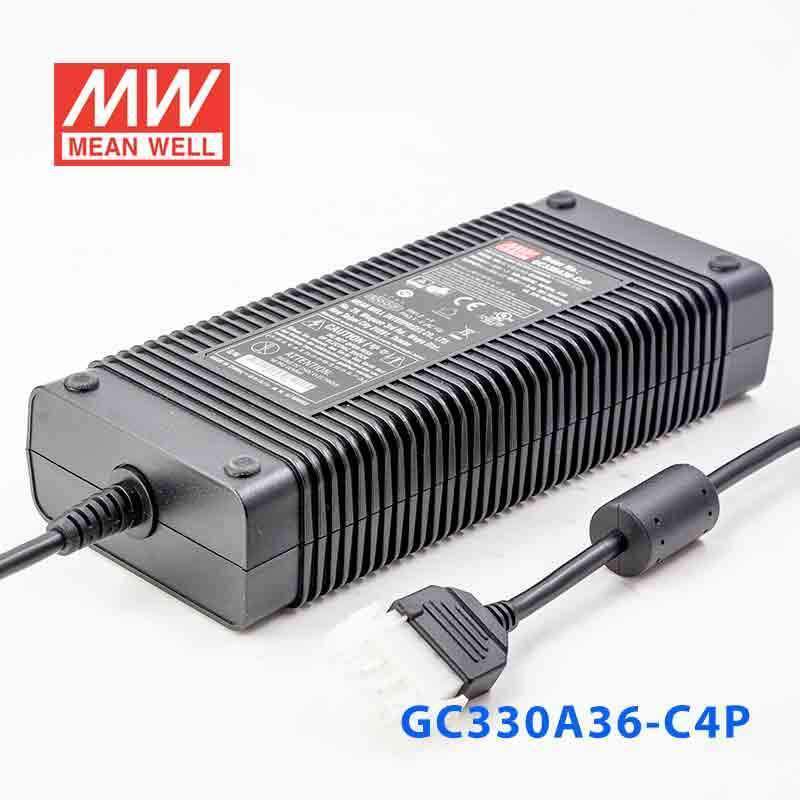

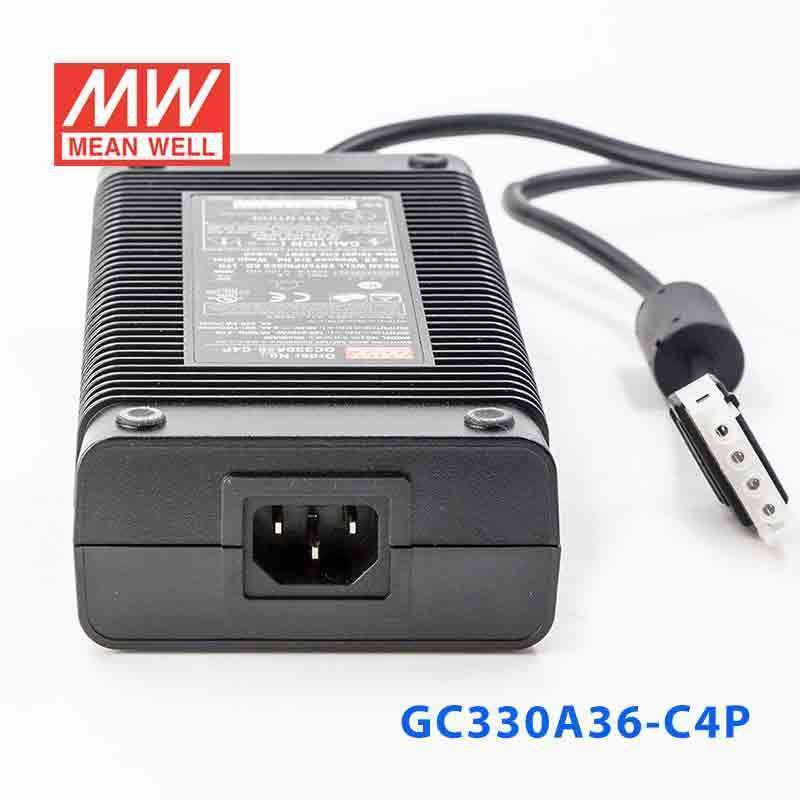

Mean Well GC330A36-C4P Portable Chargers 261.1W 40.8V 6.4A - Green ...
The GC330A36 is a 330W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating261.1 Watt
-
Output Voltage40.8 Volt
-
Rated Current6.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GC330A36-C4P?
The GC330A36-C4P is rated for 261.1W output with a nominal output of 40.8V and 6.4A. That makes it suitable for applications needing a higher-power portable charger or AC/DC power supply in this voltage range. It is part of Mean Well's green adaptor portable charger line.
What kinds of applications is this charger typically used for?
This model is typically considered for portable charging and external power supply applications that require a regulated 40.8V DC output. Its enclosed plastic case, IEC320-C14 AC inlet, and charging-status LED make it well suited to commercial and industrial equipment environments. Buyers commonly evaluate it where a compact desktop-style charger is preferred over an open-frame supply.
Can the GC330A36-C4P operate on international AC input voltage?
Yes. The specified AC input range is 90 to 264VAC, with DC input support of 127 to 370VDC. This full-range input design helps support use across different regional mains standards.
Is this model suitable for demanding temperature environments?
The GC330A36-C4P has a working temperature range of -30°C to +60°C, subject to the manufacturer's derating guidance. That makes it more flexible than many indoor-only power adapters for use in challenging operating environments. Buyers should still confirm that their specific enclosure and load conditions stay within the allowed range.
What protection features are included in this charger?
This model includes protection for short circuit, overload, over voltage, and over temperature conditions. Its over-voltage protection is specified to shut down and latch off the output, with recovery by re-powering the unit. These built-in protections are useful for buyers prioritizing equipment safety and power reliability.
How does the GC330A36-C4P compare with a standard low-power adapter?
Compared with a basic low-power adapter, the GC330A36-C4P offers a much higher power rating at 261.1W and includes active PFC, low no-load power consumption under 0.5W, and multiple safety approvals. It is also designed as a portable charger with a two-color LED charging-status indicator. That makes it a stronger fit for higher-demand professional applications rather than light-duty consumer electronics.
What certifications and warranty does this model include?
The product listing states approvals including TUV, UL, CUL, CB, FCC, and CE. Safety standards listed include UL60950-1 and TUV EN60950-1, with EMC compliance including EN55022 Class B and FCC Part 15 Class B. Mean Well also lists this model with a 2-year warranty.
