Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

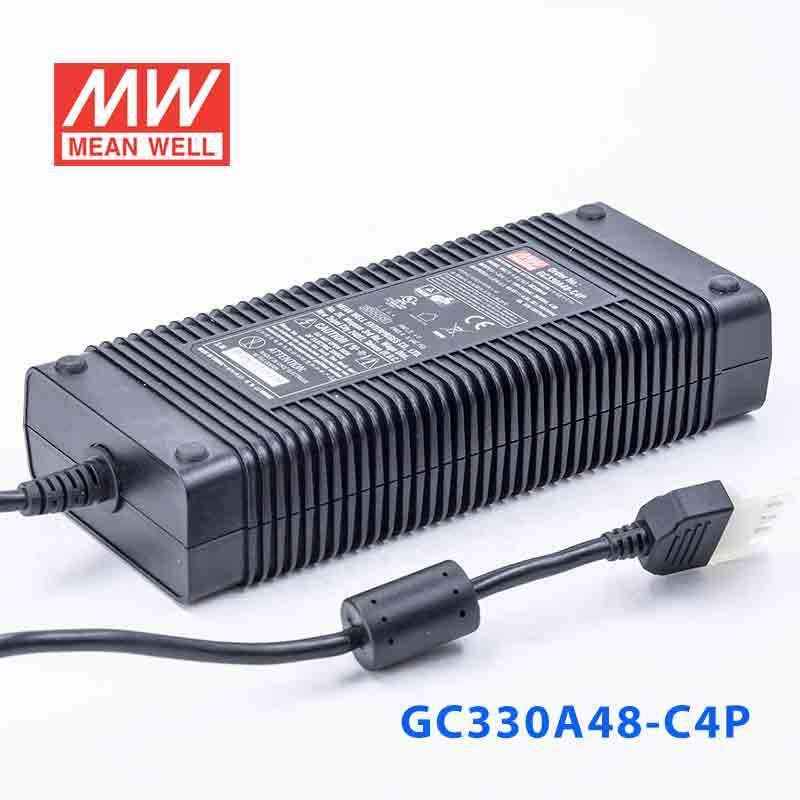

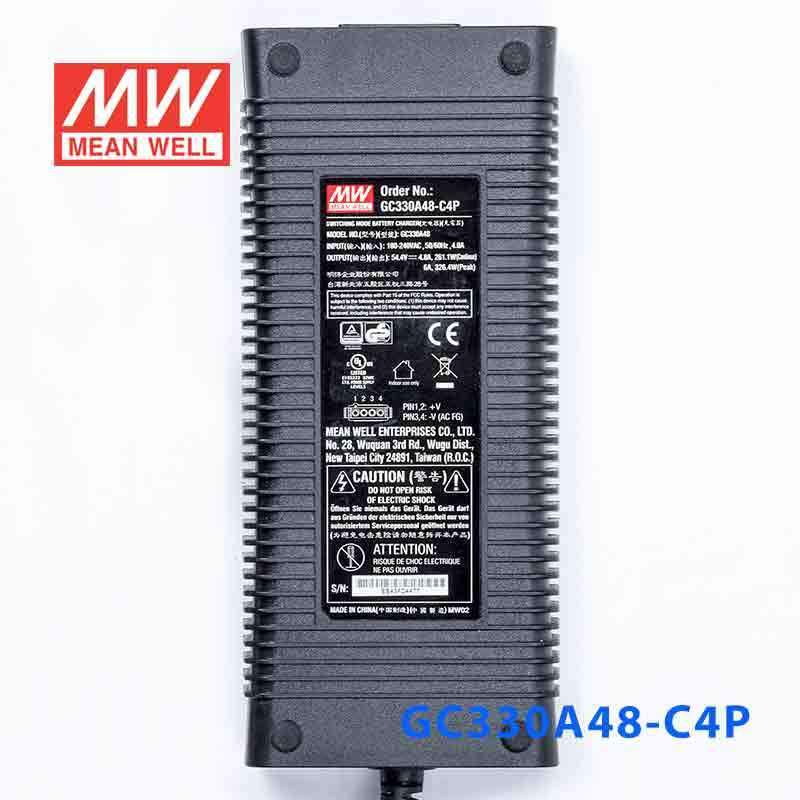

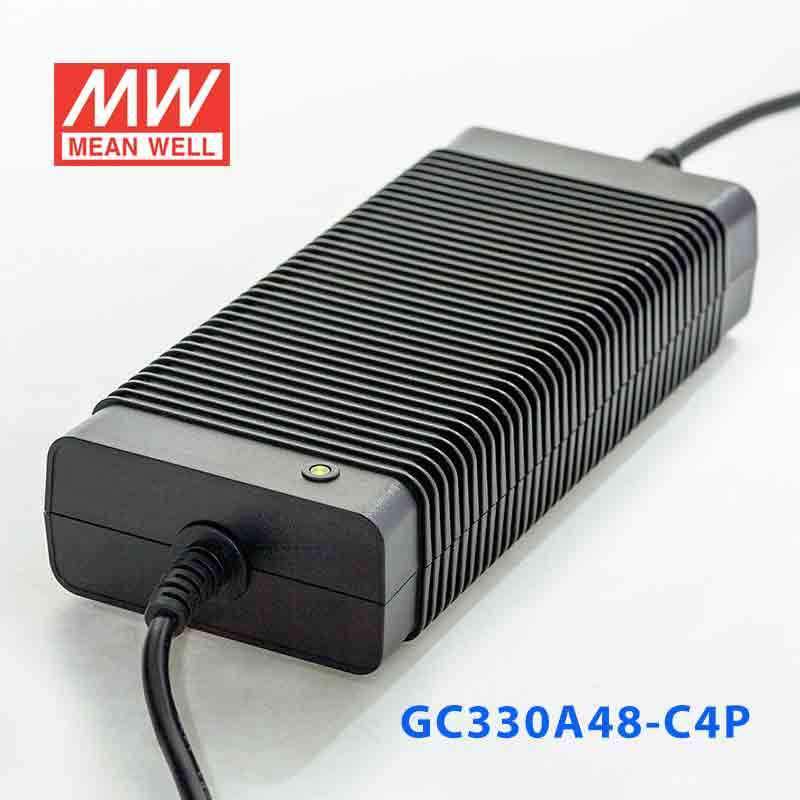

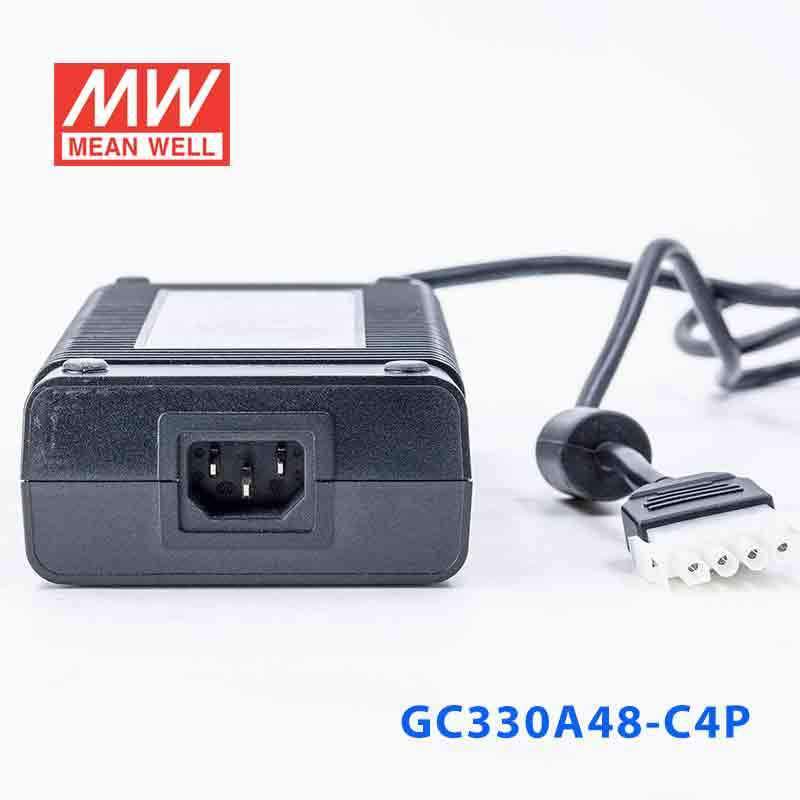

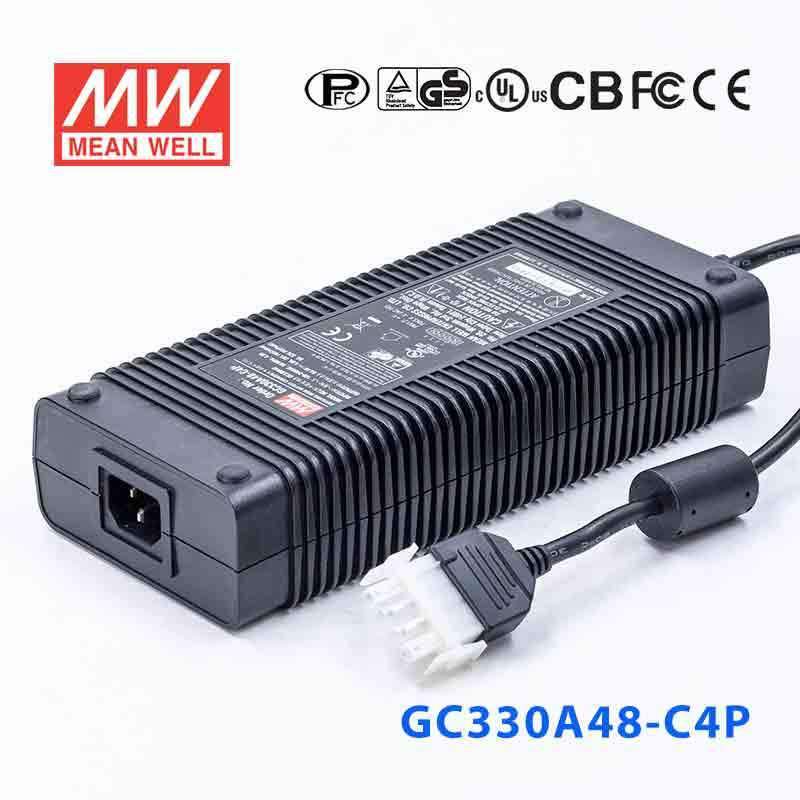

Mean Well GC330A48-C4P Portable Chargers 261.1W 54.4V 4.8A - Green ...
The GC330A48 is a 330W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating261.1 Watt
-
Output Voltage54.4 Volt
-
Rated Current4.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
What kind of product is the Mean Well GC330A48-C4P?
The GC330A48-C4P is a portable AC/DC charger in Mean Well's Green Adaptor series. It provides a 54.4V output at up to 4.8A, with a total power rating of 261.1W. This model is designed for buyers who need a compact external charger with built-in protection features.
What output does the GC330A48-C4P provide?
This model is rated for 54.4V DC output and 4.8A rated current. Its maximum output power is 261.1W. Those published ratings make it suitable for systems or battery-charging applications that require this specific voltage and current range.
What input power range does the GC330A48-C4P support?
The GC330A48-C4P accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That broad input range helps simplify sourcing for international or multi-region use. It also includes active PFC and low no-load power consumption of less than 0.5W.
Can the GC330A48-C4P be used in demanding industrial or commercial environments?
This model has a specified working temperature range of -30 to +60°C, subject to the derating curve. It also includes protection for short circuit, overload, over voltage, and over temperature. Those characteristics make it a practical option for many commercial and industrial charging environments where reliability matters.
How does the GC330A48-C4P compare with a standard desktop power adapter?
Compared with a typical consumer adapter, the GC330A48-C4P is a higher-power 261.1W unit built for 54.4V output and commercial-grade operation. It includes active PFC, multiple safety and EMC approvals, and a two-color LED charging status indicator. Its enclosed plastic case and Class I design also reflect a more industrial-oriented specification.
What certifications and warranty come with the GC330A48-C4P?
The product listing states approvals including TUV, UL, CUL, CB, FCC, and CE. It also lists safety approval to UL60950-1 and TUV EN60950-1, along with EMC compliance such as EN55022 Class B and FCC Part 15 Class B. Mean Well rates this model with a 2-year warranty.
