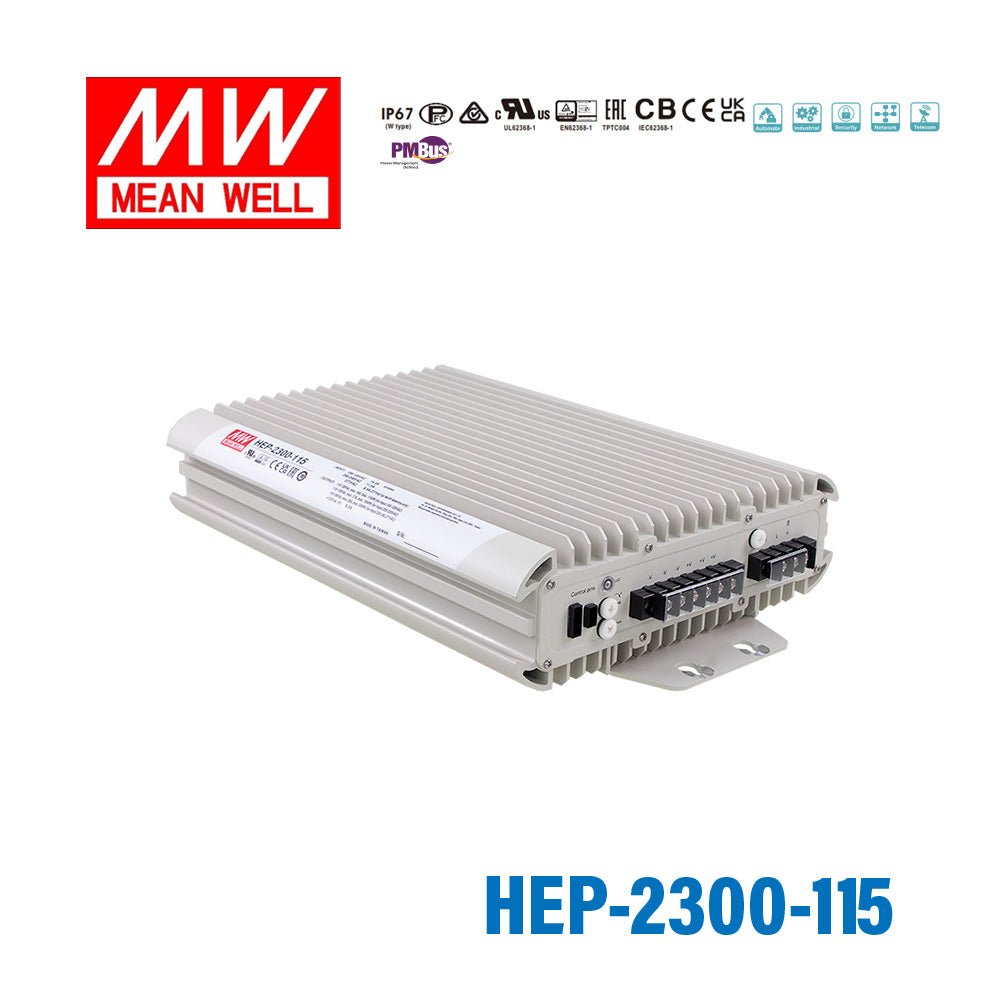

Mean Well HEP-2300-115 Power Supply 2300W 115V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-2300-115 Power Supply 2300W 115V
The HEP-2300 is a 2300W Mean Well power converter (input range: 115~138V).
Key Features
- ✓ Input voltage range: 115~138V
- ✓ DC output voltage adjustable ±10%
- ✓ 6KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating2300 Watt
-
Output Voltage115 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length14.76 in
-
Width11.02 in
-
Height3.46 in
-
Weight27.56 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HEP-2300-115?
The HEP-2300-115 is a 2300W AC-DC power supply with a 115V DC output. It is rated for 20A output current, making it suitable for high-power industrial and commercial applications that require a high-voltage DC supply.
What input voltage range does the HEP-2300-115 support?
This model accepts a wide input range of 85 to 264VAC, with 277VAC operational capability, and 120 to 370VDC, with 390VDC operational capability. That wide range helps it fit demanding applications where input conditions may vary.
Is the Mean Well HEP-2300-115 suitable for harsh environments?
Yes. The HEP-2300-115 is designed for demanding environments with an operating temperature range of -40C to +70C, a fanless convection-cooled design, and a 10G vibration rating. Its aluminum case with heat-conducted filling also supports durability in tougher industrial settings.
What protection features are built into the HEP-2300-115?
This power supply includes short circuit, over current, over voltage, and over temperature protection. The over current protection uses constant current limiting with automatic recovery after the fault is removed, while over-voltage protection requires repowering to recover.
What types of applications is the HEP-2300-115 commonly used for?
With its 2300W capacity, 115V output, high efficiency up to 96%, and rugged enclosed design, this model is suited to high-power industrial systems, security-related equipment, and other B2B applications that need reliable DC power. It is especially relevant where fanless operation and wide temperature tolerance are important.
How does the HEP-2300-115 differ from lower-power enclosed power supplies?
The HEP-2300-115 stands out by combining a very high 2300W power rating with a 115V output in a sealed, fanless enclosure. Compared with lower-power enclosed units, it is better suited to heavier-load applications that need higher output voltage, wider environmental tolerance, and stronger mechanical durability.
