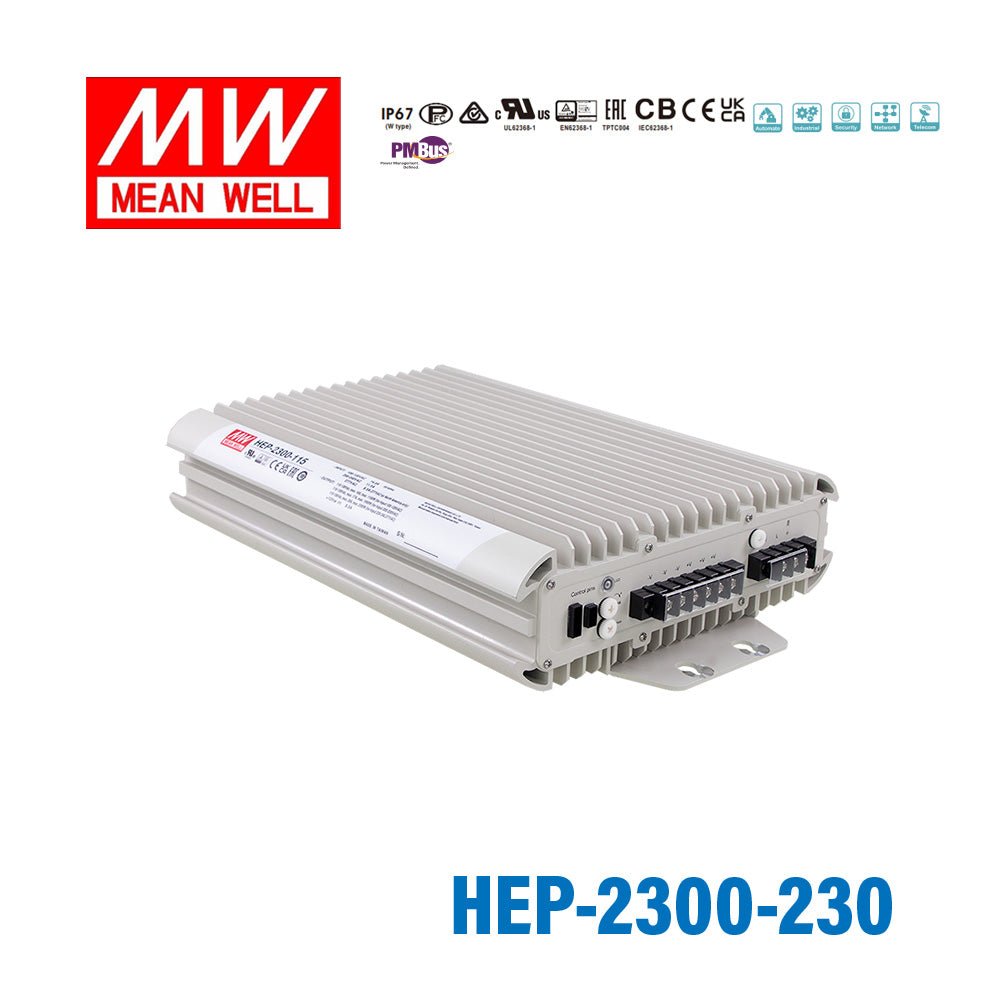

Mean Well HEP-2300-230 Power Supply 2300W 230V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-2300-230 Power Supply 2300W 230V
The HEP-2300 is a 2300W Mean Well power converter (input range: 115~138V).
Key Features
- ✓ Input voltage range: 115~138V
- ✓ DC output voltage adjustable ±10%
- ✓ 6KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating2300 Watt
-
Output Voltage230 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length14.76 in
-
Width11.02 in
-
Height3.46 in
-
Weight27.56 lb
::specification::
Frequently Asked Questions
What kind of applications is the Mean Well HEP-2300-230 designed for?
The HEP-2300-230 is a high-power enclosed AC/DC power supply intended for demanding industrial and commercial equipment that requires a 230V DC output. Its 2300W power rating, fanless construction, and rugged environmental specifications make it suitable for harsh-duty applications where reliability matters.
What are the main electrical specifications of the HEP-2300-230?
This model provides a 230V DC output with a rated current of 10A and a total power rating of 2300W. It accepts a wide AC input range of 85 to 264VAC, with 277VAC operational capability, and also supports DC input from 120 to 370VDC with 390VDC operational capability.
Can the output voltage or current be adjusted on this power supply?
The product data states that output voltage and output current can be adjusted through an internal potentiometer. The listed adjustment ranges are -10% to +10% of rated output voltage for A-Type models and 60% to 100% for output current.
Is the HEP-2300-230 suitable for harsh environments?
Yes. It is rated for operation from -40°C to +70°C, can operate at altitudes up to 5000 meters, and is designed to withstand 10G vibration. The aluminum case and heat-conducted filling also support use in demanding environments.
Does this model use a cooling fan?
No. The HEP-2300-230 uses a fanless design and is cooled by free air convection. That can be beneficial in environments where lower maintenance, reduced dust intake, or quieter operation is preferred.
What protection and compliance features does the HEP-2300-230 include?
This model includes protection for short circuit, over current, over voltage, and over temperature. It is approved to UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004 safety standards, and its EMC listings include EN55022 Class B and EN61000-3-2,3.
What warranty is offered with the Mean Well HEP-2300-230?
The listed warranty period for this model is 6 years. That is consistent with its positioning as a durable, high-reliability enclosed power supply for long-service applications.
