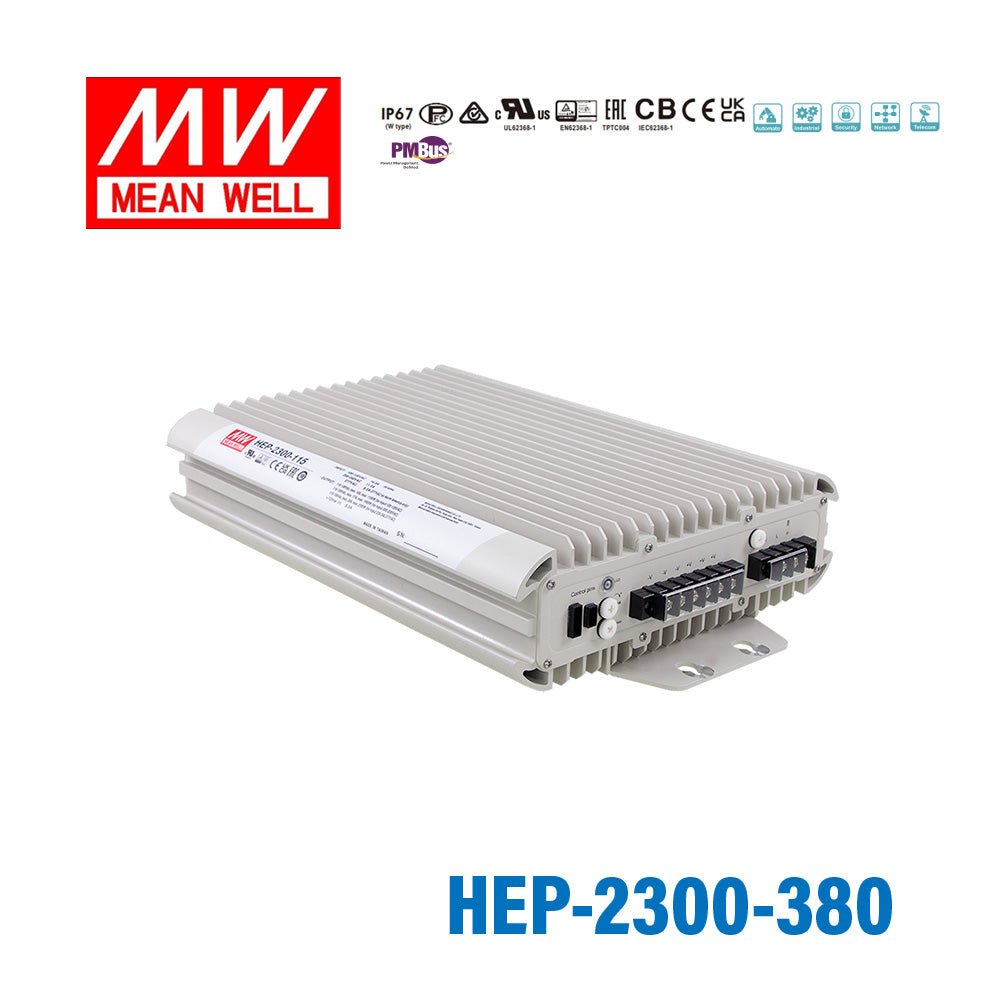

Mean Well HEP-2300-380 Power Supply 2300W 380V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-2300-380 Power Supply 2300W 380V
The HEP-2300 is a 2300W Mean Well power converter (input range: 115~138V).
Key Features
- ✓ Input voltage range: 115~138V
- ✓ DC output voltage adjustable ±10%
- ✓ 6KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating2300 Watt
-
Output Voltage380 Volt
-
Rated Current6.05 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length14.76 in
-
Width11.02 in
-
Height3.46 in
-
Weight27.56 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HEP-2300-380?
The HEP-2300-380 is a 2300W enclosed AC/DC power supply with a 380V DC output. Its rated output current is 6.05A. This makes it a high-voltage, high-power model intended for demanding industrial applications.
What input range does the HEP-2300-380 support?
This model supports a wide AC input range of 85 to 264VAC, with 277VAC operational capability. It also supports 120 to 370VDC input, with 390VDC operational capability. That broad range helps it fit installations with varying available input power conditions.
Is the Mean Well HEP-2300-380 suitable for harsh environments?
Yes. The HEP-2300-380 is designed for demanding environments with an operating temperature range of -40°C to +70°C and operation at altitudes up to 5000 meters. It also uses an aluminum case with heat-conducted filling and passes a 10G vibration test.
Does the HEP-2300-380 use fan cooling?
No. This model uses a fanless design and cools by free air convection. That can be useful in applications where lower maintenance, reduced dust intake, or quieter operation is preferred.
What protection features are included in the HEP-2300-380?
The HEP-2300-380 includes short circuit, over current, over voltage, and over temperature protection. Over current protection uses constant-current limiting and recovers automatically after the fault is removed. Over-voltage protection shuts down the output and requires re-powering to recover.
What kinds of applications is the HEP-2300-380 best suited for?
This model is generally suited to high-power industrial and security-related systems that require a 380V DC supply in an enclosed format. Its high efficiency, fanless construction, and wide operating temperature range make it a strong fit for demanding B2B environments. Buyers should confirm that their equipment requires a 380V output before selecting this model.
Can the output voltage or current be adjusted on the HEP-2300-380?
Yes. The product data states that output voltage and output current can be adjusted through an internal potentiometer. The listed adjustment ranges are -10% to +10% of rated output voltage for A-Type models and 60% to 100% for output current.
What certifications and compliance standards are listed for the HEP-2300-380?
The HEP-2300-380 is listed with UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004 safety approvals. Its EMC standards include EN55022 Class B, EN61000-3-2, EN61000-3-3, and EAC TP TC 020. These certifications are relevant for commercial and industrial procurement requirements.
