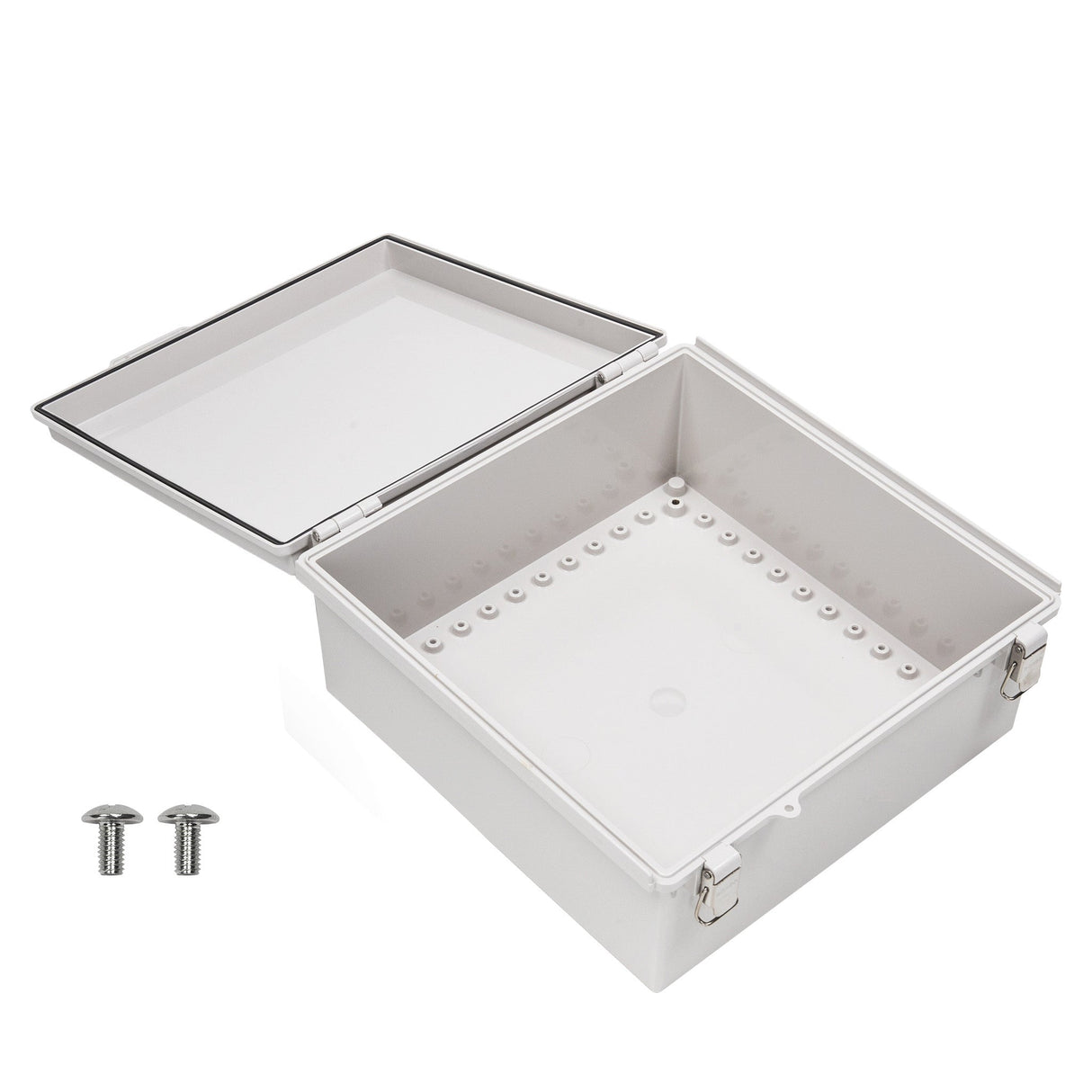

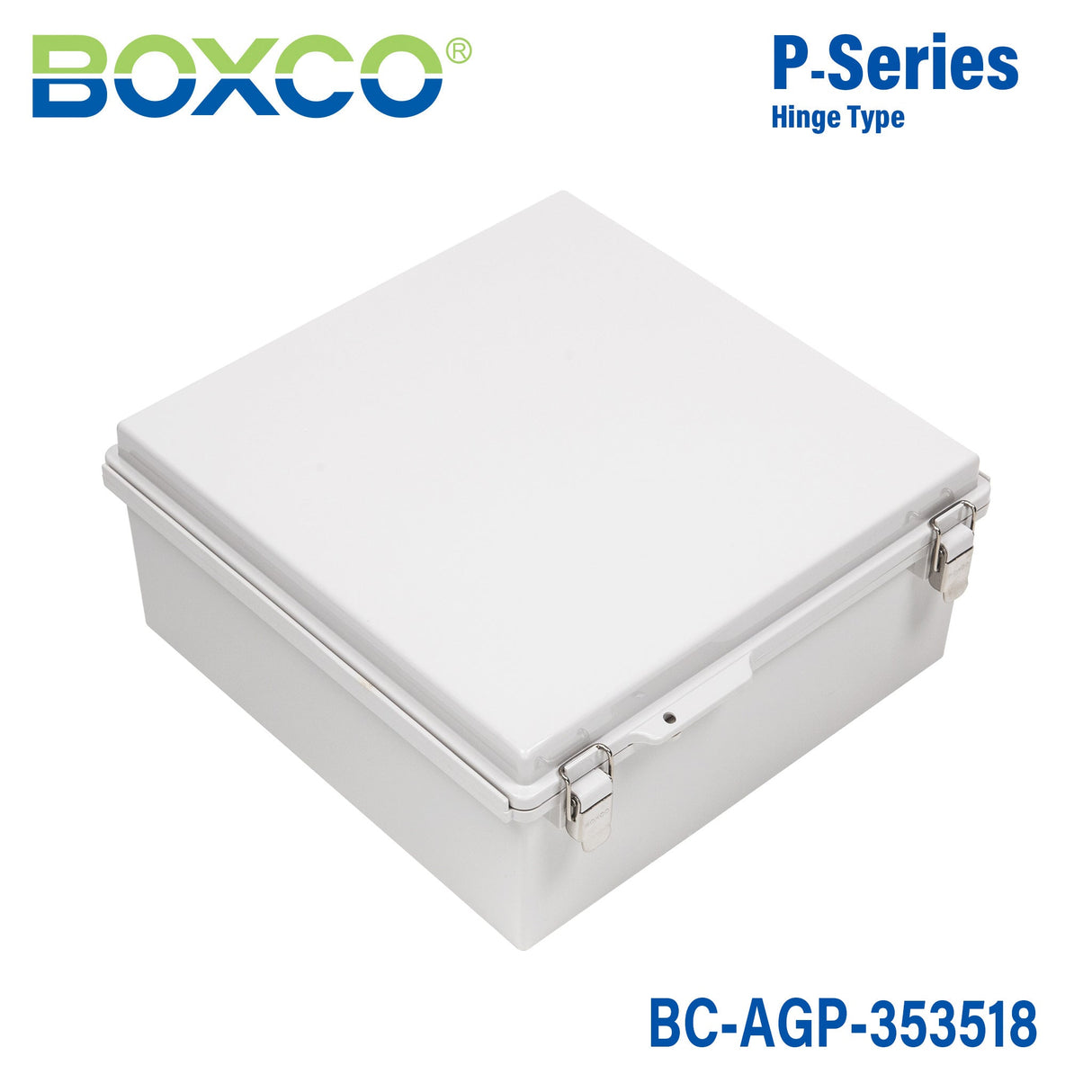

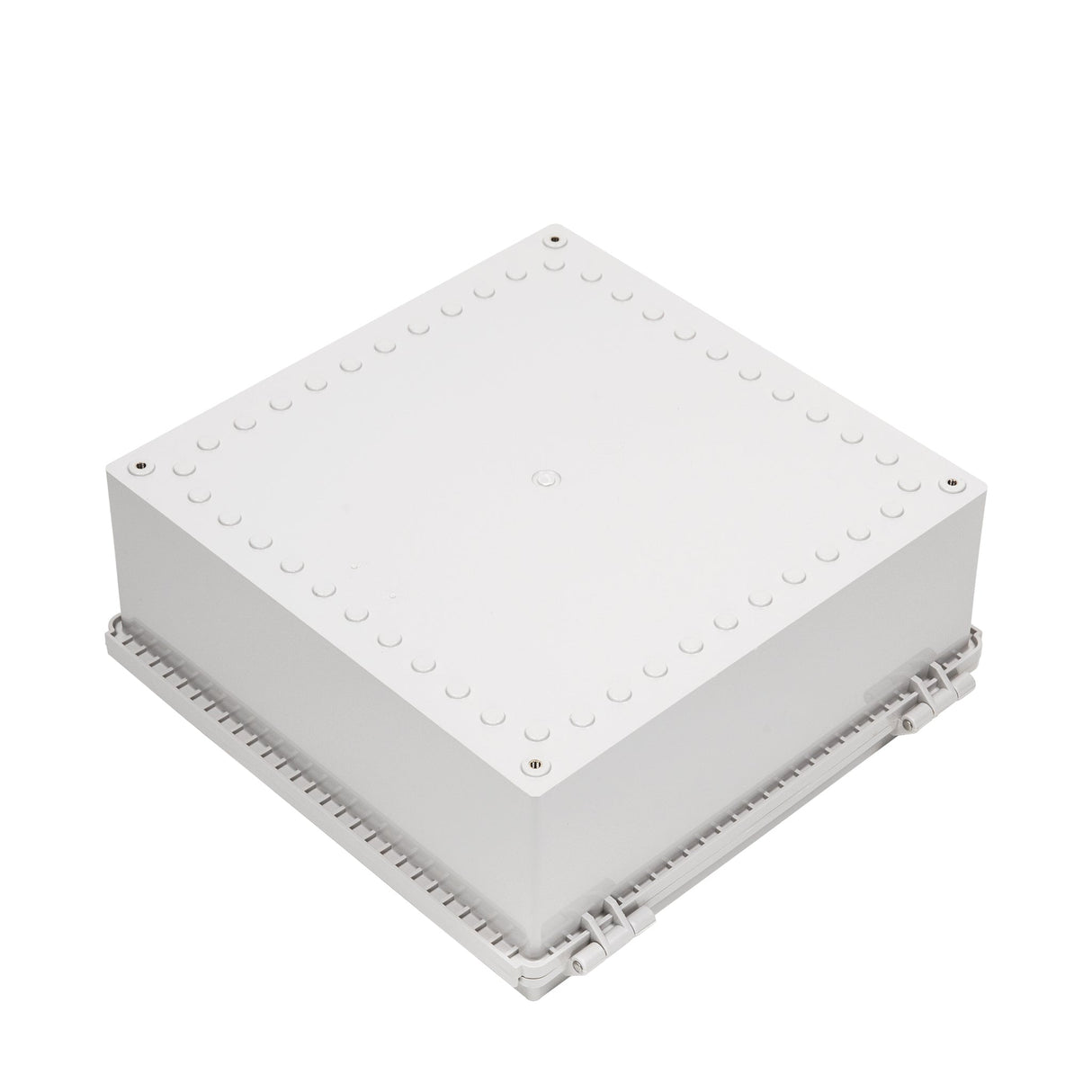

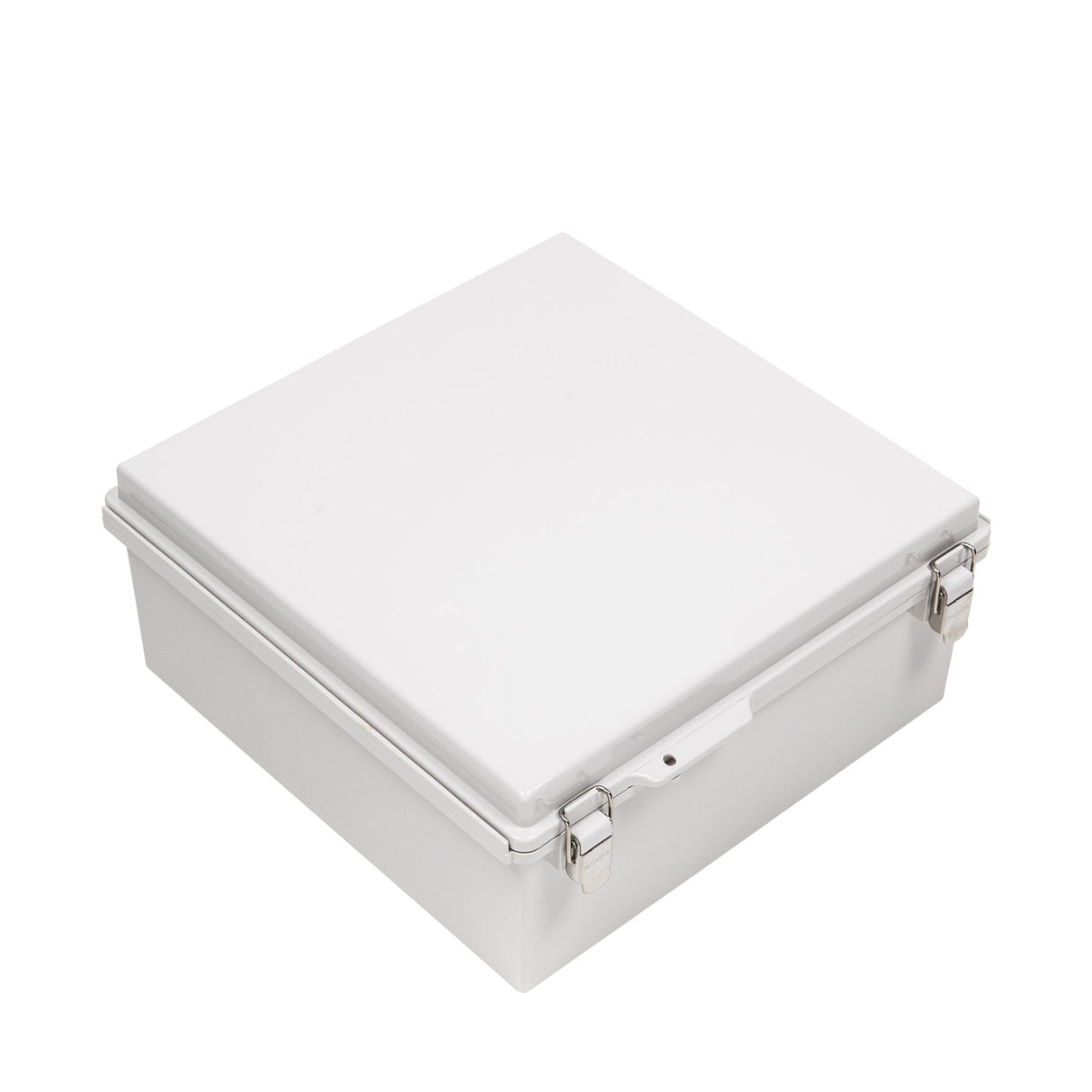

Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length13.78 in
-
Width13.78 in
-
Height7.09 in
-
Weight4.03 lb
::specification::
Frequently Asked Questions
What are the main dimensions and material of this enclosure?
This Boxco P-Series enclosure measures 13.78 x 13.78 x 7.09 inches (350 x 350 x 180 mm). It is made from ABS and has a grey cover. The design uses a molded hinge and latch-style closure.
What protection rating does this enclosure provide?
This model is rated IP67 for dust-tight and water-resistant protection in demanding environments. It also carries an IK08 impact rating for resistance to mechanical impact. Those ratings make it suitable for applications where washdown, dust, and incidental impact are concerns.
Is this enclosure suitable for outdoor use?
Yes, the P-Series includes an ultraviolet stabilizer to help protect the enclosure in outdoor applications. The product description notes that only minor color change is expected even after long-term use. Its roof-protection design also helps reduce water and dust intrusion during cover opening and closing.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 °C to 70 °C. That range supports use in both cold and moderately hot industrial environments. Buyers should confirm that all internal components match the same operating range for the full assembly.
What internal mounting features are included?
This model includes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment inside the enclosure. It also has dedicated attachment points for an internal mounting plate. These features support organized equipment mounting without modifying the basic enclosure structure.
What makes this model a good choice for protecting sensitive equipment?
The enclosure uses anti-static material intended to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to better withstand external force and reduce breakage during machining. Combined with the injected gasket, this helps support reliable physical protection for enclosed equipment.
How does the hinge and latch design compare with a standard screw-cover enclosure?
This model uses an integrated molded hinge and latch-type closure rather than a fully removable screw-fastened cover. That design can make repeated access more convenient while keeping the cover attached to the enclosure. It is a practical option for applications that need frequent inspection or servicing access.
What is the product weight and warranty period?
The listed product weight is 1.8270 kg. The stated warranty period is 1 year. These details can help with planning for panel design, shipping, and procurement requirements.
