Boxco P-Series 3.94 x 5.91 x 3.35 Inches(100 x 150 x 85mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 3.94 x 5.91 x 3.35 Inches(100 x 150 x 85mm) Plastic ...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

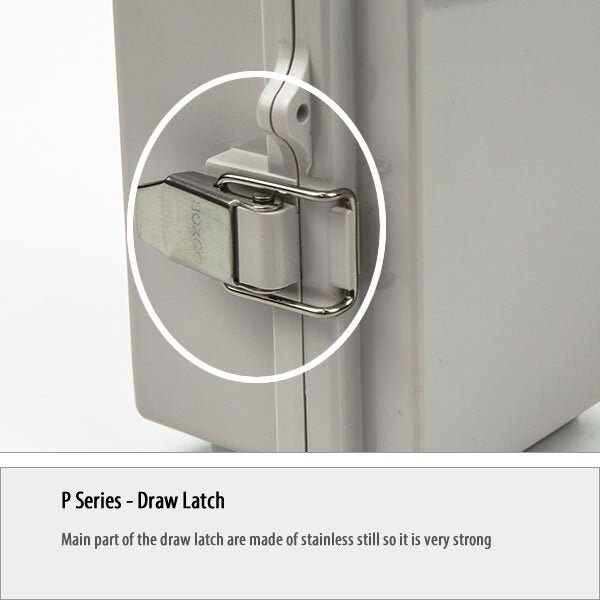

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

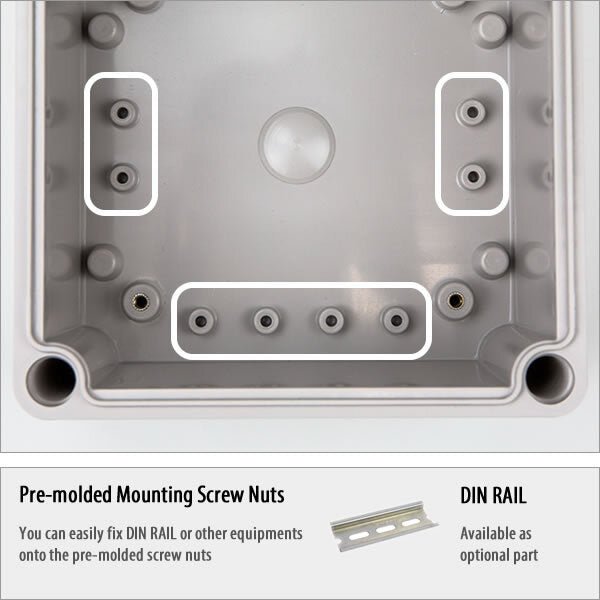

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

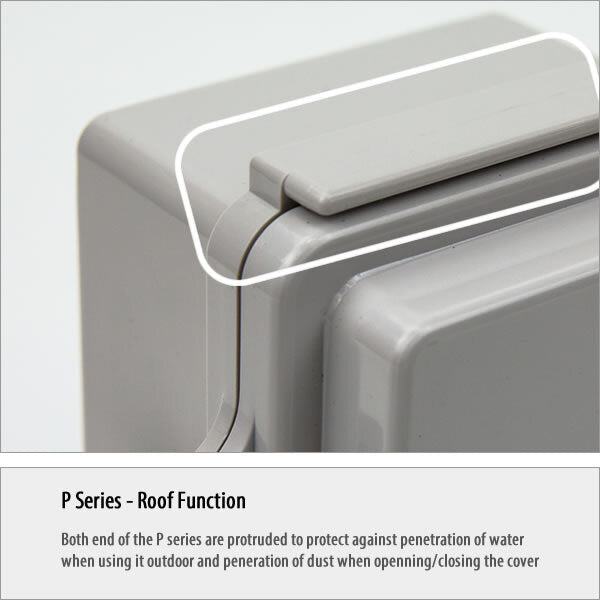

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

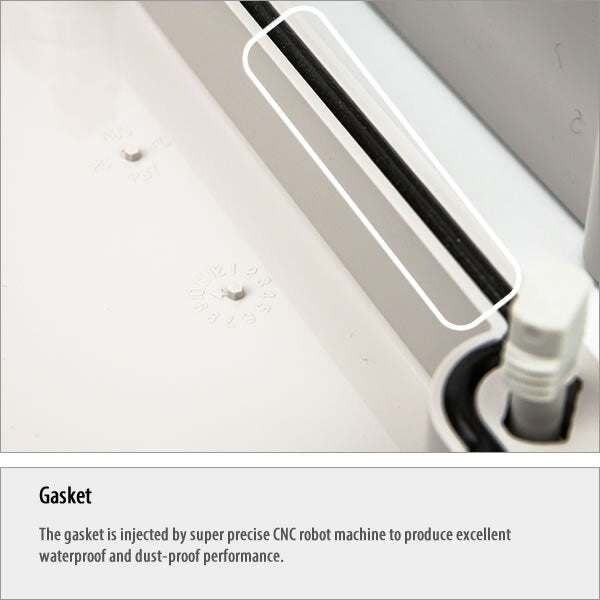

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

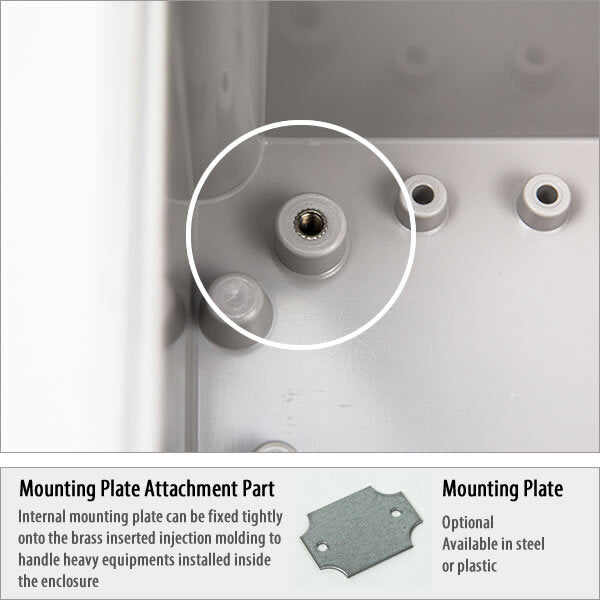

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

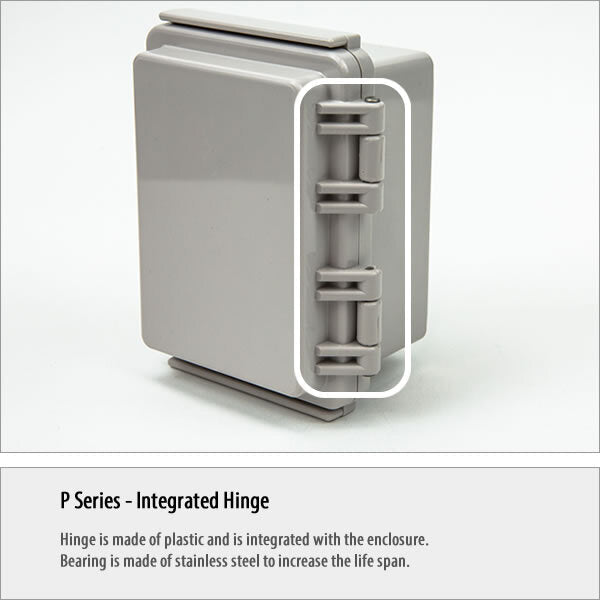

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.94 in
-
Width5.91 in
-
Height3.35 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure best suited for?
This model is suited for protecting electronic components and control devices in industrial, commercial, and outdoor environments where dust and water resistance matter. Its ABS construction, molded hinge, and latch-style cover make it a practical choice for equipment that needs frequent access while staying protected.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. It also includes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.
What level of ingress and impact protection does this enclosure provide?
This enclosure is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress, while also offering good resistance to external mechanical impact for demanding environments.
What are the dimensions and material of this enclosure?
This model measures 3.94 x 5.91 x 3.35 inches, which corresponds to 100 x 150 x 85 mm. It is made from ABS and comes with a grey cover in Boxco's molded hinge and latch-type design.
What makes this P-Series enclosure different from a basic plastic box?
Compared with a basic plastic enclosure, this model includes a molded integrated hinge, latch hardware with stainless steel main parts, roof protection geometry, and pre-molded mounting screw nuts. It is also described as using high impact resistant material and anti-static material for added durability and protection of sensitive instruments.
What temperature range can this enclosure handle?
The listed operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for use in both cold and hot environments where standard indoor-only enclosures may not be appropriate.
