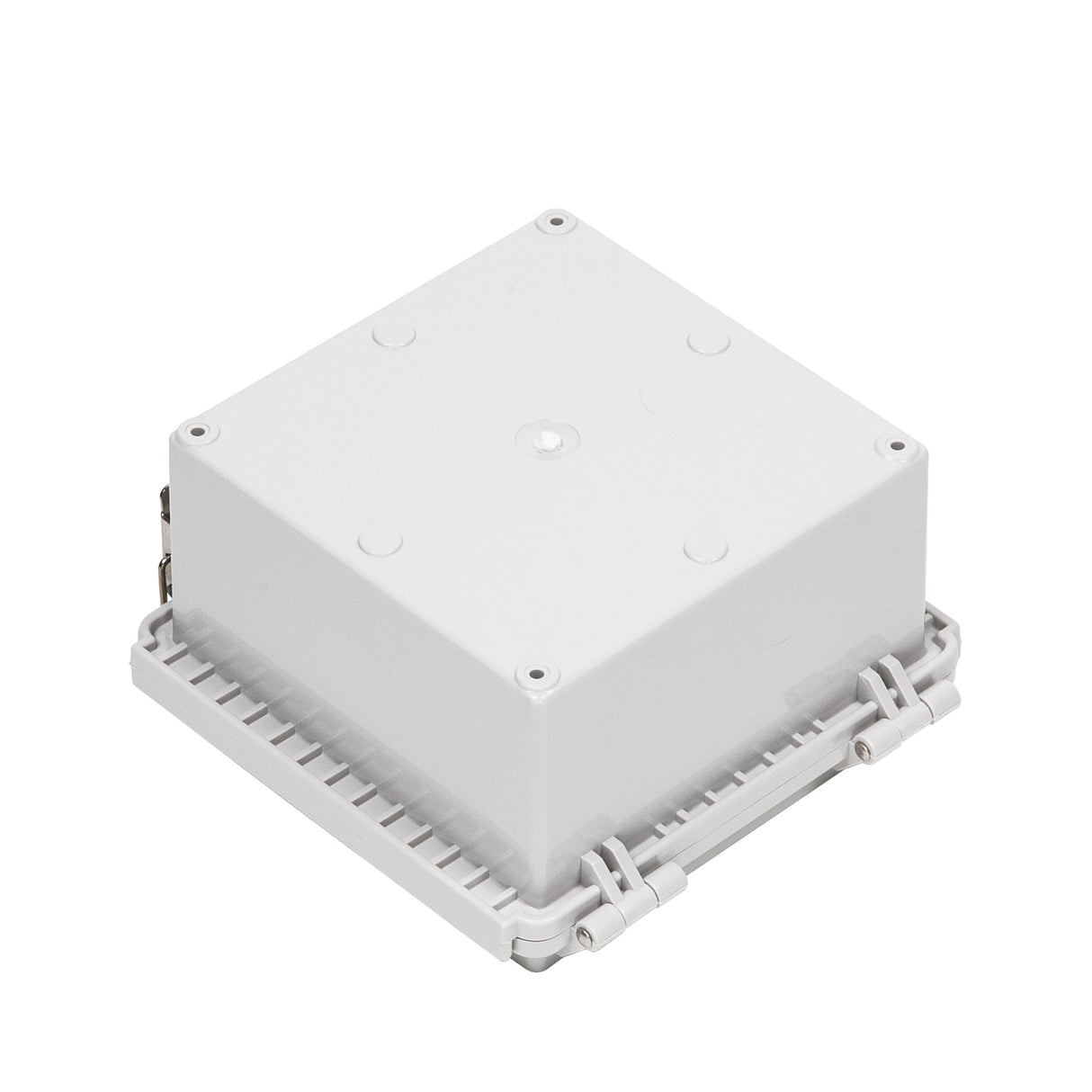

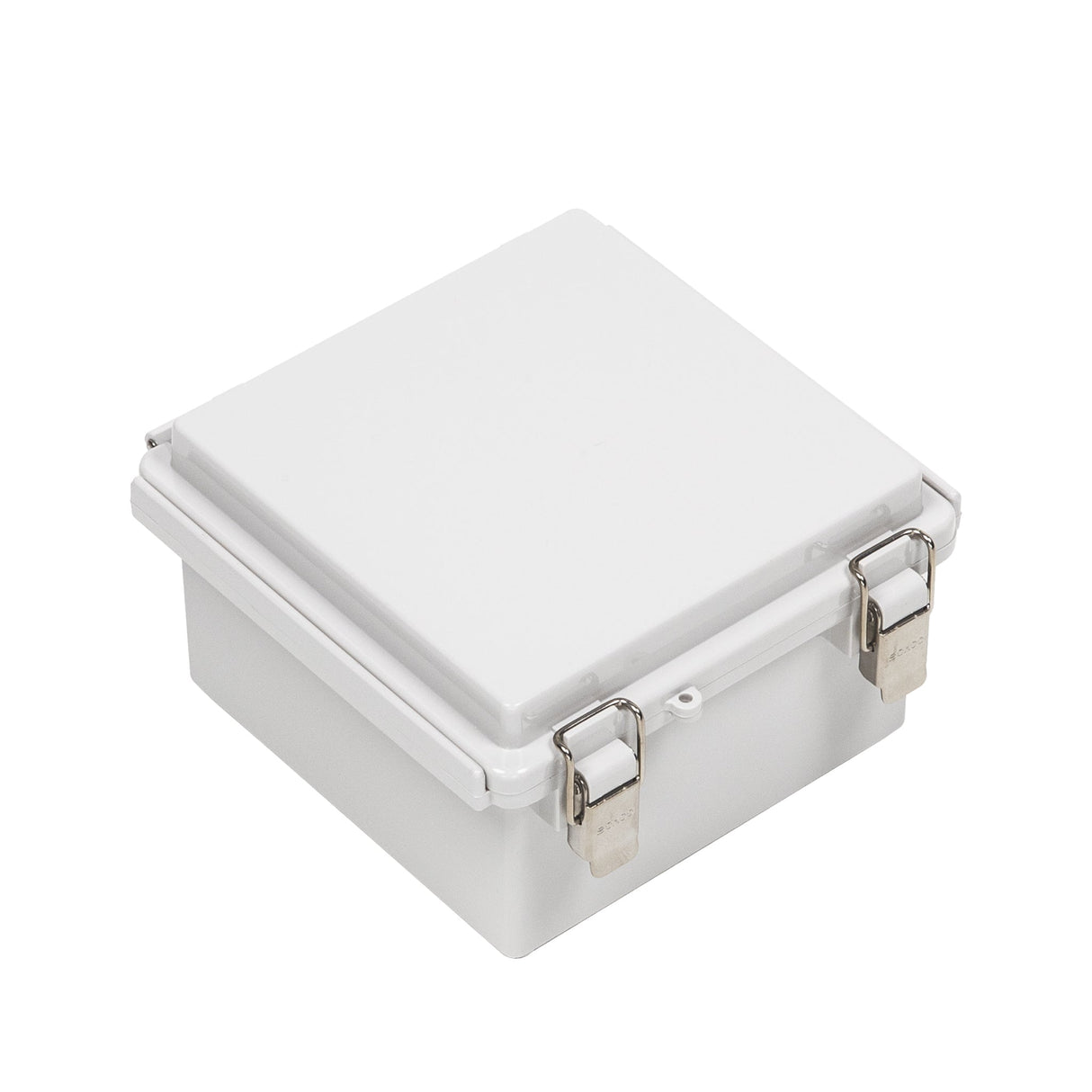

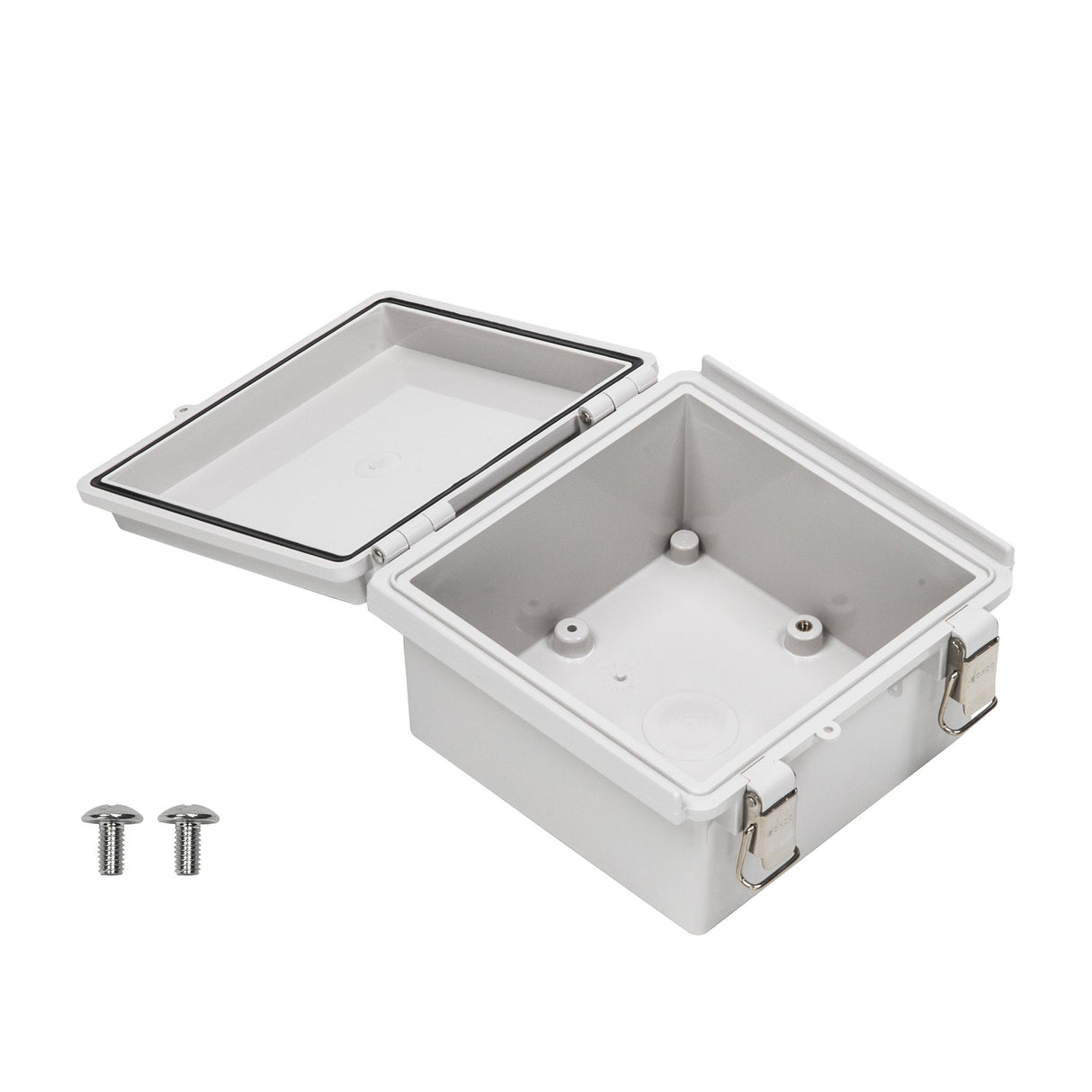

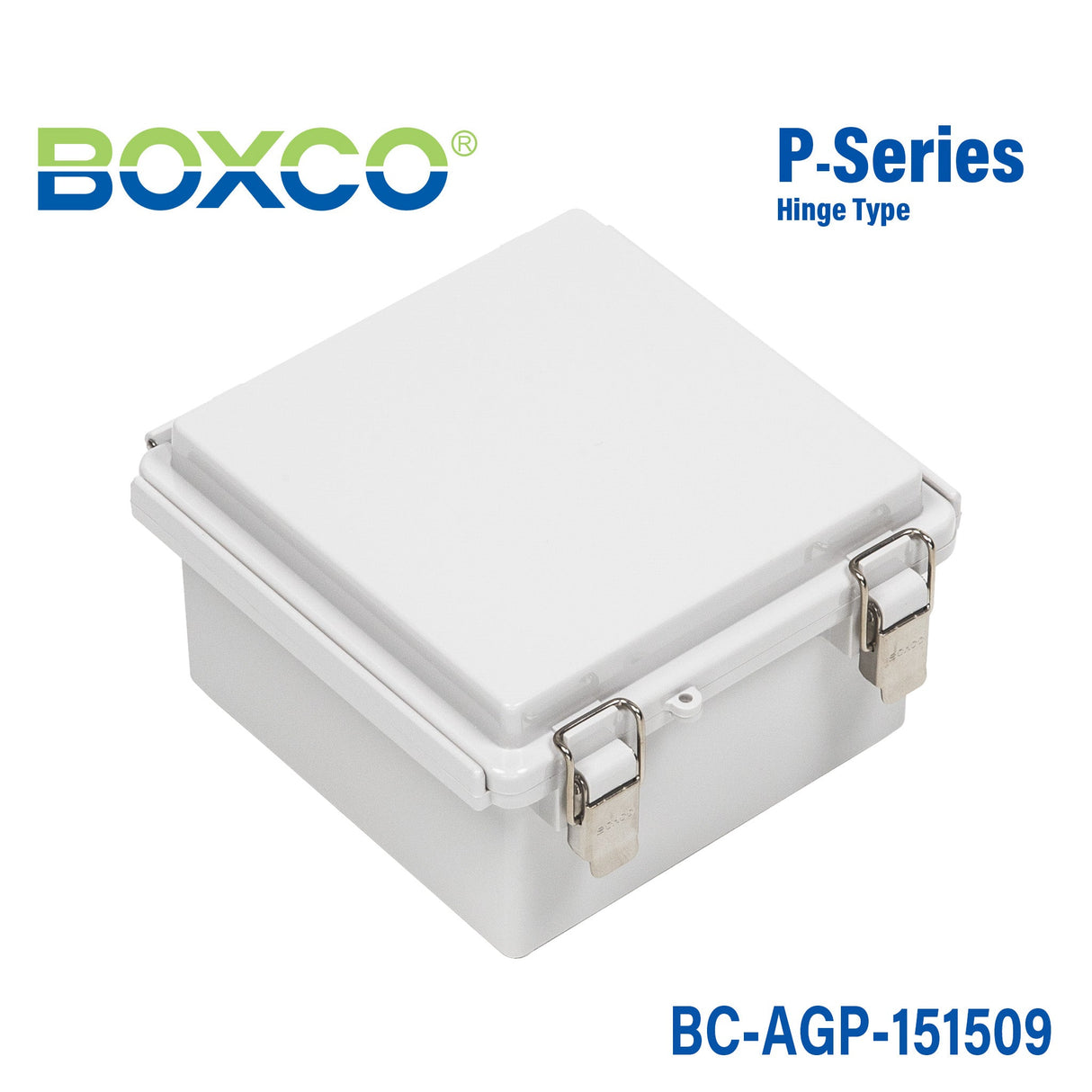

Boxco P-Series 5.91 x 5.91 x 3.54 Inches(150 x 150 x 90mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 5.91 x 5.91 x 3.54 Inches(150 x 150 x 90mm) Plastic ...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width5.91 in
-
Height3.54 in
-
Weight0.76 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure suited for?
This model is suited for protecting electronic controls and instruments that need a sealed non-metallic enclosure in indoor or outdoor settings. Its IP67 sealing, IK08 impact rating, UV-stabilized ABS body, and anti-static material make it a practical fit for general industrial and commercial equipment housings.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection to help reduce water and dust penetration during cover opening and closing. The enclosure is also rated IP67 for dust-tight and water-resistant protection when properly closed.
What are the key specifications of this enclosure?
This enclosure measures 5.91 x 5.91 x 3.54 inches, or 150 x 150 x 90 mm, and weighs 0.344 kg. It is made from ABS, uses a grey cover, carries IP67 and IK08 ratings, and is rated for use from -40 C to 70 C.
How does the molded hinge and latch design benefit this model?
This version uses an integrated molded hinge with a stainless steel bearing to support longer service life. The latch assembly uses stainless steel in the main draw-latch portion, which helps provide a more durable closure for repeated access compared with simpler plastic-only closure designs.
Can this enclosure support internal mounting hardware or equipment plates?
Yes. Boxco includes pre-molded mounting screw nuts so DIN rail or other equipment can be secured inside, and it also provides mounting plate attachment points with brass inserted injection molding. That design helps the enclosure support heavier internal equipment more securely.
What environmental protection does the gasket provide on this model?
Boxco states the gasket is injected by a CNC robot process to improve waterproof and dust-proof performance. Combined with the enclosure's IP67 rating, this helps the box resist dust ingress and water exposure in demanding environments.
