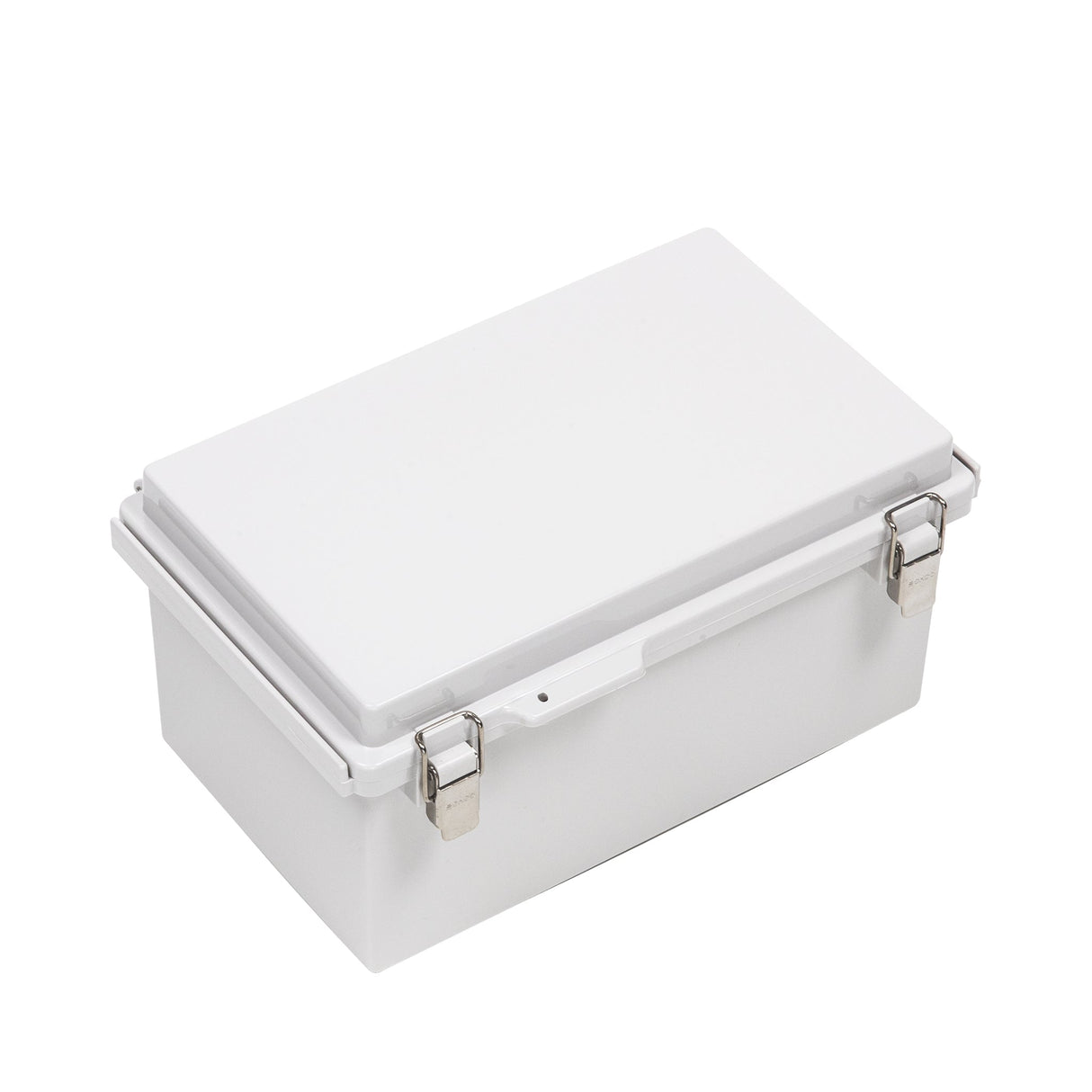

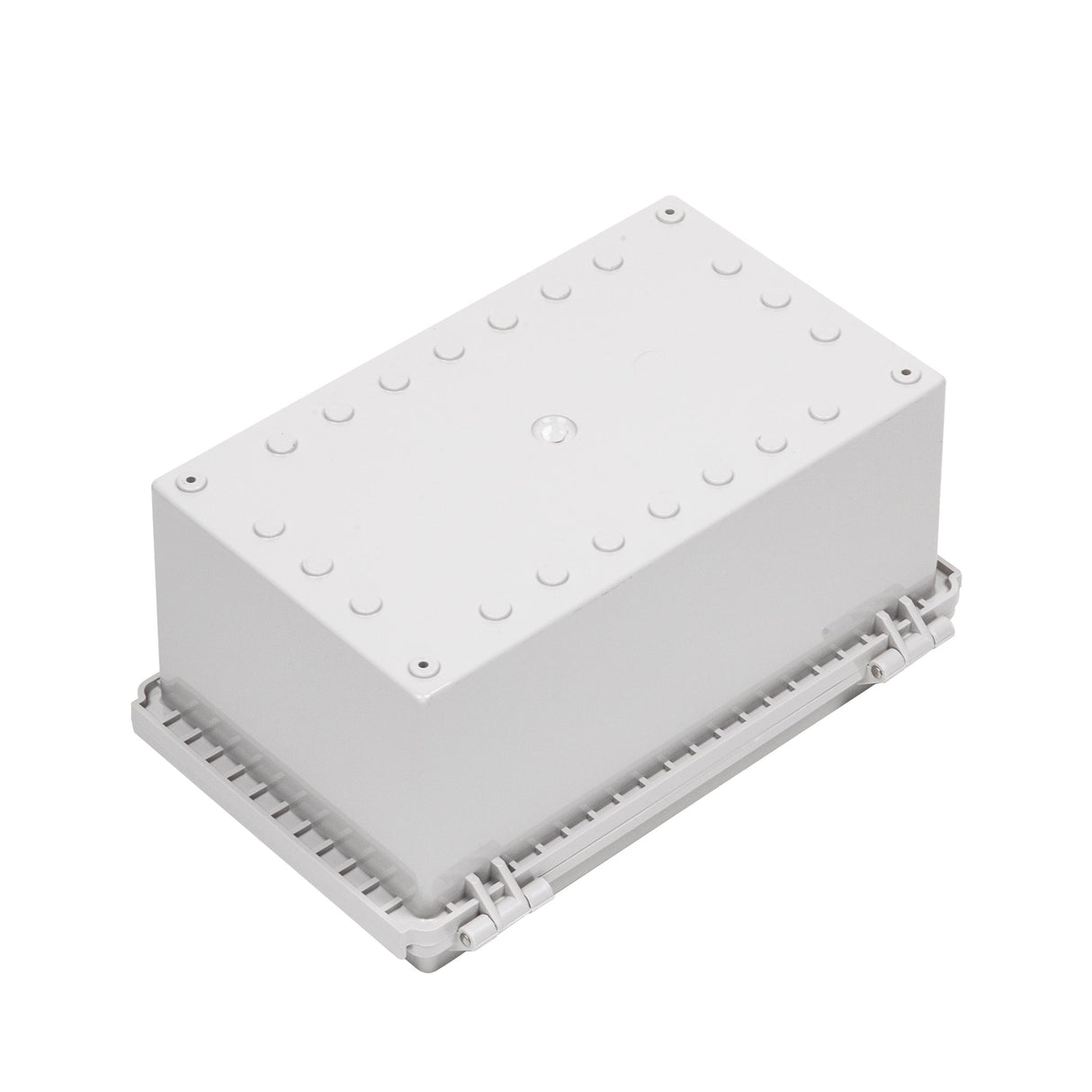

Boxco P-Series 6.30 x 10.24 x 3.94 Inches(160 x 260 x 100mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 6.30 x 10.24 x 3.94 Inches(160 x 260 x 100mm) Plasti...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

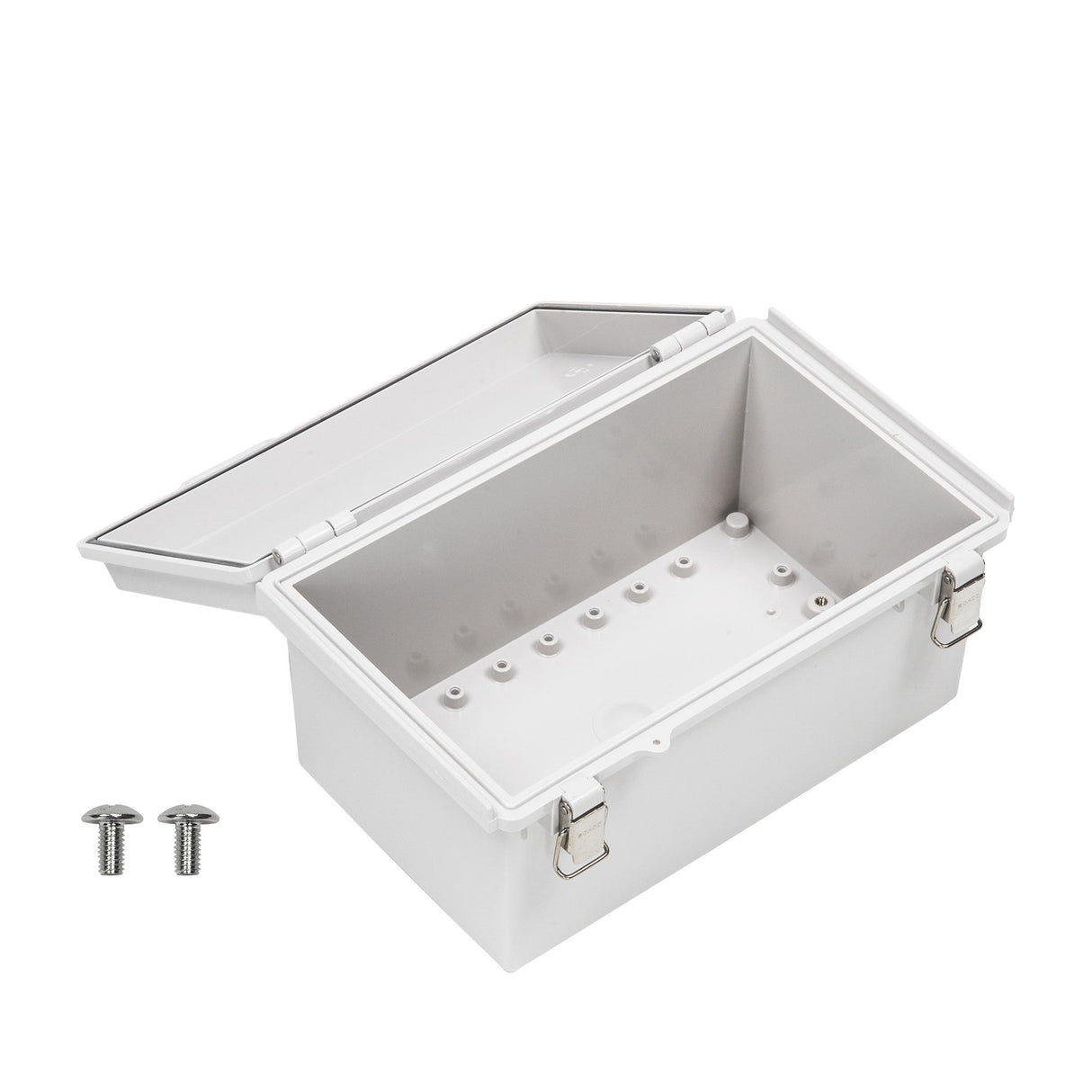

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length6.3 in
-
Width10.24 in
-
Height3.94 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions

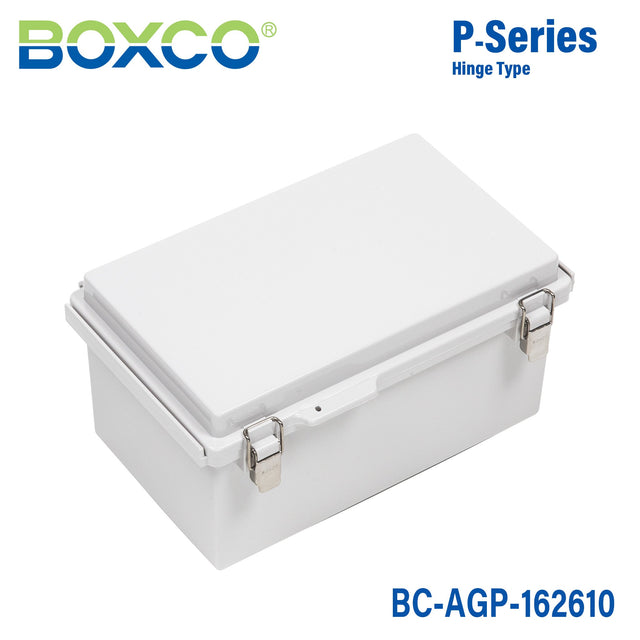

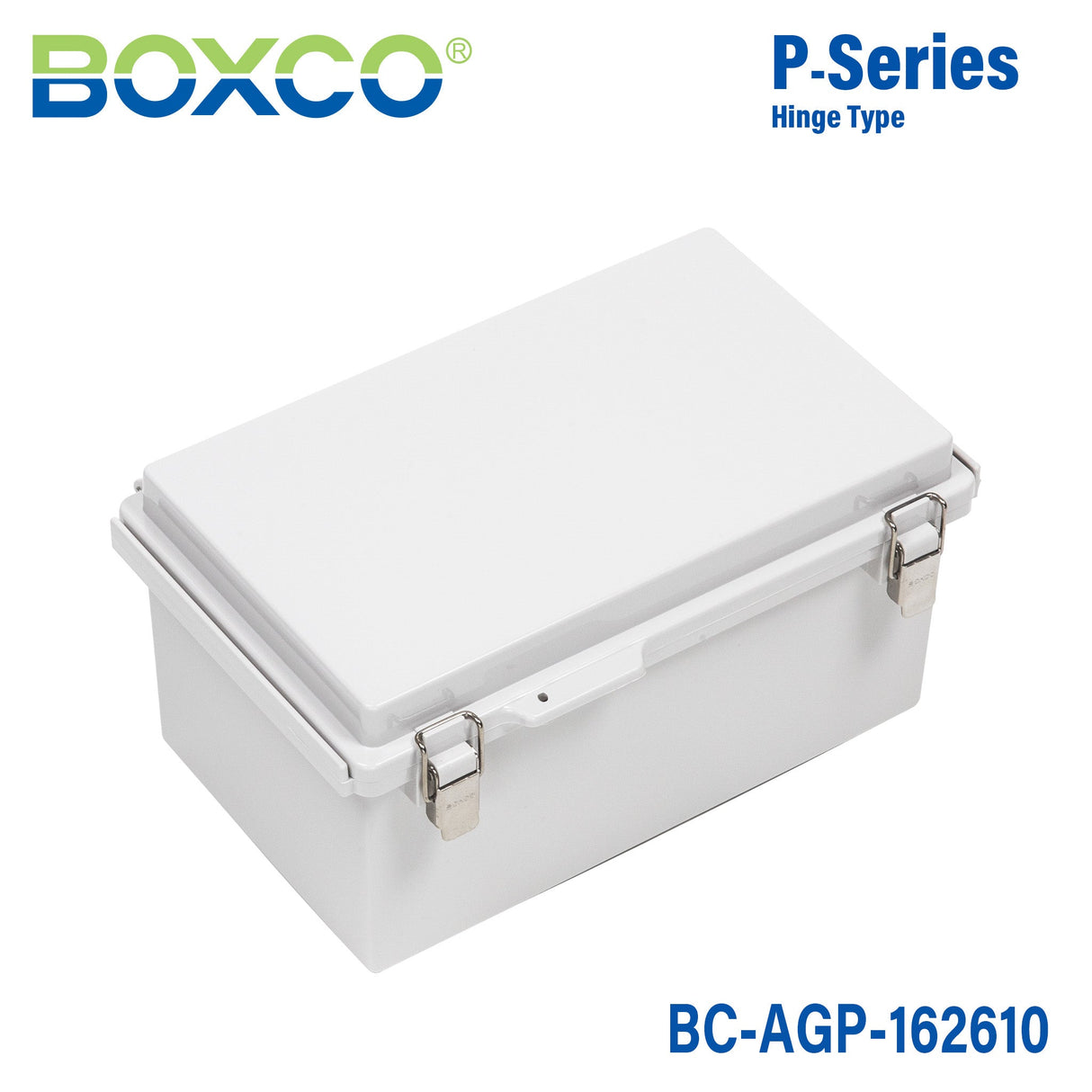

What are the main specifications of the Boxco P-Series BC-AGP-162610 enclosure?
This model measures 6.30 x 10.24 x 3.94 inches (160 x 260 x 100 mm) and is made from ABS with a grey cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.58 kg and has a molded hinge and latch-style cover.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating and roof-protection design also support use in exposed environments where dust and water resistance matter.
What kind of applications is this enclosure intended for?
This enclosure is designed for protecting electronic and industrial components in environments where sealing and impact resistance are important. The anti-static material makes it a strong fit for housing sensitive electronic instruments. Its hinged, latched design is also practical where repeated access to the interior is needed.
What temperature range can this enclosure handle?
The rated operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for both cold and warm industrial or outdoor environments within that range. Buyers should match the full assembly's temperature limits to the most sensitive internal component.
Does this enclosure support mounting internal components?
Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. It also states that the mounting plate can be fixed tightly onto brass-inserted injection molding to support heavier internal equipment.
How does this model differ from a basic plastic enclosure?
Compared with a basic plastic box, this model adds several protective and durability-focused features, including IP67 sealing, IK08 impact resistance, a molded hinge, and a latch with a stainless steel main part. It also includes UV-stabilized material for outdoor use, anti-static properties for sensitive electronics, and detailed sealing features such as a robot-injected gasket.
