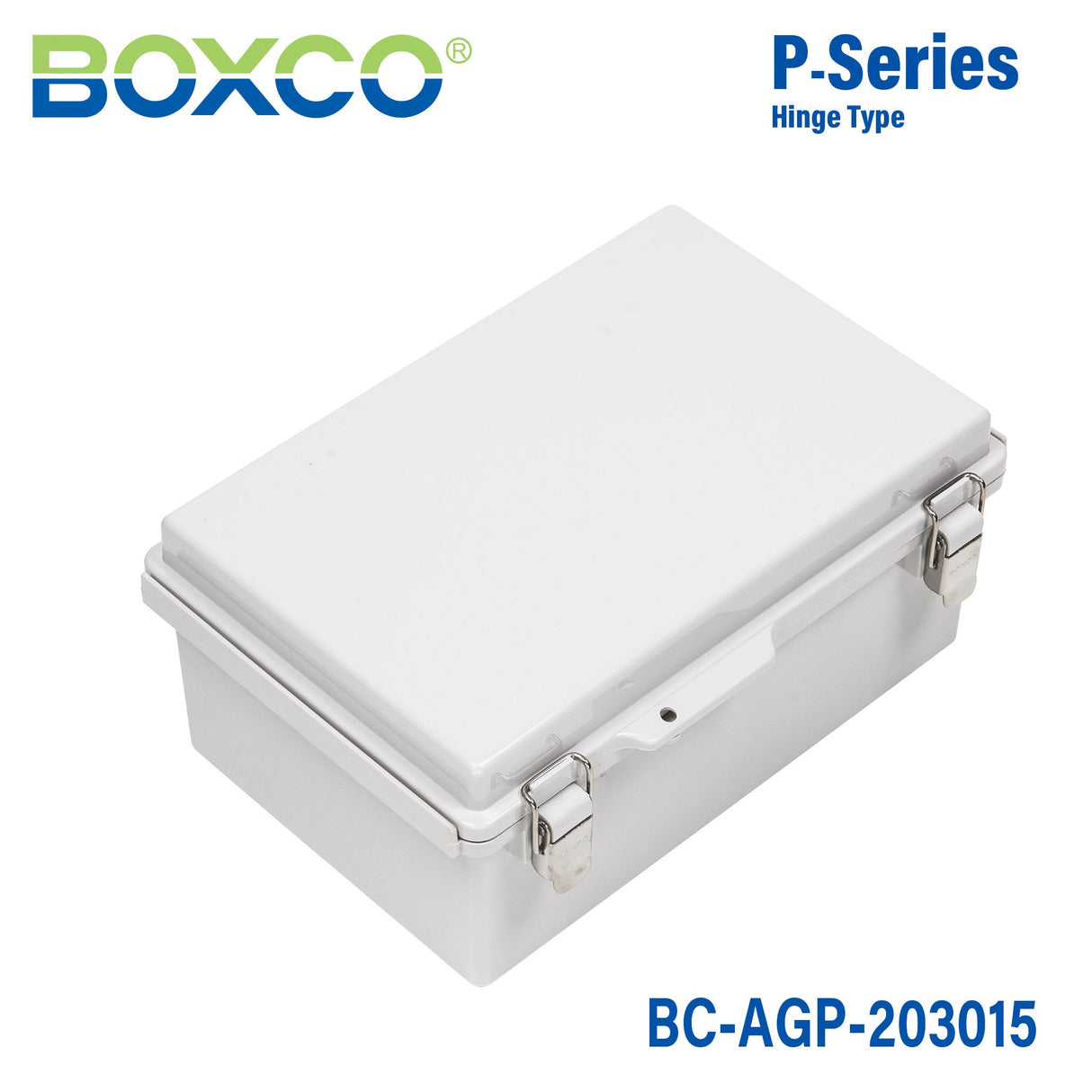

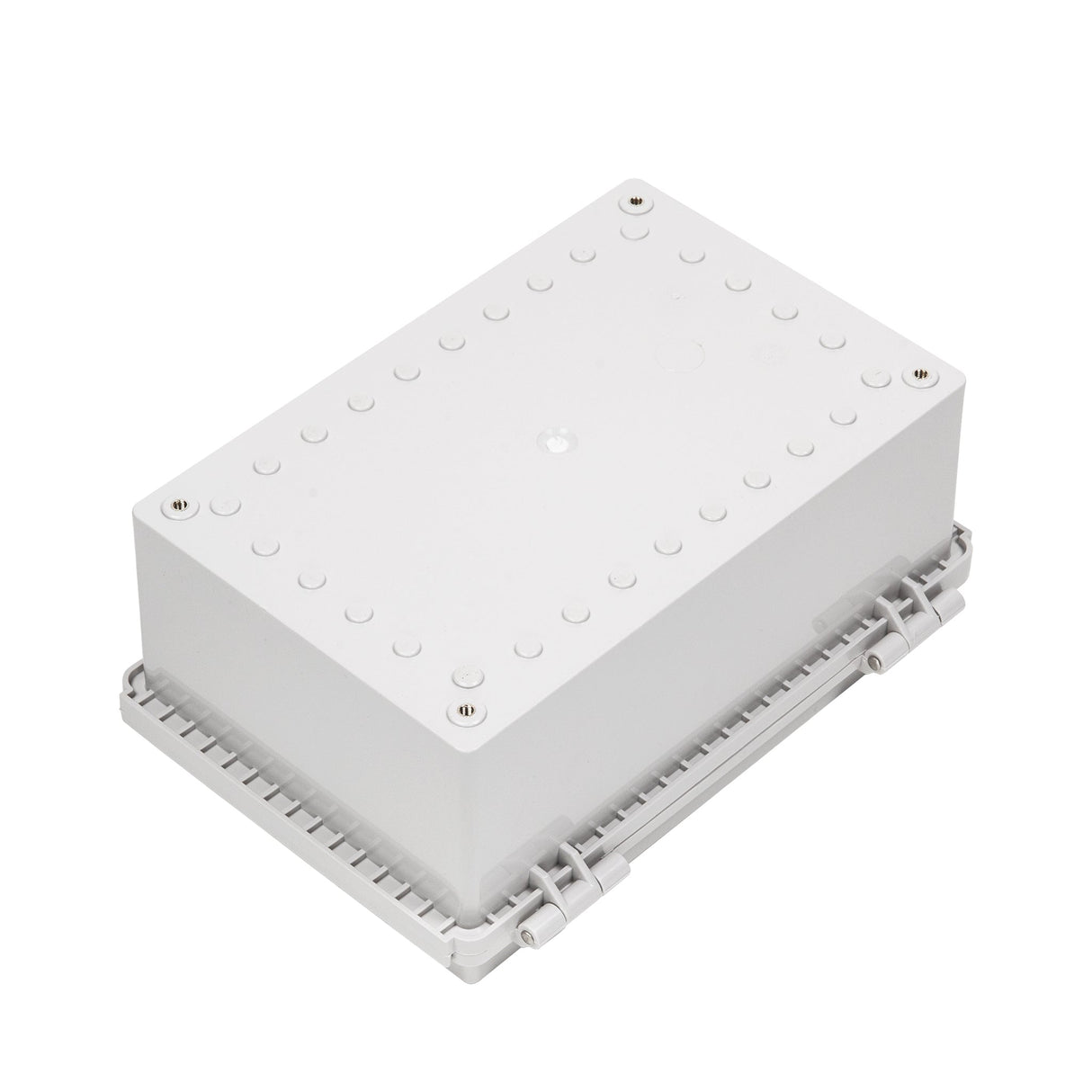

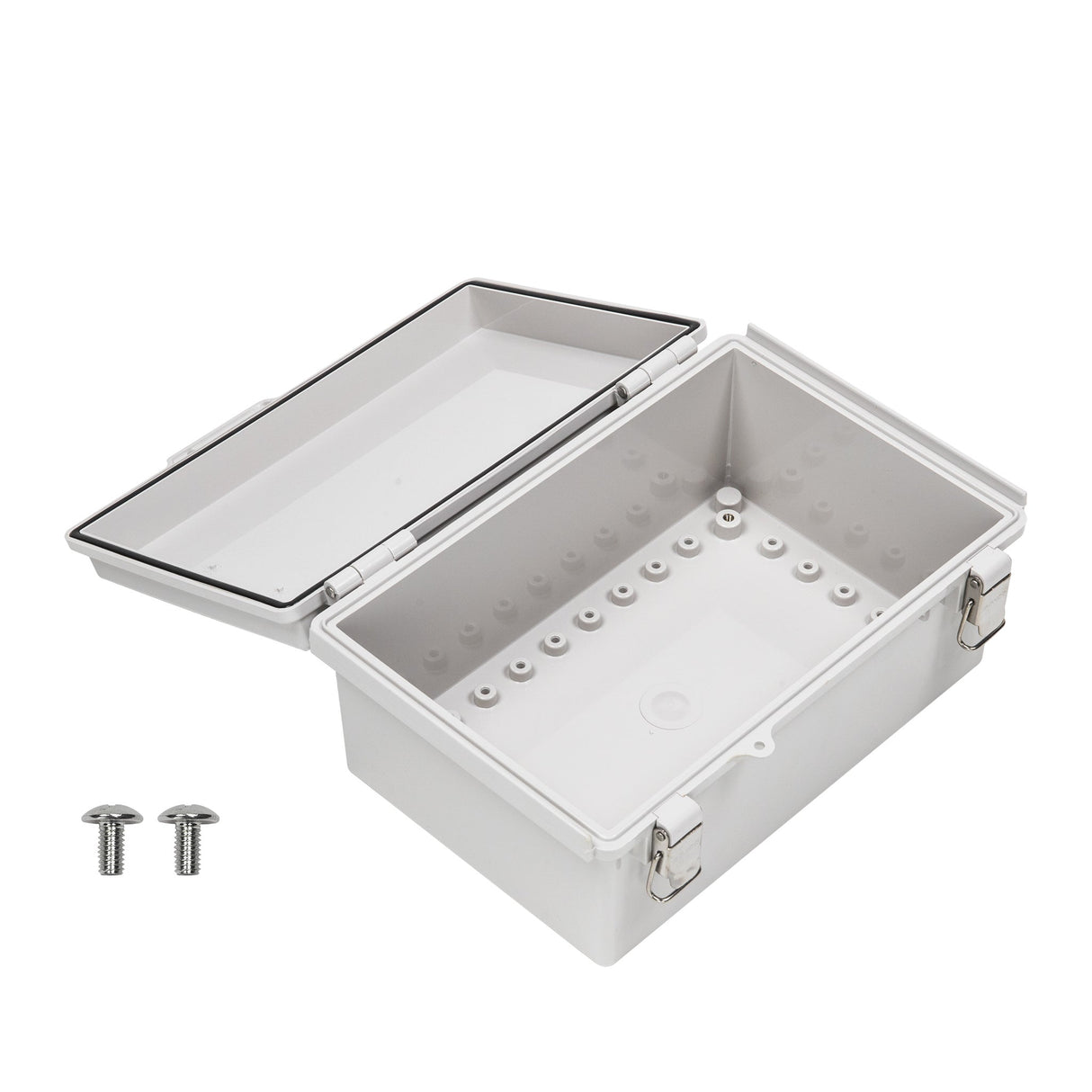

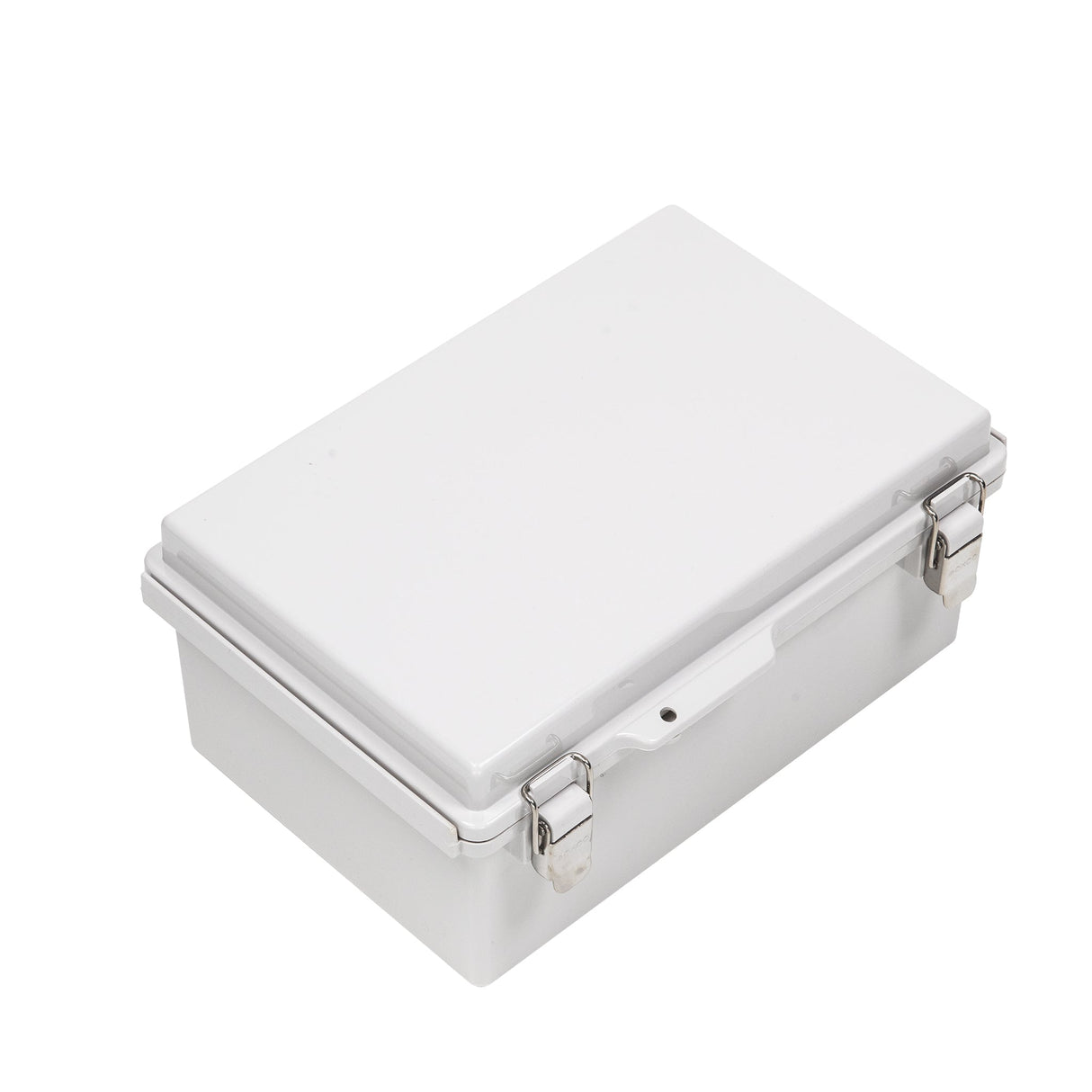

Boxco P-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plasti...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height5.91 in
-
Weight2.21 lb
::specification::
Frequently Asked Questions
What applications is the Boxco P-Series 200 x 300 x 150 mm enclosure suited for?
This enclosure is suited for protecting electronic and control components in industrial, commercial, and outdoor environments where dust and water resistance matter. Its ABS construction, molded hinge and latch design, and IP67 rating make it a practical choice for equipment that needs durable non-metallic housing.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help resist water penetration and dust ingress when the cover is opened and closed.
What protection ratings does this model have?
This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress as well as solid impact resistance for demanding environments.
What material is this enclosure made from, and why does that matter?
This model is made from ABS and uses high impact resistant material for improved durability. Boxco also notes that anti-static material is used to help protect sensitive electronic instruments from static electricity.
What are the dimensions of this enclosure?
The enclosure measures 7.87 x 11.81 x 5.91 inches, which corresponds to 200 x 300 x 150 mm. This size can be useful when you need a larger enclosure for internal components while keeping a compact wall- or equipment-mounted footprint.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may be exposed to cold or heat.
Does this enclosure support mounting internal equipment?
Yes. Boxco lists pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also includes mounting plate attachment points with brass inserted injection molding for handling heavier internal equipment. These features support more robust internal component layouts than a plain empty box.
