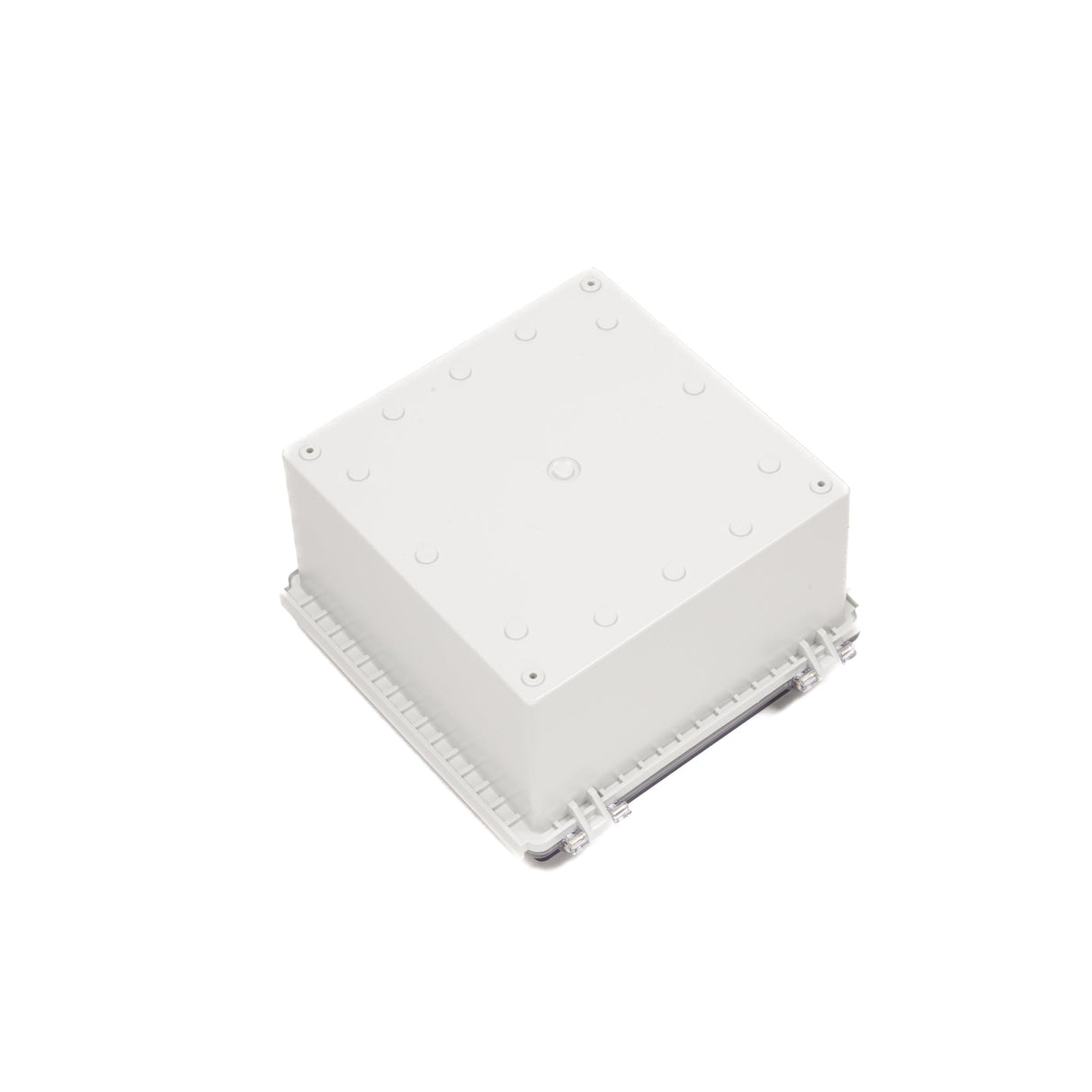

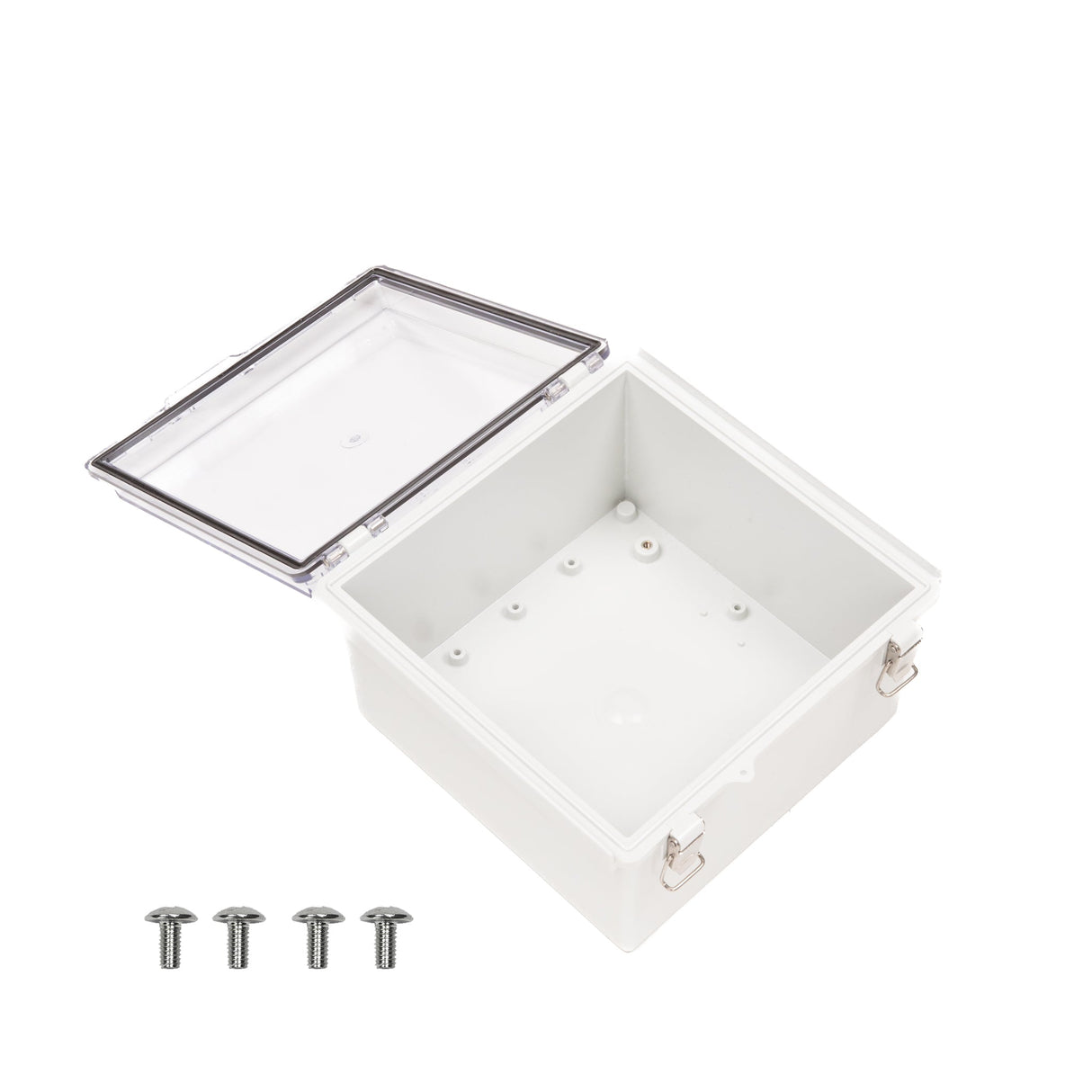

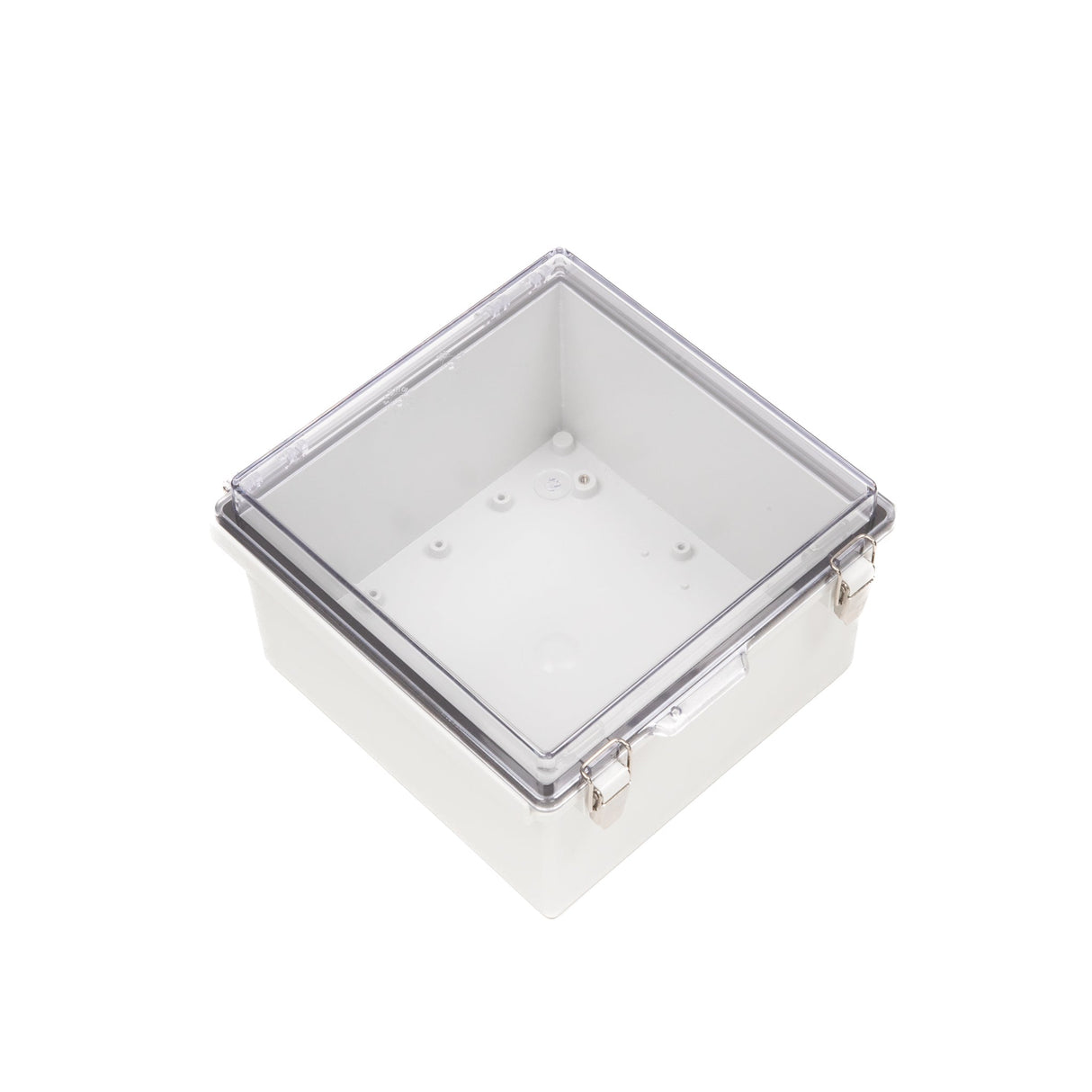

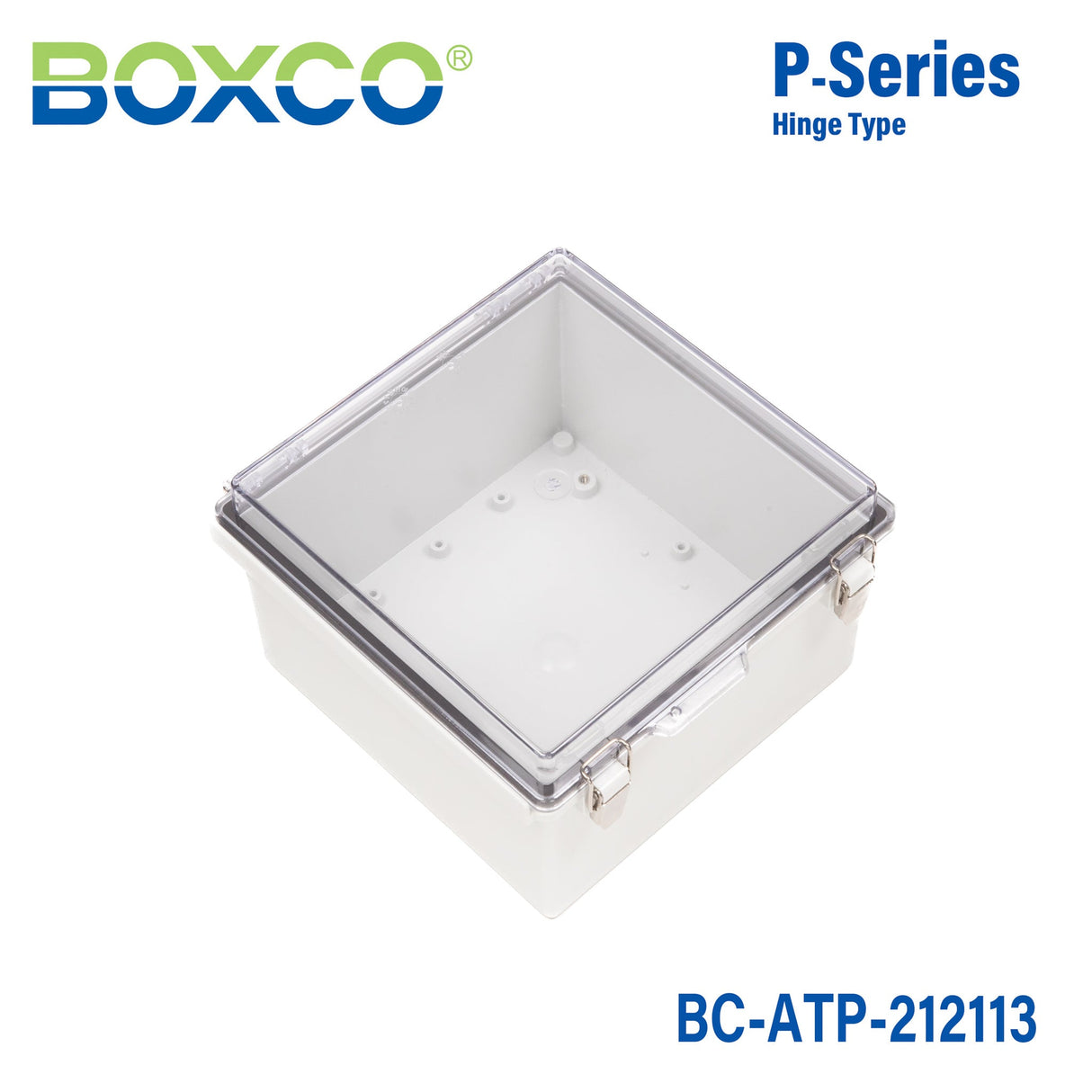

Boxco P-Series 8.27 x 8.27 x 5.12 Inches(210 x 210 x 130mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 8.27 x 8.27 x 5.12 Inches(210 x 210 x 130mm) Plastic...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length8.27 in
-
Width8.27 in
-
Height5.12 in
-
Weight1.68 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure suited for?
This enclosure is suited for protecting electronic components in industrial, commercial, and outdoor equipment housings where a sealed plastic box is needed. Its ABS body, transparent cover, and molded hinge and latch design make it a practical choice when internal components need visibility without opening the enclosure.
Is this enclosure suitable for outdoor environments?
Yes. This model is described with an ultraviolet stabilizer for outdoor use, and the housing design includes roof protection features intended to help resist water and dust entry during cover operation. Its IP67 rating also indicates strong protection against dust and water ingress when properly closed.
What are the key protection ratings for this enclosure?
This model is rated IP67 and IK08. That means it is designed for a high level of dust and water resistance and also offers a defined level of impact protection for demanding enclosure applications.
What material is this enclosure made from?
This Boxco P-Series model is made from ABS plastic and includes a transparent cover. The product description also notes anti-static material usage and high impact resistance, which supports use around sensitive electronic instruments and helps reduce breakage during processing.
What size is this enclosure?
This enclosure measures 8.27 x 8.27 x 5.12 inches, which is 210 x 210 x 130 mm. That size provides a mid-sized enclosure format for housing internal equipment while still remaining compact enough for many panel, machine, or field-use applications.
Does this enclosure support mounting internal components?
Yes. The product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those features make it easier to support heavier internal hardware inside the enclosure.
How does this model differ from a basic non-hinged enclosure box?
This model includes a molded integrated hinge, latch-style closure, transparent cover, and sealing-focused design details such as roof protection and a precision-injected gasket. Compared with a simpler box, it is differentiated by easier repeat access, visibility into the enclosure, and stronger positioning for outdoor and industrial protection needs.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for environments with both low and elevated temperatures, provided the rest of the application is designed within those same operating limits.
