Boxco Q-Series 5.91 x 5.91 x 4.72 Inches(150 x 150 x 120mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 5.91 x 5.91 x 4.72 Inches(150 x 150 x 120mm) Plastic...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

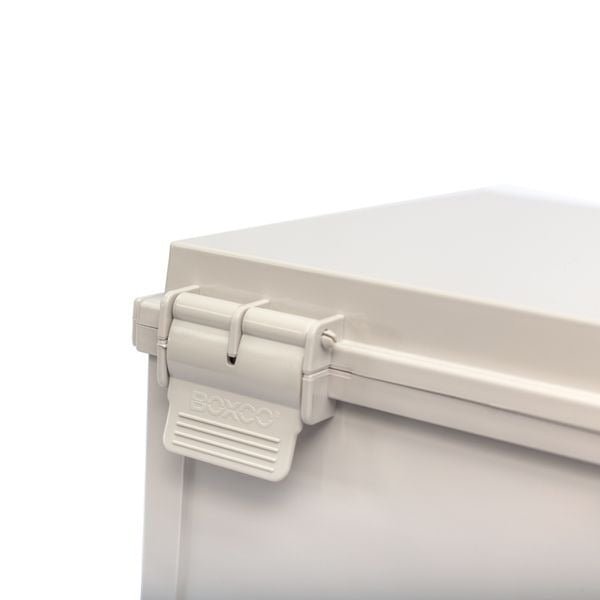

- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

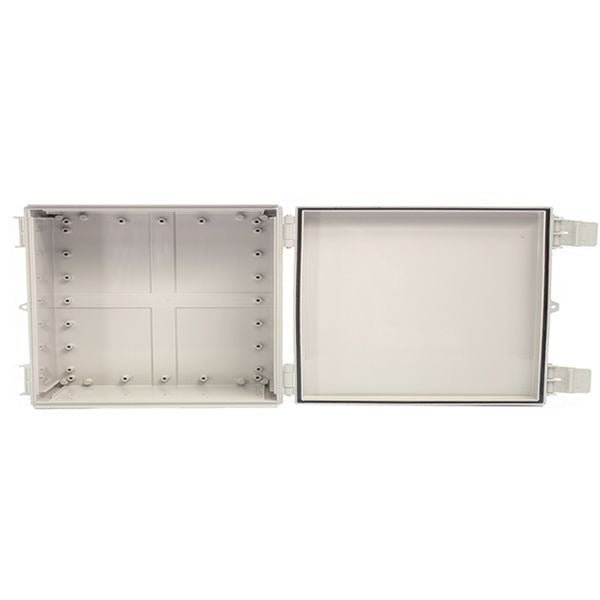

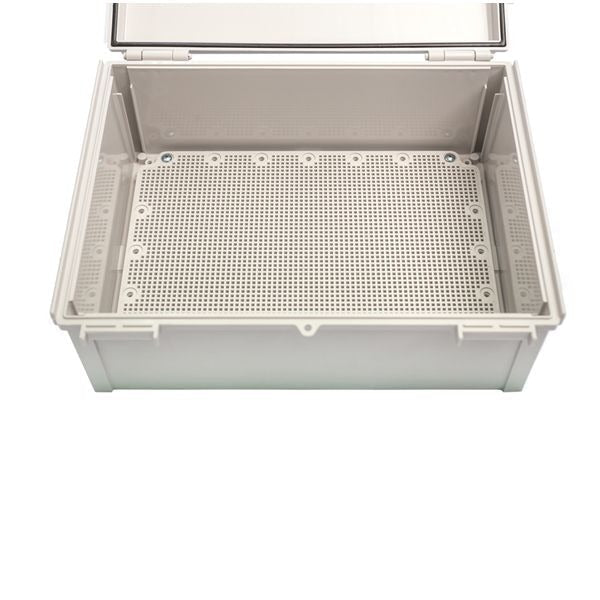

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width5.91 in
-
Height4.72 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
What is this Boxco Q-Series enclosure typically used for?
This enclosure is intended for protecting electrical or electronic components in industrial and commercial equipment housings. Its ABS construction, transparent cover, and hinged latch design make it a practical choice when users need enclosed protection while still being able to visually inspect contents without opening the box.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. It also includes design features intended to help resist water and dust intrusion when used in exposed environments.
How much protection does this enclosure provide against dust, water, and impact?
This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers impact resistance suitable for demanding industrial environments.
What material is this enclosure made from?
This model is made from ABS plastic and includes a transparent cover. The description also notes anti-static material use for protection of sensitive electronic instruments and highlights the enclosure's high impact resistance.
What are the dimensions of this enclosure?
The enclosure measures 5.91 x 5.91 x 4.72 inches, which corresponds to 150 x 150 x 120 mm. This size can be useful when selecting a compact enclosure with enough internal space for protected components and accessories.
What temperature range can this enclosure handle?
This Boxco Q-Series enclosure is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may face low or elevated ambient temperatures.
Does this enclosure support internal mounting hardware or accessories?
Yes. The description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. These built-in features help support organized component mounting inside the enclosure.
What distinguishes this model from a basic non-hinged enclosure box?
This version includes a transparent cover plus a plastic hinge and latch design, which can make repeated access and visual inspection more convenient than a plain screw-fastened cover style. It also includes Q-Series features such as roof protection, injected gasket sealing, and mounting support points.
