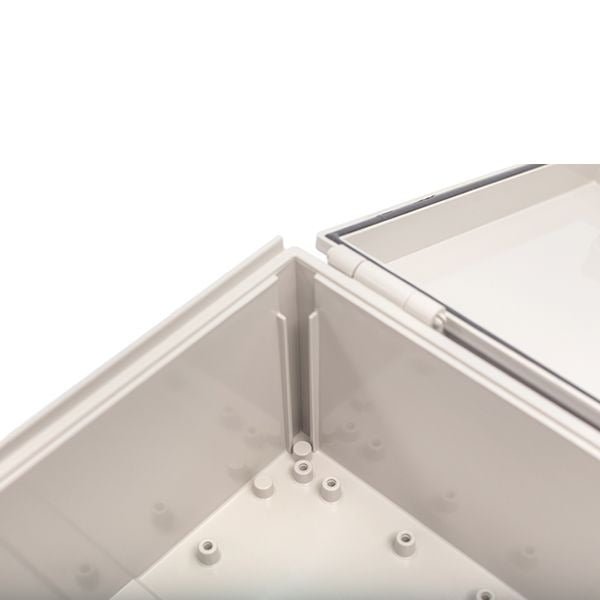

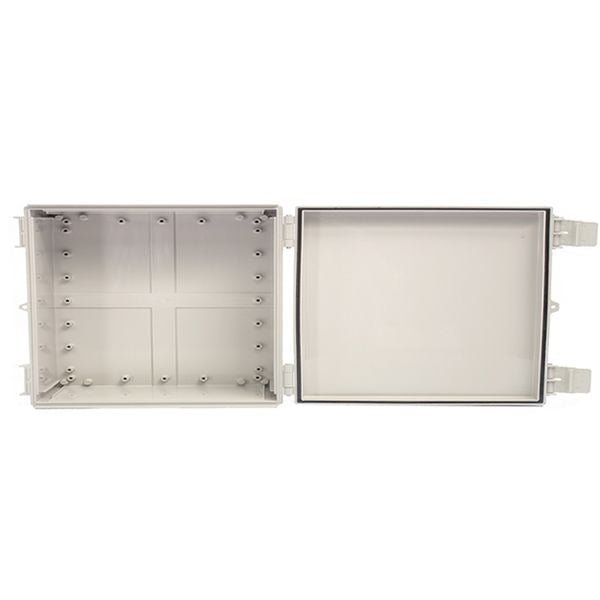

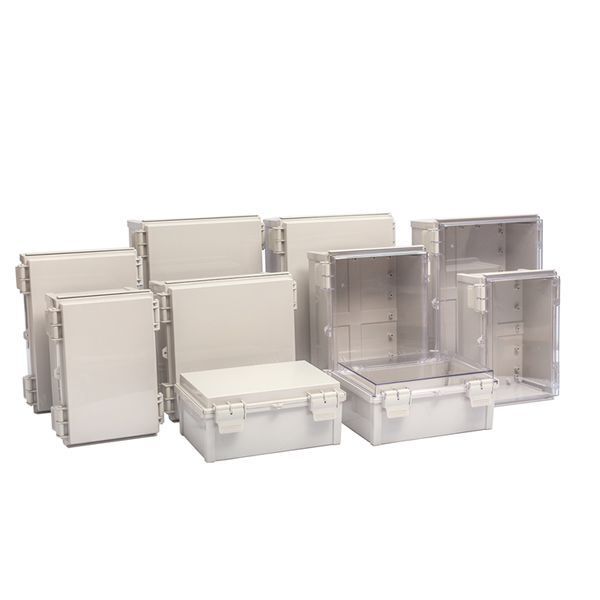

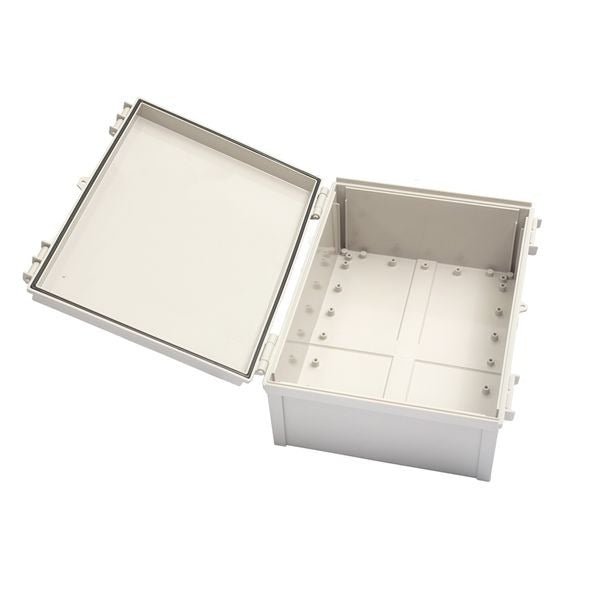

Boxco Q-Series 6.30 x 8.27 x 3.94 Inches(160 x 210 x 100mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 6.30 x 8.27 x 3.94 Inches(160 x 210 x 100mm) Plastic...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

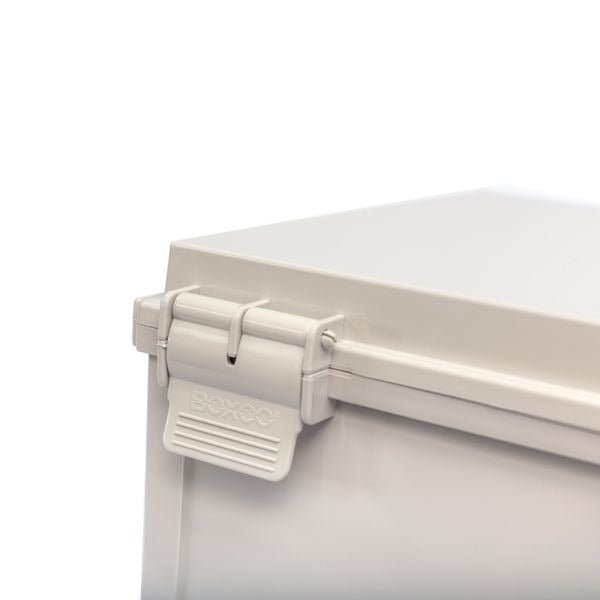

- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

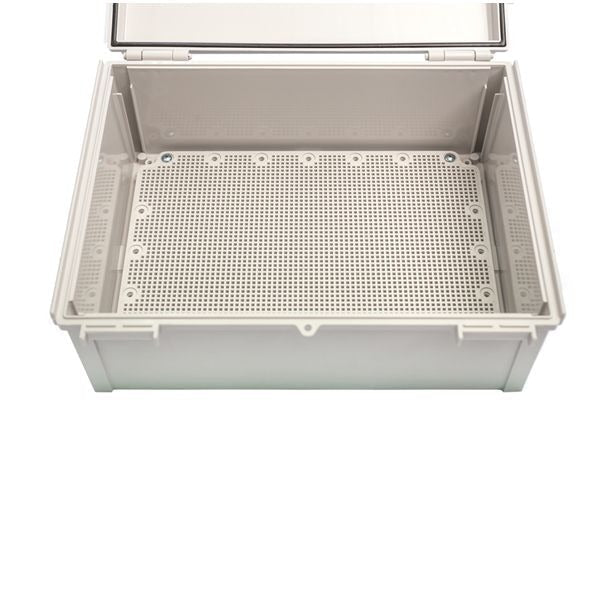

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length6.3 in
-
Width8.27 in
-
Height3.94 in
-
Weight0.98 lb
::specification::
Frequently Asked Questions
What are the dimensions of this Boxco Q-Series enclosure?
This enclosure measures 6.30 x 8.27 x 3.94 inches, which corresponds to 160 x 210 x 100 mm. That size makes it suitable for protecting larger internal components while still fitting within many industrial and commercial enclosure applications.
Is this enclosure suitable for outdoor use?
Yes, this model is designed for outdoor use. The Q-Series includes an ultraviolet stabilizer to help reduce long-term color change from sun exposure, and its design includes roof protection features to help resist water and dust intrusion during outdoor use.
What do the IP67 and IK08 ratings mean for this enclosure?
The IP67 rating indicates this enclosure is built for strong protection against dust and temporary water exposure. The IK08 impact rating means the ABS body is designed to resist external mechanical impact better than basic general-purpose housings.
What material is this enclosure made from?
This model is made from ABS plastic and includes a transparent cover. The housing is described as high impact resistant, and the material also includes anti-static properties intended to help protect sensitive electronic instruments.
What type of cover and closure does this model use?
This enclosure uses a transparent cover with a plastic hinge and latch type closure. The latch design uses plastic in the main draw latch area to help prevent erosion, which can be useful in demanding environments.
What temperature range can this enclosure handle?
This enclosure is rated for use from -40 degrees C to 70 degrees C. That operating range supports use in a wide variety of indoor and outdoor industrial environments where temperature swings are a concern.
What kinds of applications is this enclosure best suited for?
This model is well suited for protecting sensitive electronic instruments and other components that need a sealed non-metallic enclosure. Its anti-static material, transparent cover, and high ingress protection make it a practical option for industrial, control, and outdoor equipment housings.
