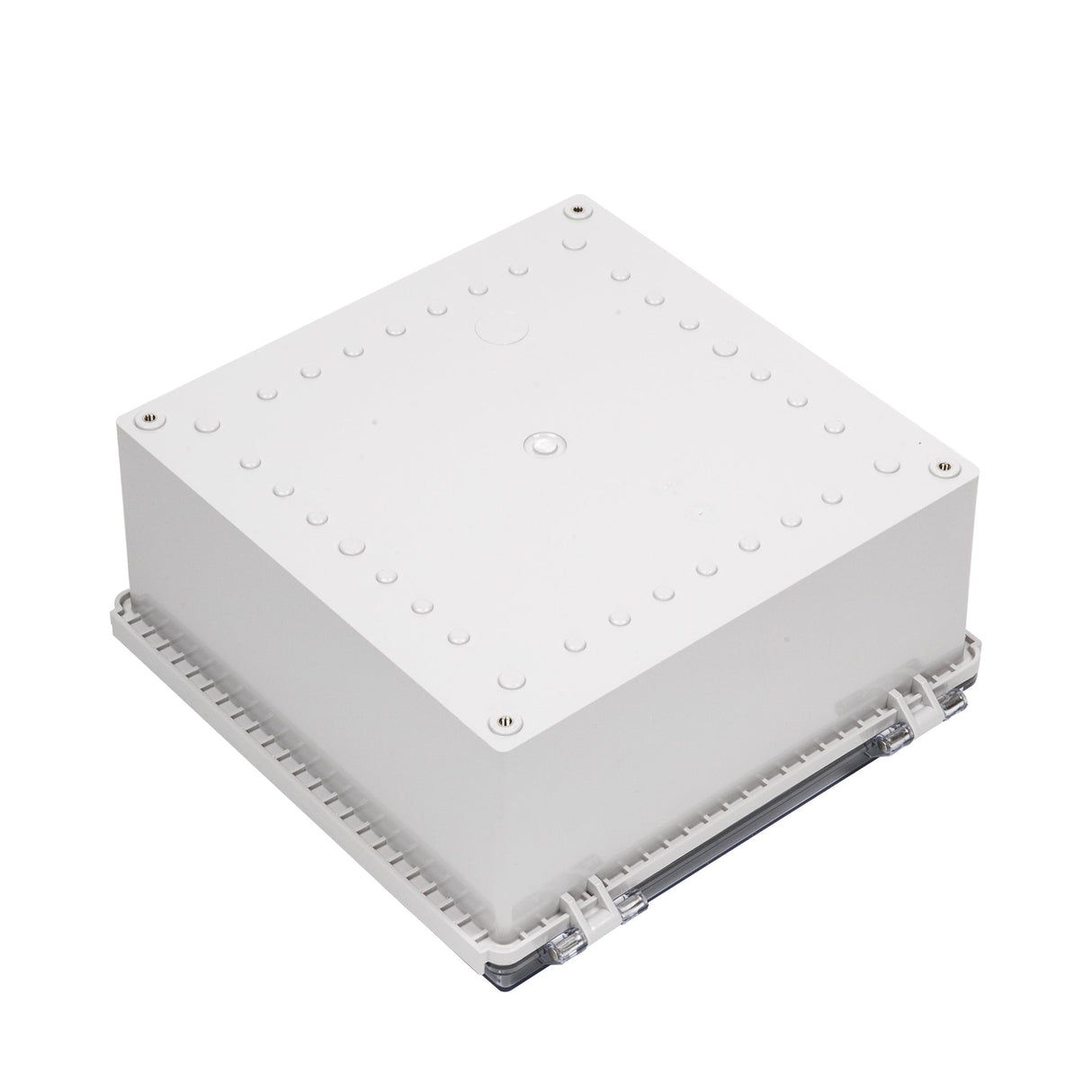

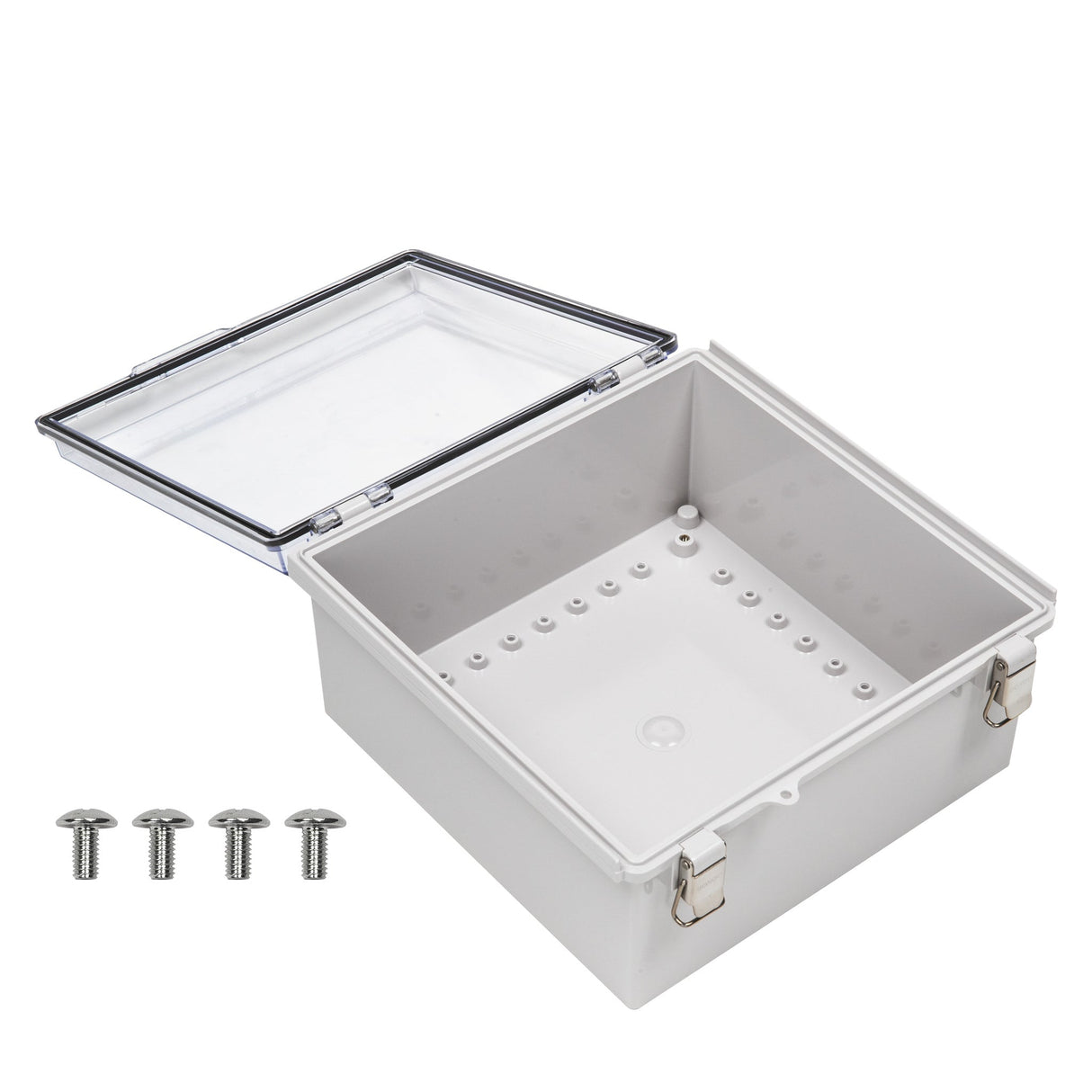

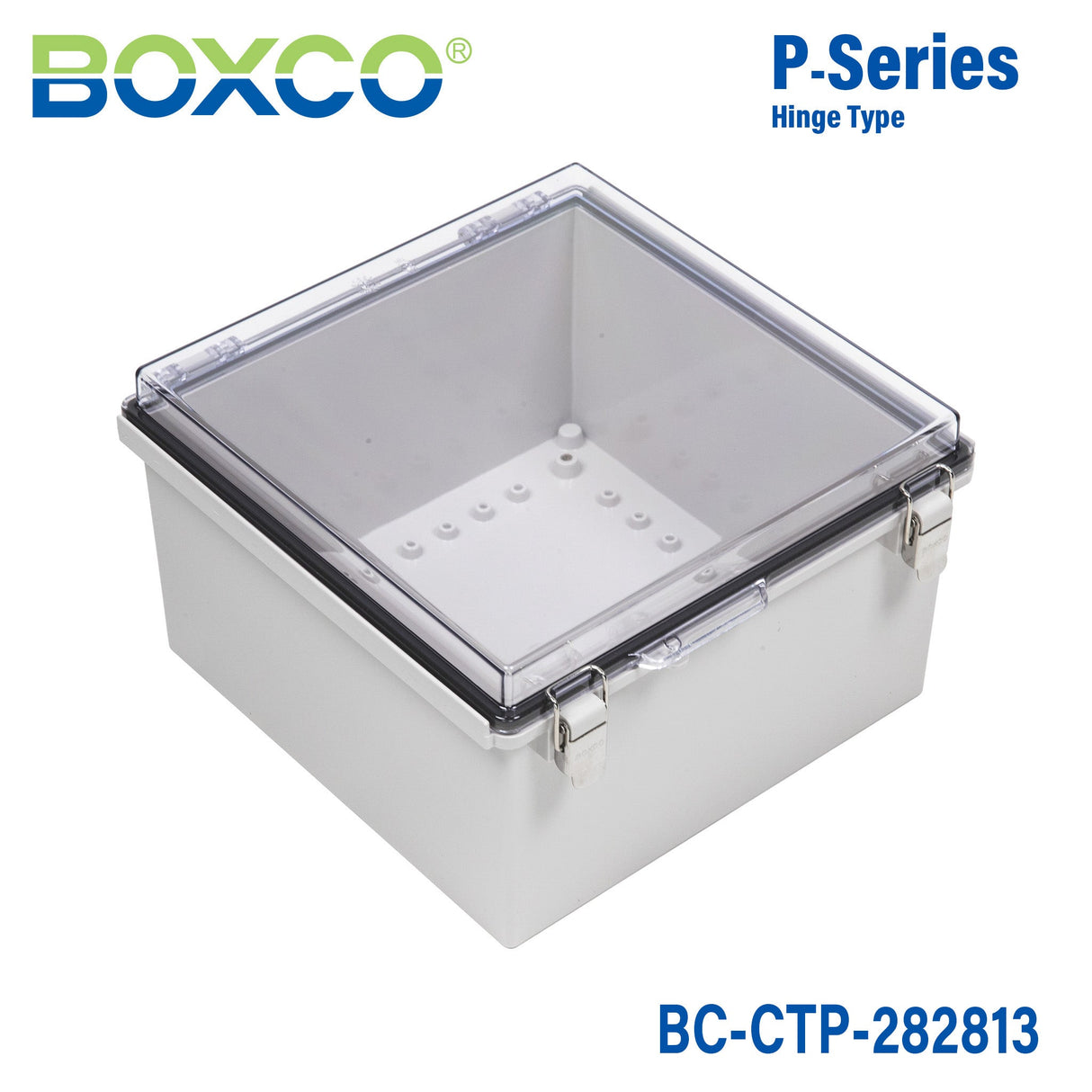

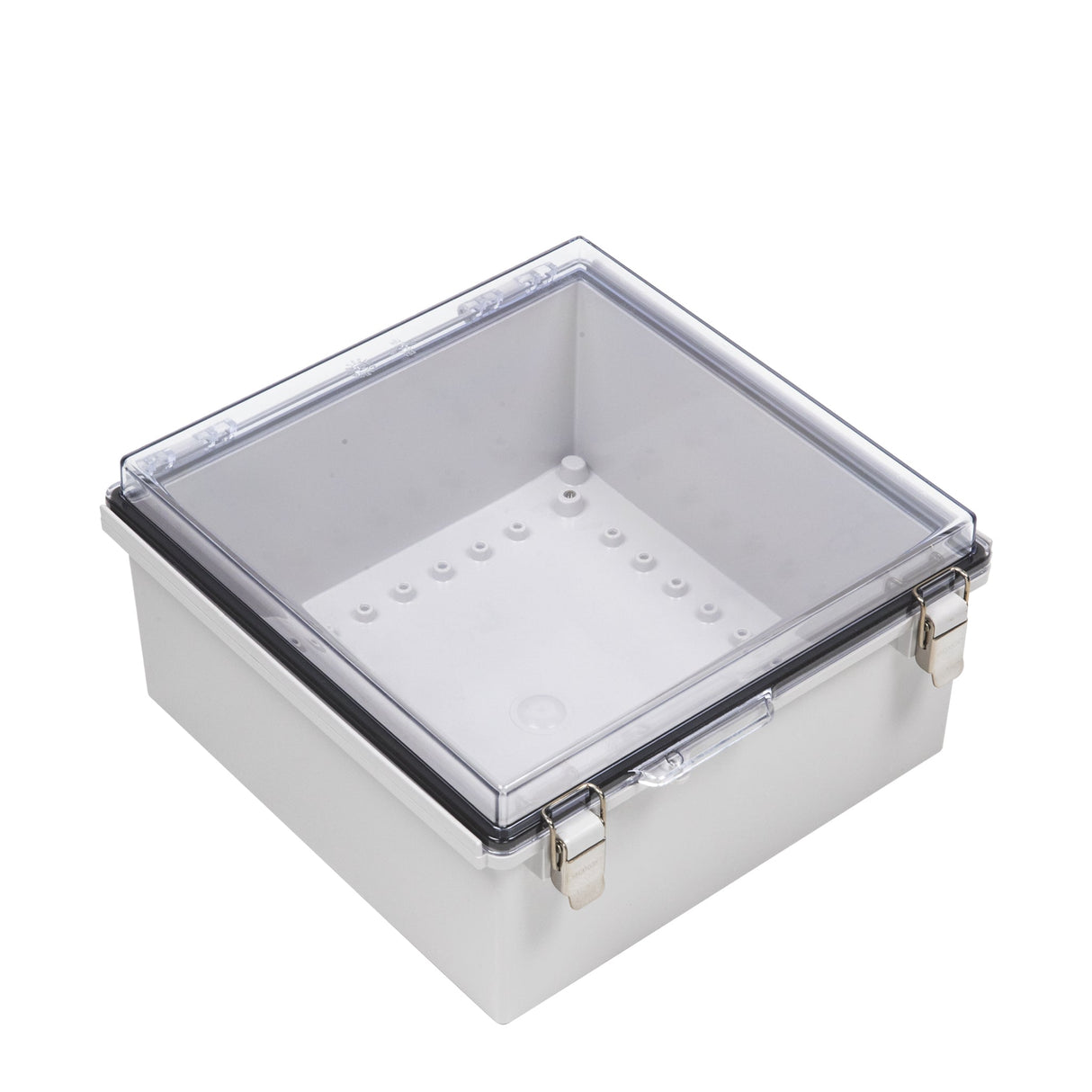

Boxco P-Series 11.02 x 11.02 x 5.12 Inches(280 x 280 x 130mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 11.02 x 11.02 x 5.12 Inches(280 x 280 x 130mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width11.02 in
-
Height5.12 in
-
Weight3.05 lb
::specification::
Frequently Asked Questions
What are the main protection ratings of the Boxco P-Series BC-CTP-282813 enclosure?
This model is rated IP67 for dust-tight and water-resistant enclosure performance and IK08 for impact resistance. It is built from polycarbonate with a transparent cover and is intended for demanding indoor or outdoor equipment protection. The product description also notes UV stabilizer and anti-static material for added durability in exposed or sensitive applications.
Is the BC-CTP-282813 suitable for outdoor use?
Yes, this enclosure is designed for outdoor use. The P-Series description states that UV stabilizer is added to reduce long-term color change, and the roof-protection design helps resist water and dust intrusion when the cover is opened and closed. Its IP67 rating also supports use in exposed environments where moisture and dust are concerns.
What size is this enclosure, and how much internal capacity does it offer?
The enclosure size is 11.02 x 11.02 x 5.12 inches, which corresponds to 280 x 280 x 130 mm. That makes it a relatively large plastic enclosure for control, protection, or housing applications that need more internal space than compact junction-style boxes. The listed product weight is 1.385 kg.
What makes this model different from a standard non-hinged plastic enclosure?
This version includes a molded hinge and latch-type cover, which distinguishes it from simpler screw-fastened box designs. The hinge is integrated into the enclosure, and the bearing is stainless steel to improve service life. It also uses a transparent cover, which is useful when internal indicators or components need to remain visible without opening the box.
Can the BC-CTP-282813 be used for sensitive electronic equipment?
Yes, it is suitable for applications involving sensitive electronics because the description specifies anti-static material. That helps reduce static-related risk compared with general-purpose plastic housings that do not call out this feature. Its impact-resistant polycarbonate construction also helps protect equipment from external mechanical stress.
What temperature range can this enclosure handle?
The listed operating temperature range is -40 °C to 110 °C. That supports use in both cold and high-heat environments where lighter-duty enclosures may be unsuitable. Buyers should still confirm that the full assembled application stays within the limits of both the enclosure and the installed equipment.
Does this enclosure support internal mounting hardware or equipment plates?
Yes, the product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points. It is designed so internal mounting plates can be fixed tightly onto brass inserted injection molding to support heavier installed equipment. This makes it more suitable for organized internal layouts than a basic empty box without mounting provisions.
What warranty is listed for the BC-CTP-282813?
The listed warranty period for this model is 1 year. For buyers comparing enclosure options, that provides a defined baseline for support on this specific Boxco P-Series unit. Warranty terms beyond the listed period would need to be confirmed with the seller or manufacturer documentation.
