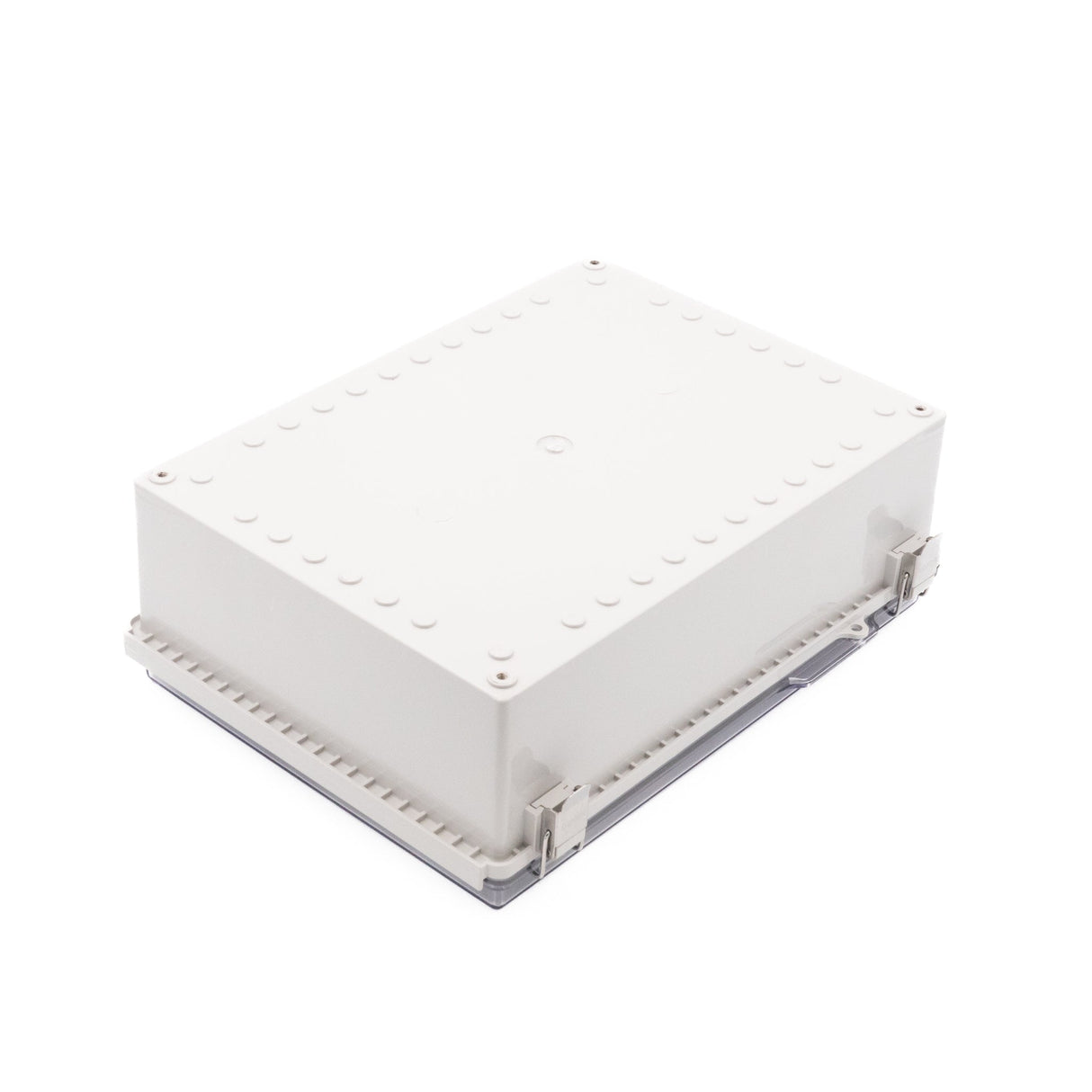

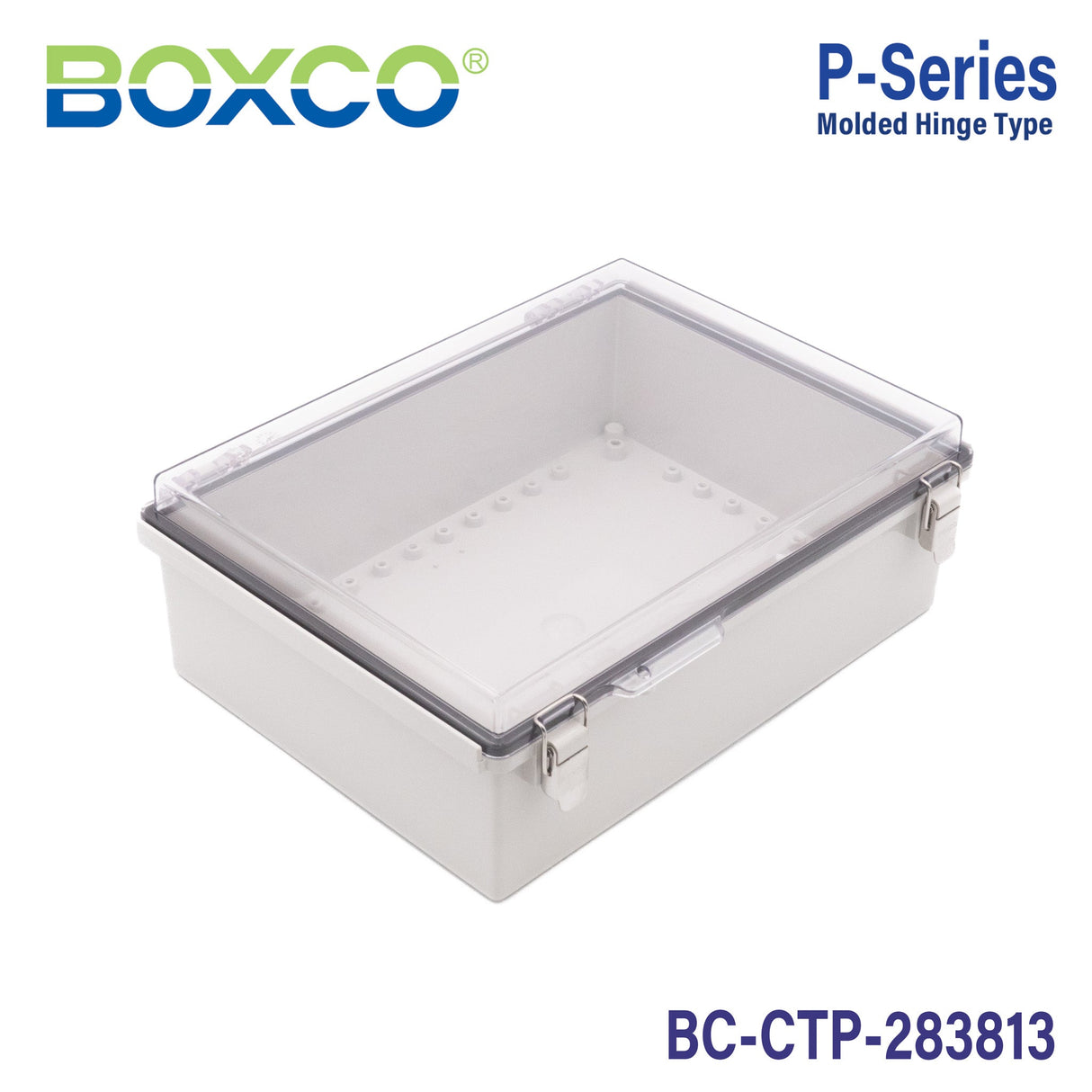

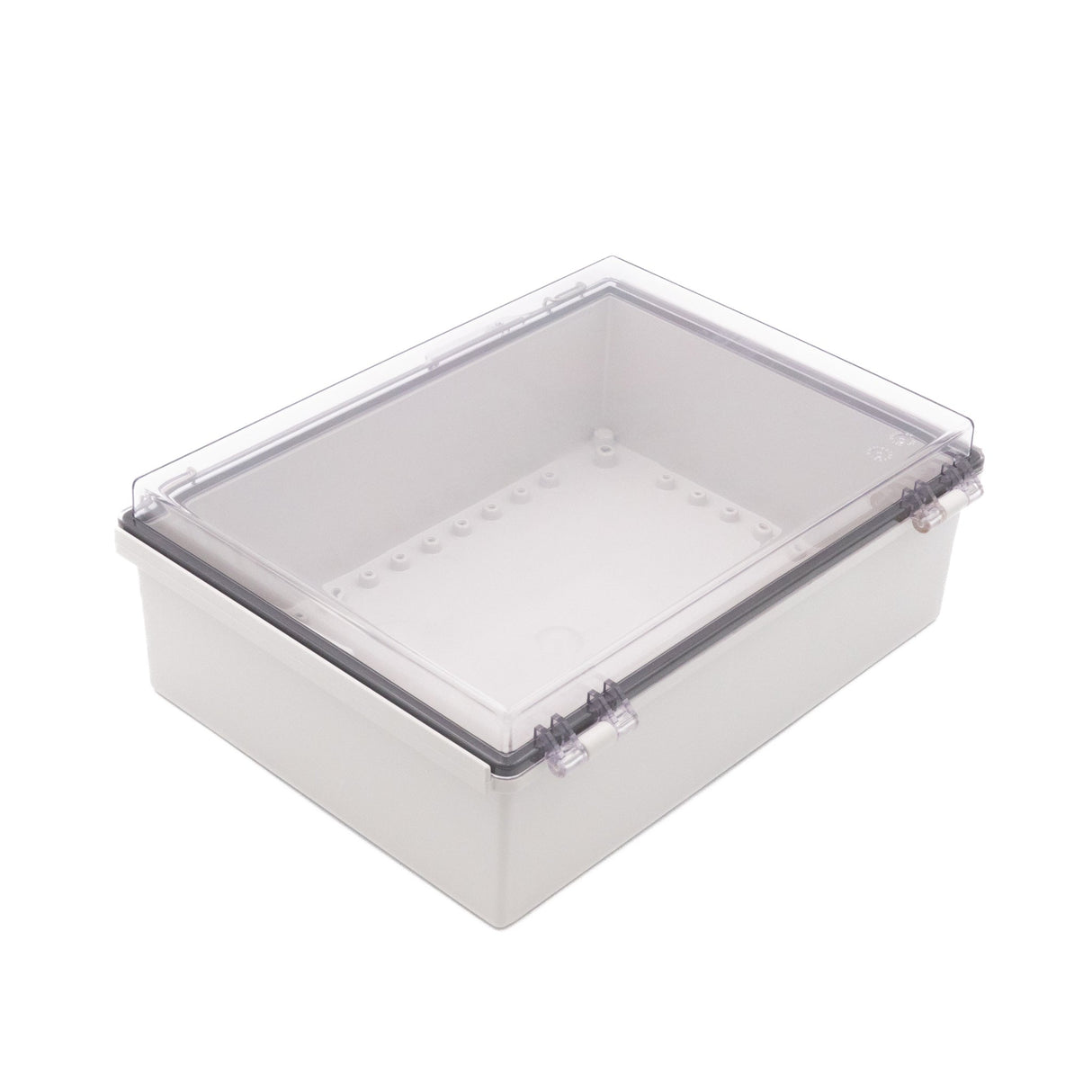

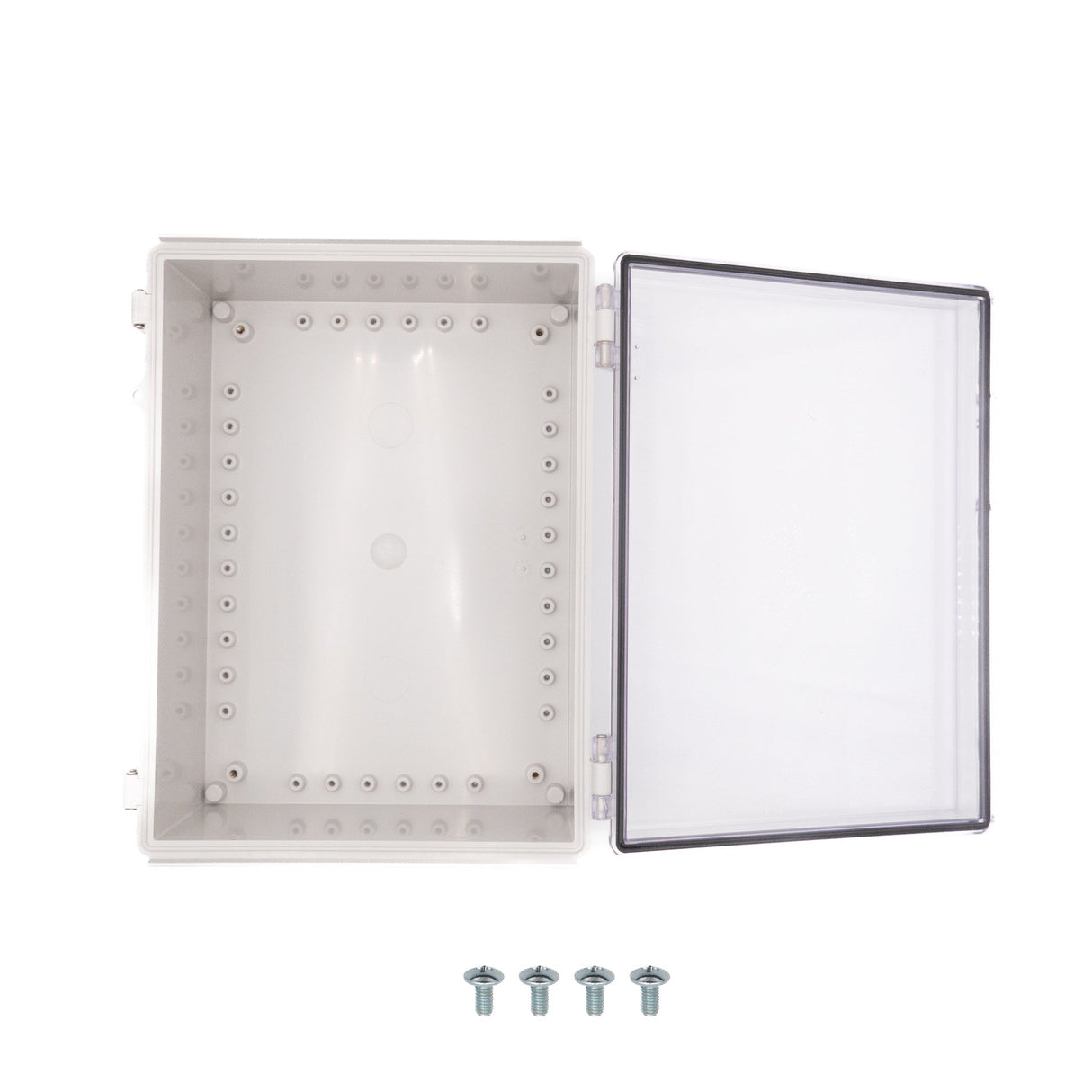

Boxco P-Series 11.02 x 14.96 x 5.12 Inches(280 x 380 x 130mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 11.02 x 14.96 x 5.12 Inches(280 x 380 x 130mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width14.96 in
-
Height5.12 in
-
Weight3.66 lb
::specification::
Frequently Asked Questions
What are the main dimensions of this enclosure?
This Boxco P-Series enclosure measures 11.02 x 14.96 x 5.12 inches, which corresponds to 280 x 380 x 130 mm. It provides a relatively large plastic enclosure format for protecting internal components in industrial or outdoor applications.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use, and the design includes roof protection features to reduce water and dust penetration during cover operation. Its IP67 rating also supports use in demanding environments where sealing matters.
What do the IP67 and IK08 ratings mean for this model?
This model is rated IP67 for dust-tight sealing and protection against temporary water immersion under rated conditions. It also carries an IK08 impact rating, indicating resistance to external mechanical impact for a plastic enclosure in this class.
What material is this enclosure made from?
This enclosure is made from polycarbonate (PC) and includes a transparent cover. The description also notes high impact resistance and anti-static material properties, which can be useful when housing sensitive electronic equipment.
What temperature range can this enclosure handle?
This model is specified for temperatures from -40 °C to 110 °C. That range makes it suitable for environments with both low-temperature exposure and elevated operating heat within the stated limits.
What types of applications is this enclosure typically used for?
This enclosure is intended for protecting electrical or electronic equipment that needs a sealed, impact-resistant housing. Its anti-static material, transparent cover, molded hinge, latch design, and internal mounting points make it relevant for industrial control, instrumentation, and outdoor equipment protection use cases.
Does this enclosure support internal mounting hardware or accessories?
Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding. These features help support secure internal equipment mounting inside the enclosure.
What kind of cover and closure design does this model use?
This model has a transparent cover with a molded hinge and latch type closure. The integrated plastic hinge uses a stainless steel bearing to improve service life, and the draw latch main part is made of stainless steel for added strength.
