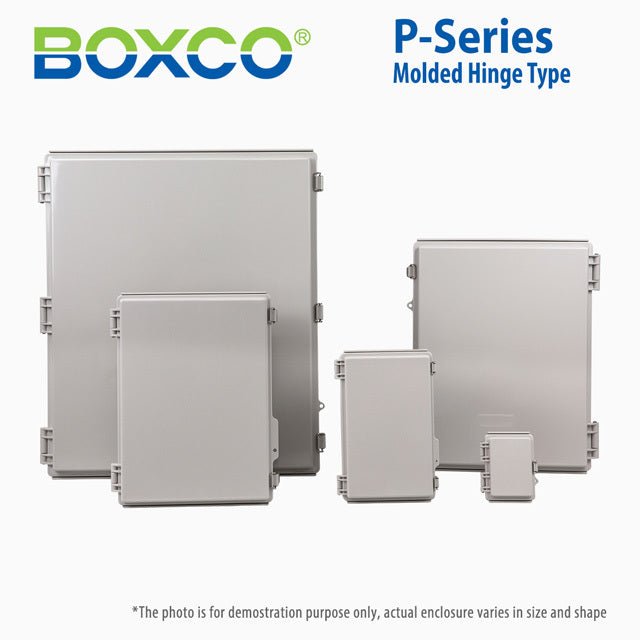

Boxco P-Series 13.78 x 17.72 x 6.30 Inches(350 x 450 x 160mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 13.78 x 17.72 x 6.30 Inches(350 x 450 x 160mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

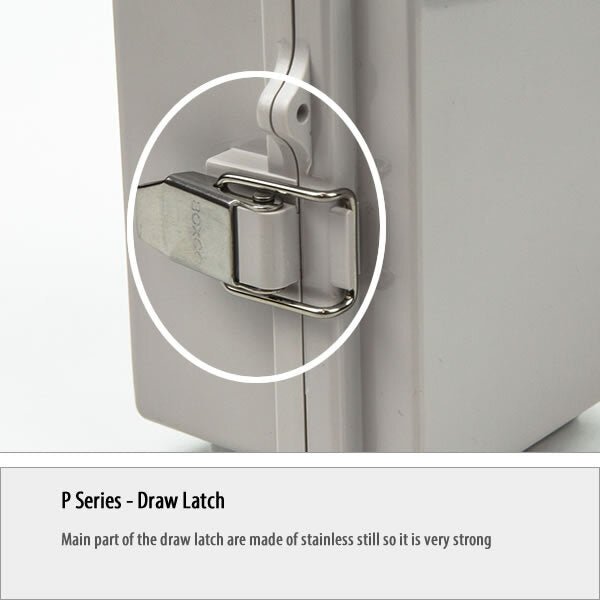

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

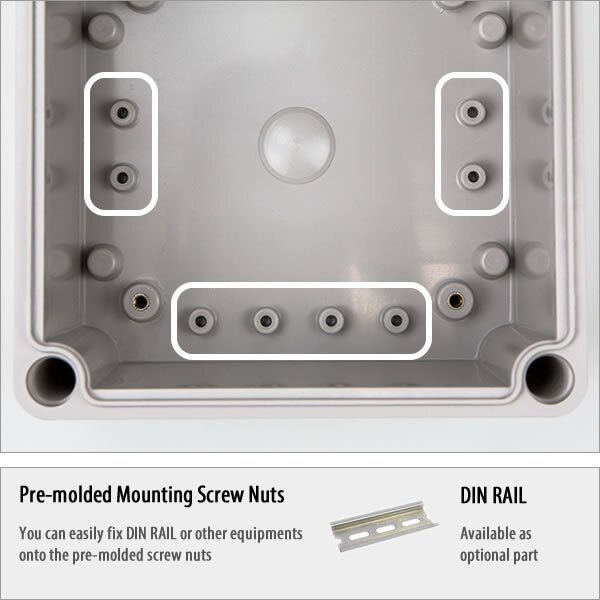

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

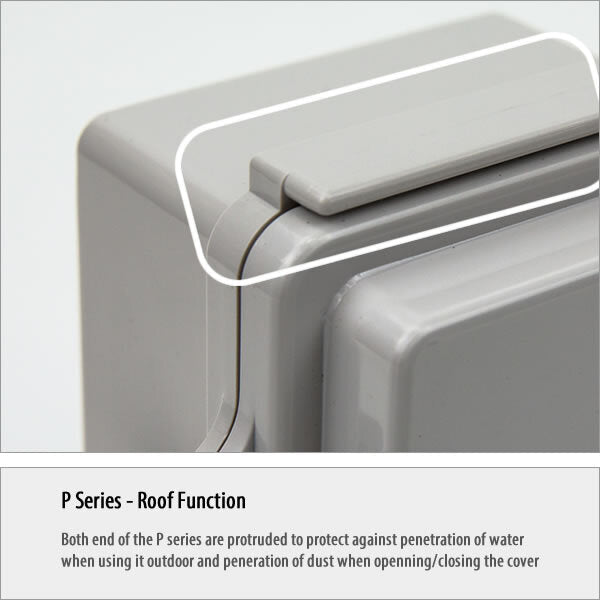

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

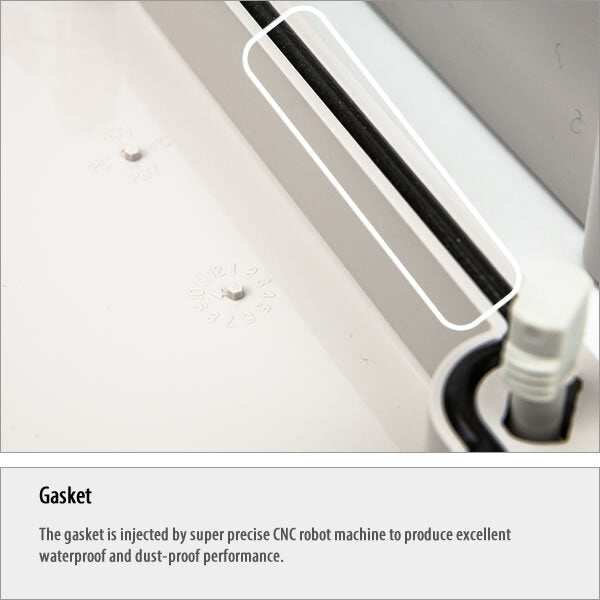

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

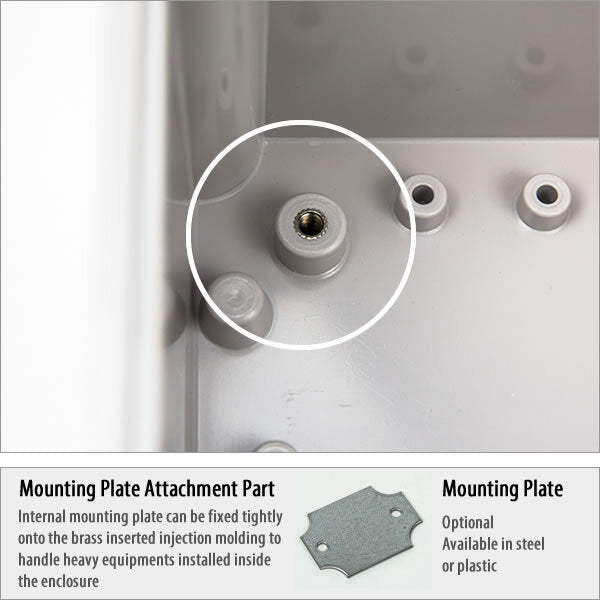

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

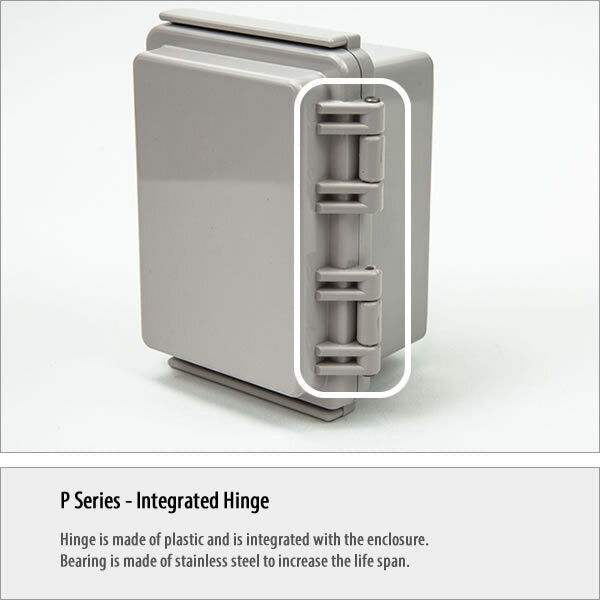

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length13.78 in
-
Width17.72 in
-
Height6.3 in
-
Weight6.2 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure suited for?
This enclosure is designed for protecting electrical or electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its impact-resistant polycarbonate construction, molded hinge and latch design, and internal mounting provisions make it a practical choice for control, instrumentation, and equipment protection applications.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. It also includes roof protection features and a precision-injected gasket intended to support waterproof and dust-proof performance.
What are the key size and material specifications for this model?
This model measures 13.78 x 17.72 x 6.30 inches, which corresponds to 350 x 450 x 160 mm. It is made from polycarbonate (PC) and comes with a grey cover. The listed product weight is 2.812 kg.
What protection ratings does this enclosure have?
This enclosure is rated IP67 and IK08. That means it is specified for strong protection against dust and water ingress and has a defined level of impact resistance for demanding environments.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 °C to 110 °C. That makes this model suitable for applications that face both low-temperature and high-temperature conditions within that stated range.
Does this enclosure support internal mounting hardware or accessories?
Yes. The description notes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment inside the enclosure. It also includes internal mounting plate attachment points with brass inserted injection molding for securing heavier installed equipment.
How does the molded hinge and latch design help compared with a basic enclosure body?
This model includes an integrated plastic hinge with a stainless steel bearing to improve hinge life, along with a stainless steel main latch component for strength. Compared with a simpler non-hinged or less reinforced design, these features are intended to improve repeated access durability and cover security.
