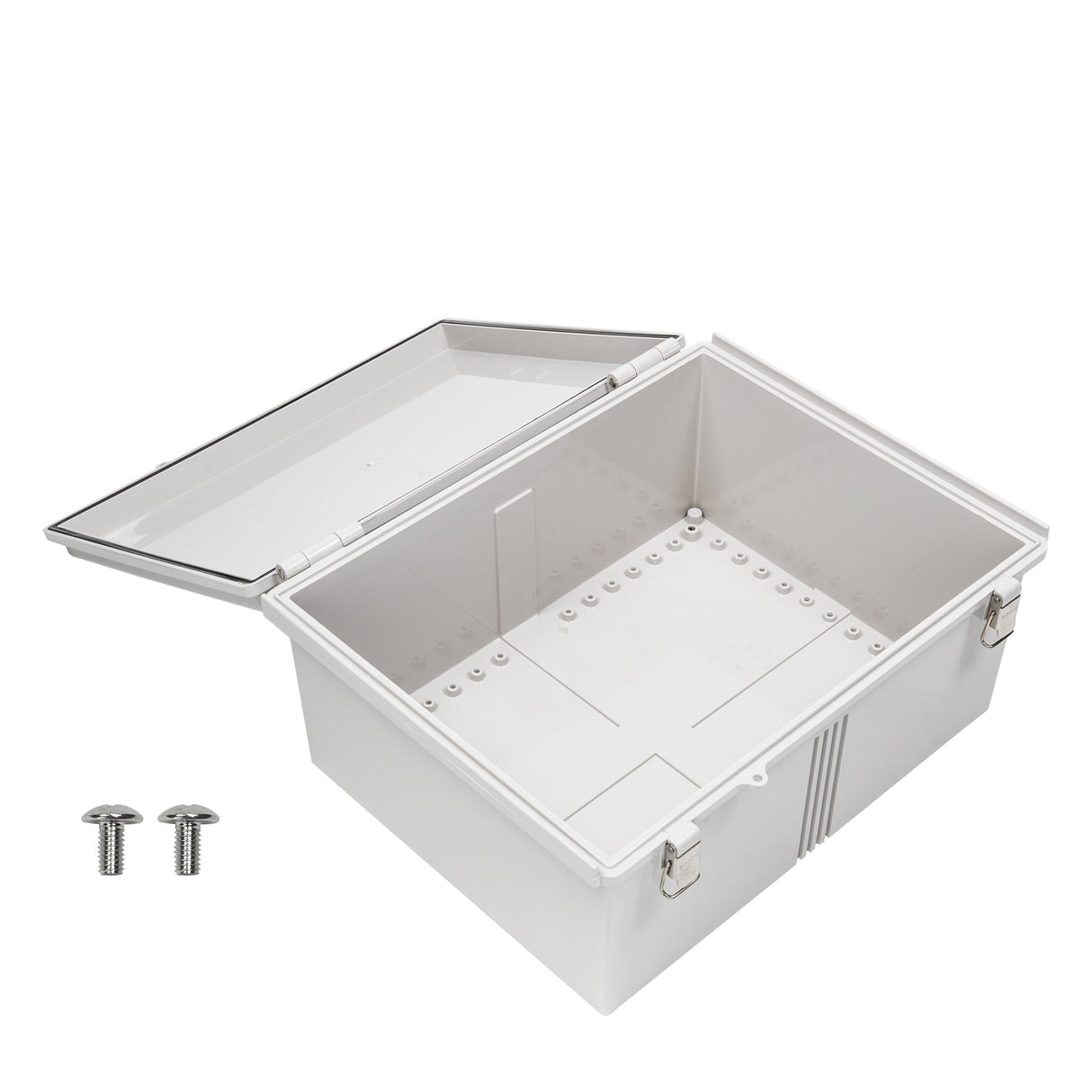

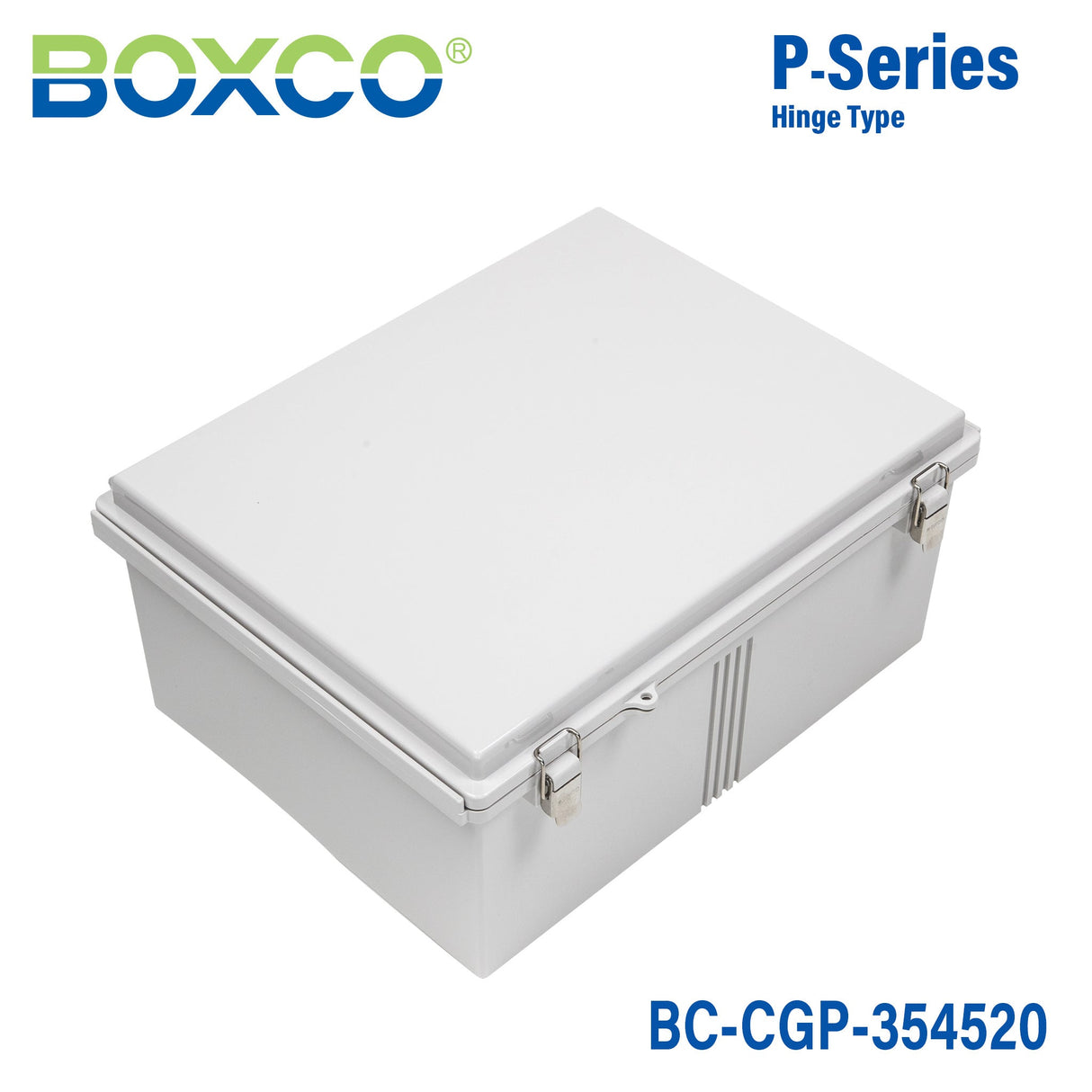

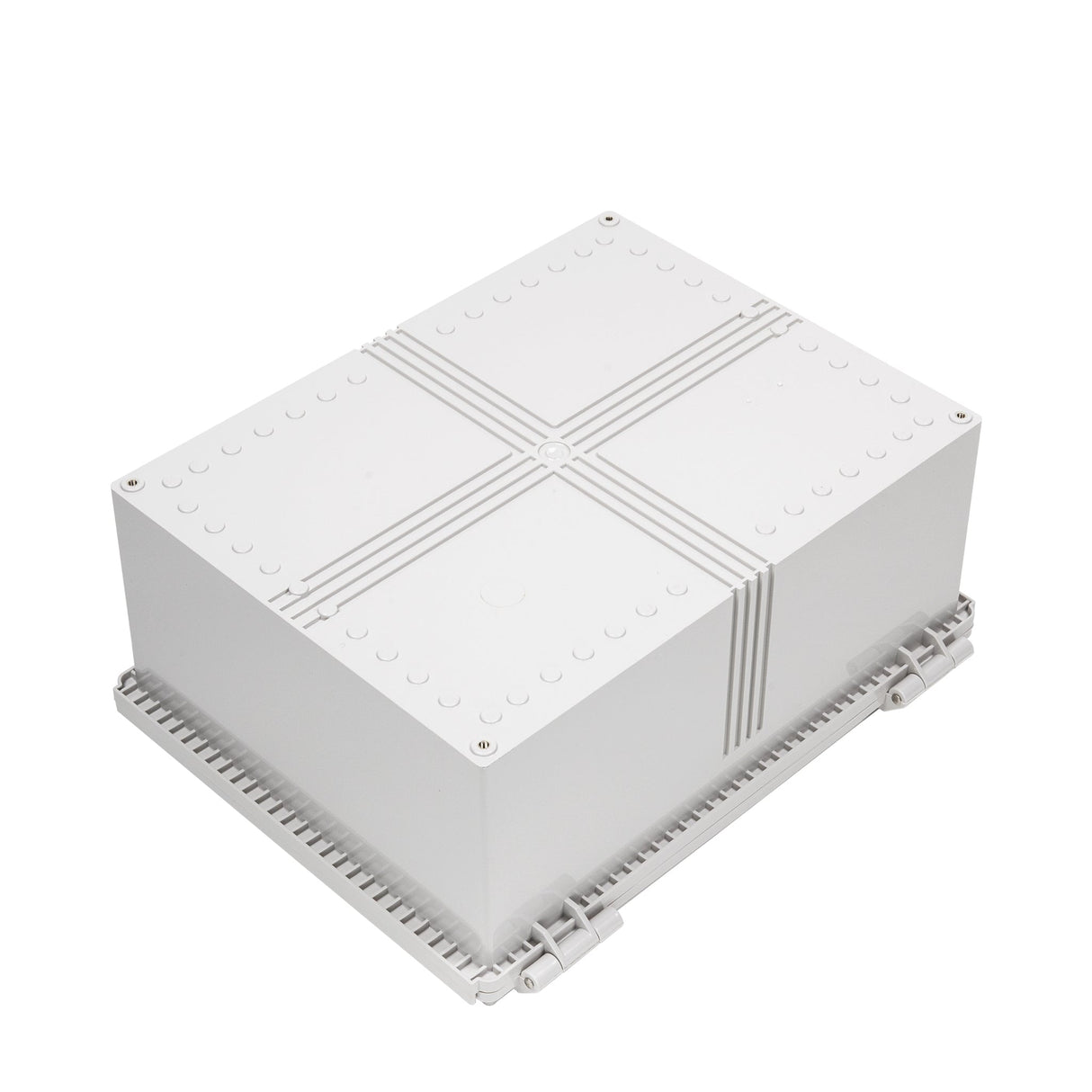

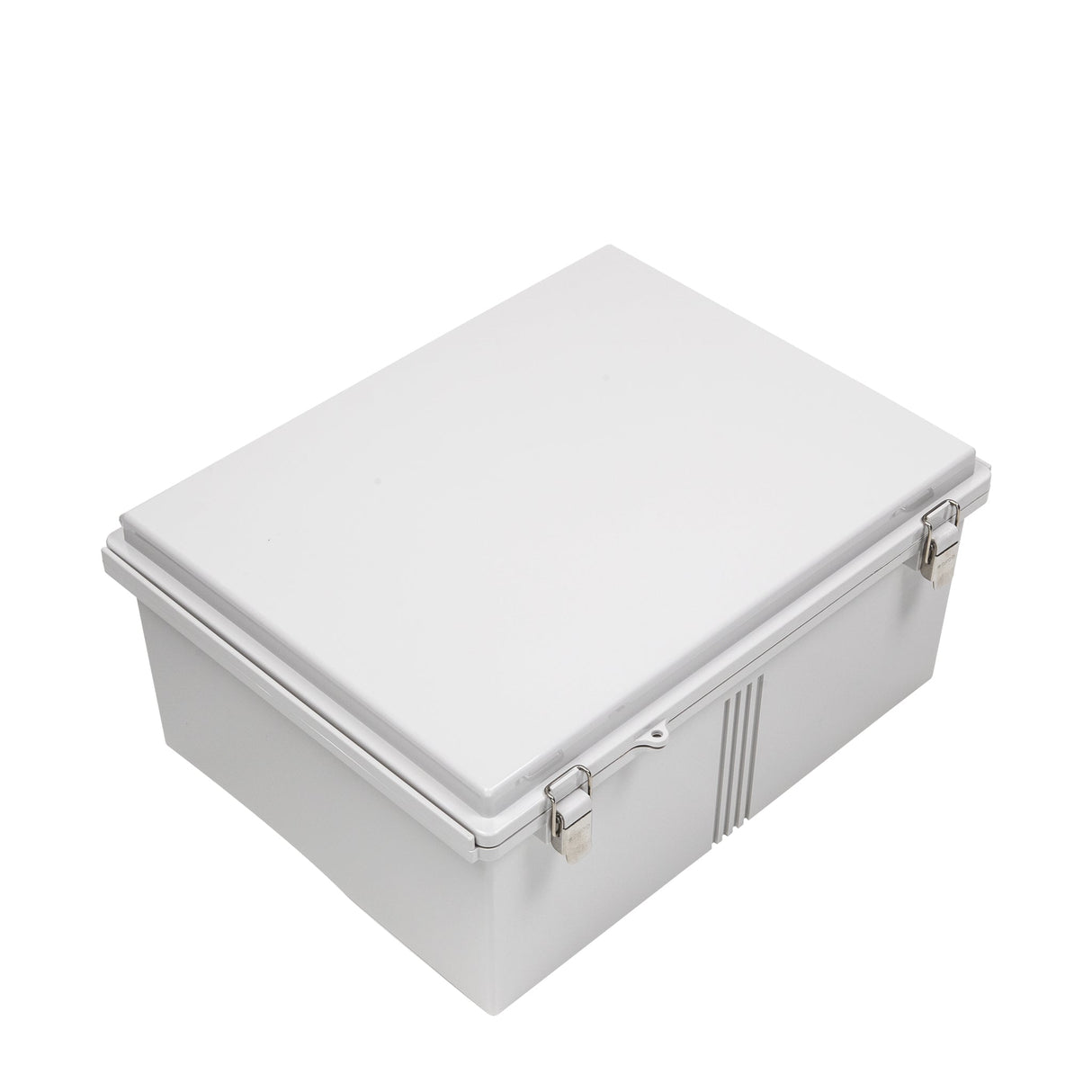

Boxco P-Series 13.78 x 17.72 x 7.87 Inches(350 x 450 x 200mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 13.78 x 17.72 x 7.87 Inches(350 x 450 x 200mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length13.78 in
-
Width17.72 in
-
Height7.87 in
-
Weight6.9 lb
::specification::
Frequently Asked Questions
What applications is the Boxco P-Series 350 x 450 x 200 mm plastic enclosure suited for?
This enclosure is intended for protecting electrical or electronic equipment that needs a durable non-metallic housing in indoor or outdoor environments. Its large format, molded hinge and latch design, and IP67 sealing make it a practical choice for industrial control, monitoring, and equipment protection applications where dust and water resistance matter.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. The design also includes roof protection features at both ends to help resist water penetration outdoors and reduce dust ingress when the cover is opened and closed.
What protection ratings does this model have?
This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also provides impact resistance appropriate for demanding industrial environments.
What material is this enclosure made from, and why does it matter?
This model is made from polycarbonate (PC) with a grey cover. The product description also notes anti-static material for protection of sensitive electronic instruments and high impact resistance to help prevent breakage during processing and use.
What is the operating temperature range for this enclosure?
The stated temperature range for this model is -40 degrees C to 110 degrees C. That range supports use in both very cold and high-heat environments where enclosure material performance is important.
What are the size and weight of this specific enclosure?
This Boxco P-Series model measures 13.78 x 17.72 x 7.87 inches, which corresponds to 350 x 450 x 200 mm. Its listed weight is 3.13 kg, making it a substantial enclosure for larger components or assemblies.
Does this enclosure support mounting internal components securely?
Yes. The description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Boxco notes these attachment points are designed to hold an internal mounting plate tightly for heavier installed equipment.
