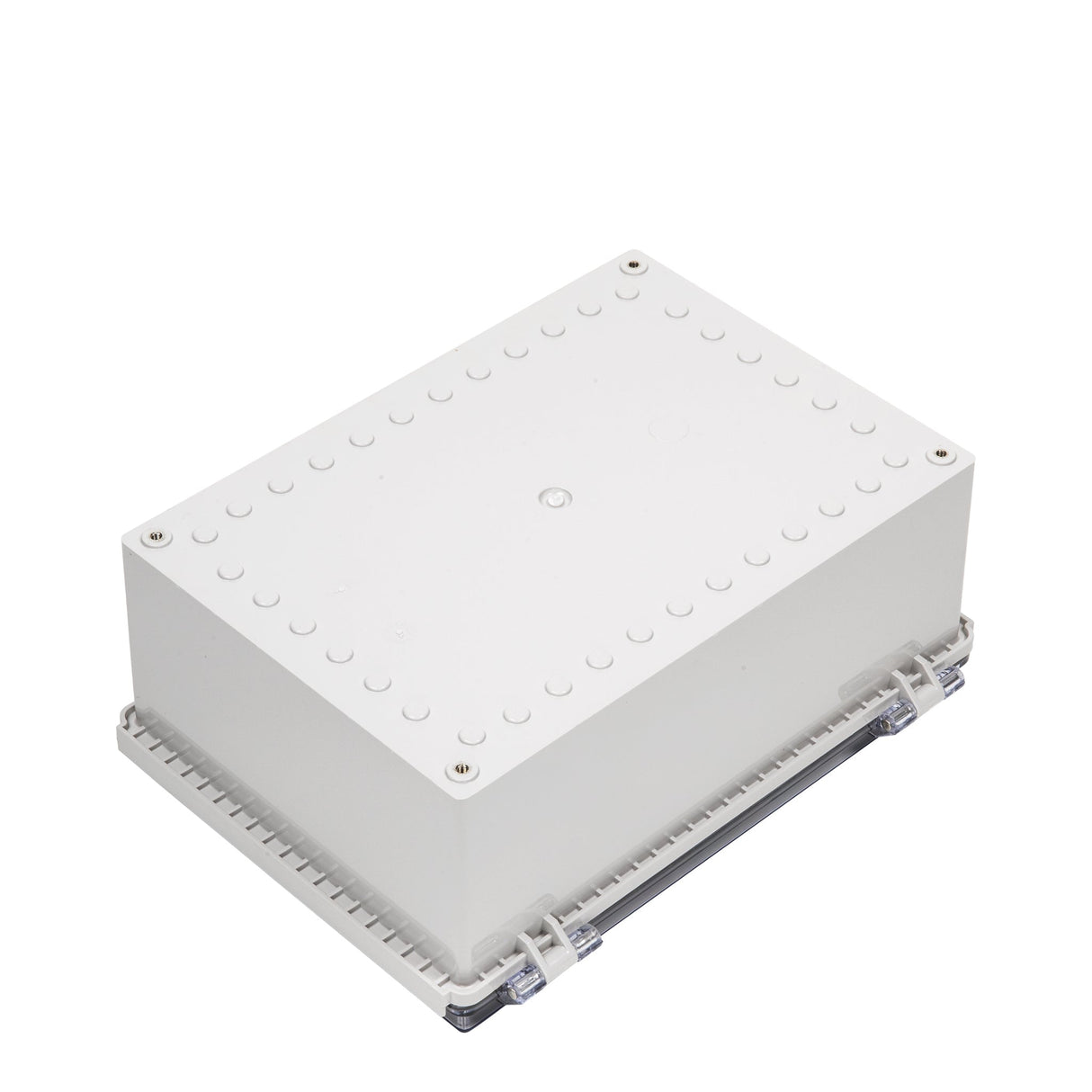

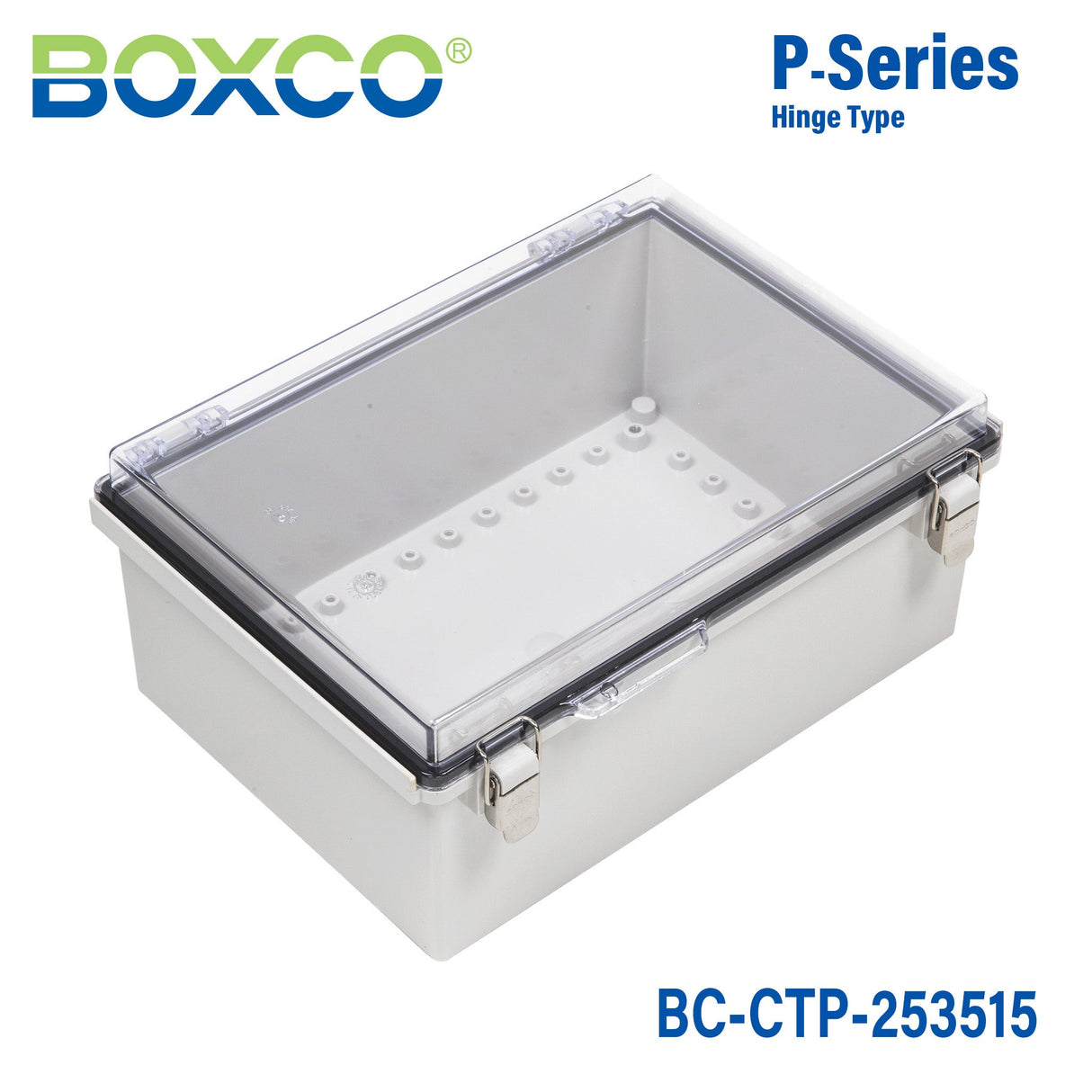

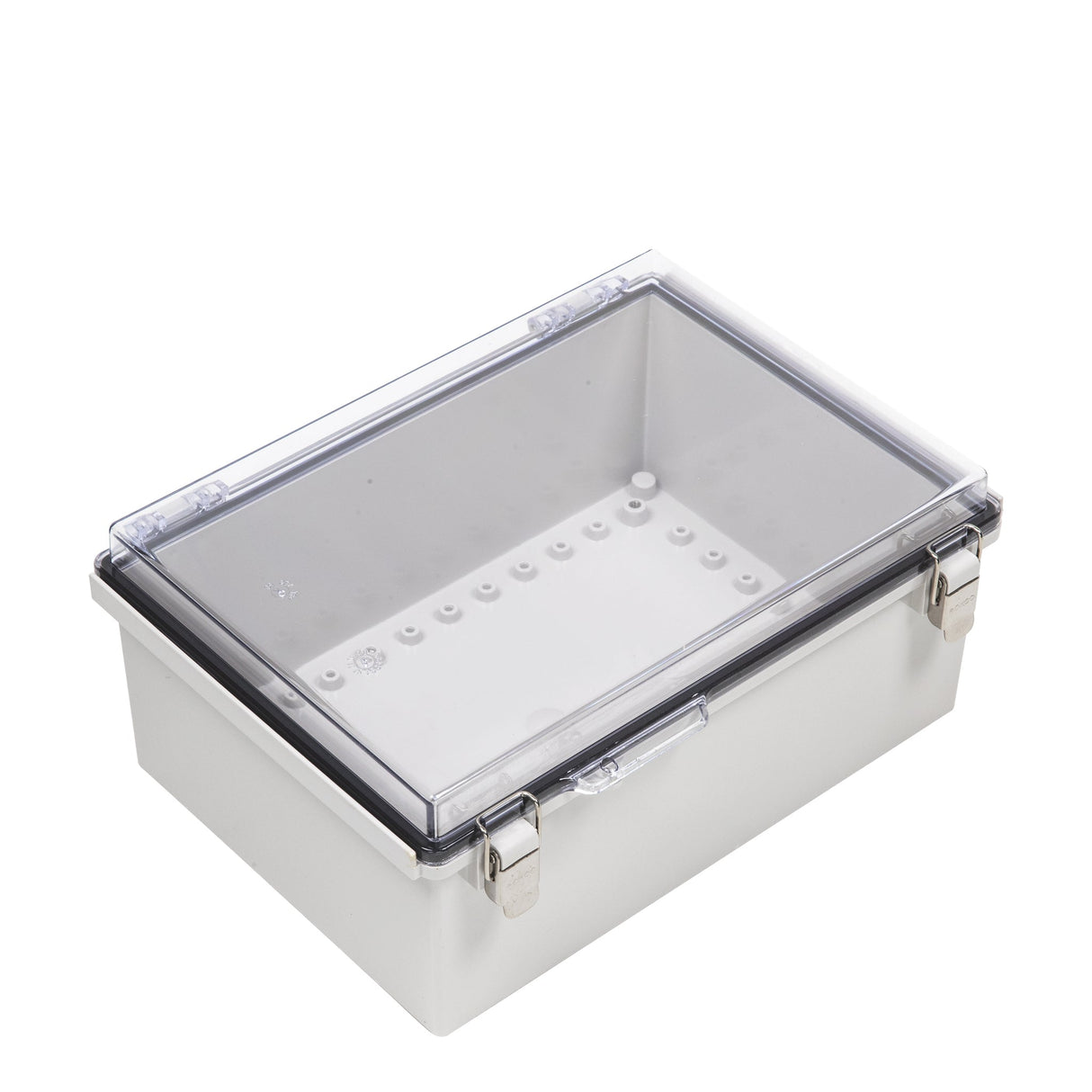

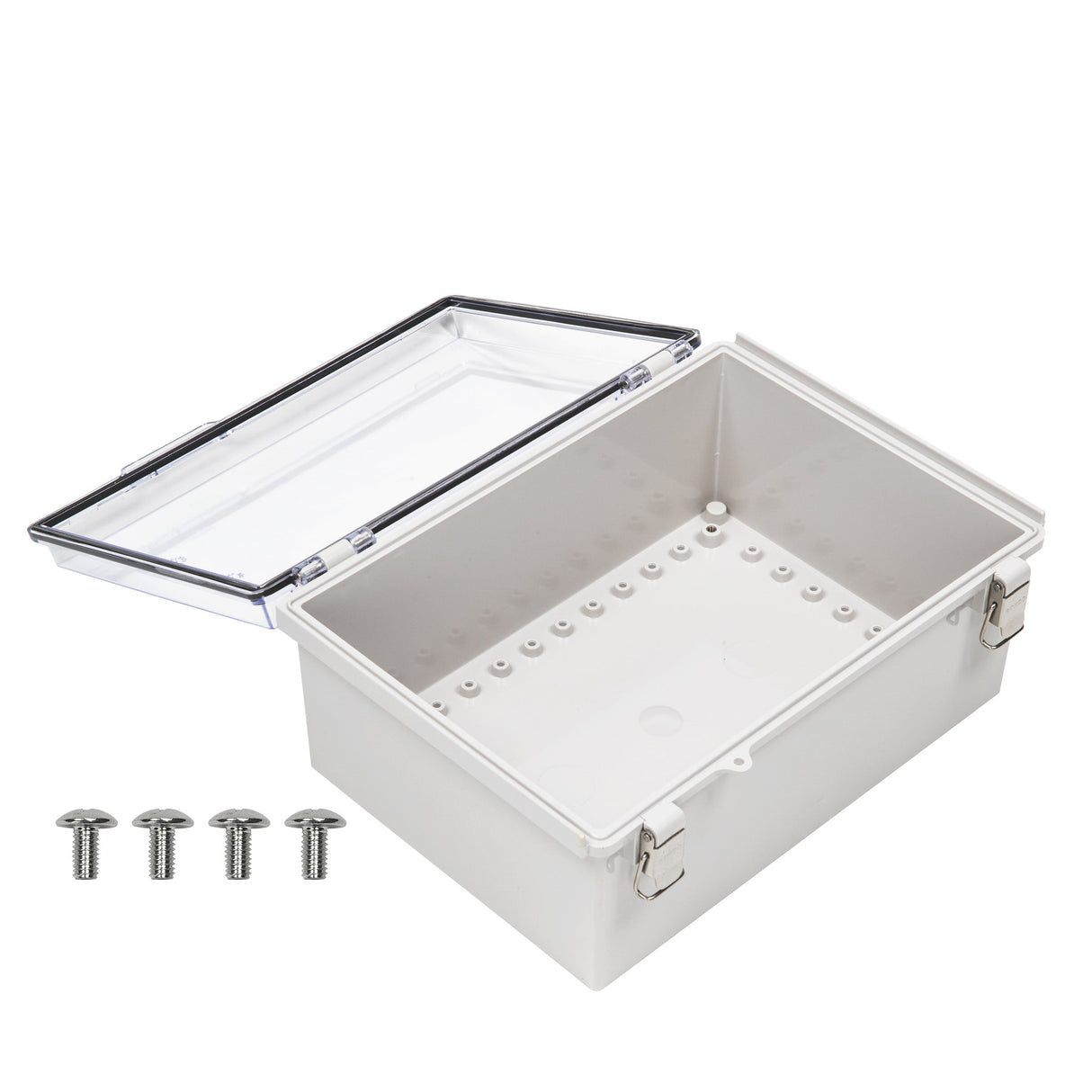

Boxco P-Series 9.84 x 13.78 x 5.91 Inches(250 x 350 x 150mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 9.84 x 13.78 x 5.91 Inches(250 x 350 x 150mm) Plasti...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length9.84 in
-
Width13.78 in
-
Height5.91 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure best suited for?
This enclosure is designed for protecting electrical and electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its transparent cover makes it useful when contents need to be visually checked without opening the enclosure. The anti-static material also makes it a practical option for housing sensitive electronic instruments.
How durable is this enclosure in harsh outdoor conditions?
This model is rated IP67 for water and dust protection and IK08 for impact resistance. It also includes an ultraviolet stabilizer to help reduce visible color change during long-term outdoor exposure. Boxco additionally describes the body material as high impact resistant for better durability during use and processing.
What are the material and cover type for this enclosure?
This model is made from polycarbonate (PC) and includes a transparent cover. The cover uses a molded hinge and latch design, and the hinge includes a stainless steel bearing to improve service life. The latch main body is also described as stainless steel for added strength.
What are the dimensions of this Boxco P-Series enclosure?
The enclosure measures 9.84 x 13.78 x 5.91 inches, which corresponds to 250 x 350 x 150 mm. This size provides a relatively large internal space compared with smaller general-purpose enclosures. Buyers evaluating fit should use these external dimensions as the starting reference for panel and equipment planning.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C up to 110 degrees C. That wide operating range makes it suitable for demanding environments with significant temperature variation. Buyers needing both cold-weather and elevated-temperature performance often look for this type of range.
Does this enclosure support mounting internal components securely?
Yes, the product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also has internal mounting plate attachment points with brass inserted injection molding to help support heavier installed equipment. These built-in features make it better suited for organized internal component layouts than a plain empty box.
What differentiates this P-Series enclosure from a basic plastic enclosure?
Compared with a basic plastic enclosure, this model combines IP67 and IK08 ratings, a transparent cover, integrated molded hinge and latch construction, UV-stabilized material, and anti-static properties. It also includes outdoor-oriented details such as roof protection geometry and a precision-injected gasket for sealing performance. Those features make it more specialized for industrial and outdoor protection than a simple utility box.
